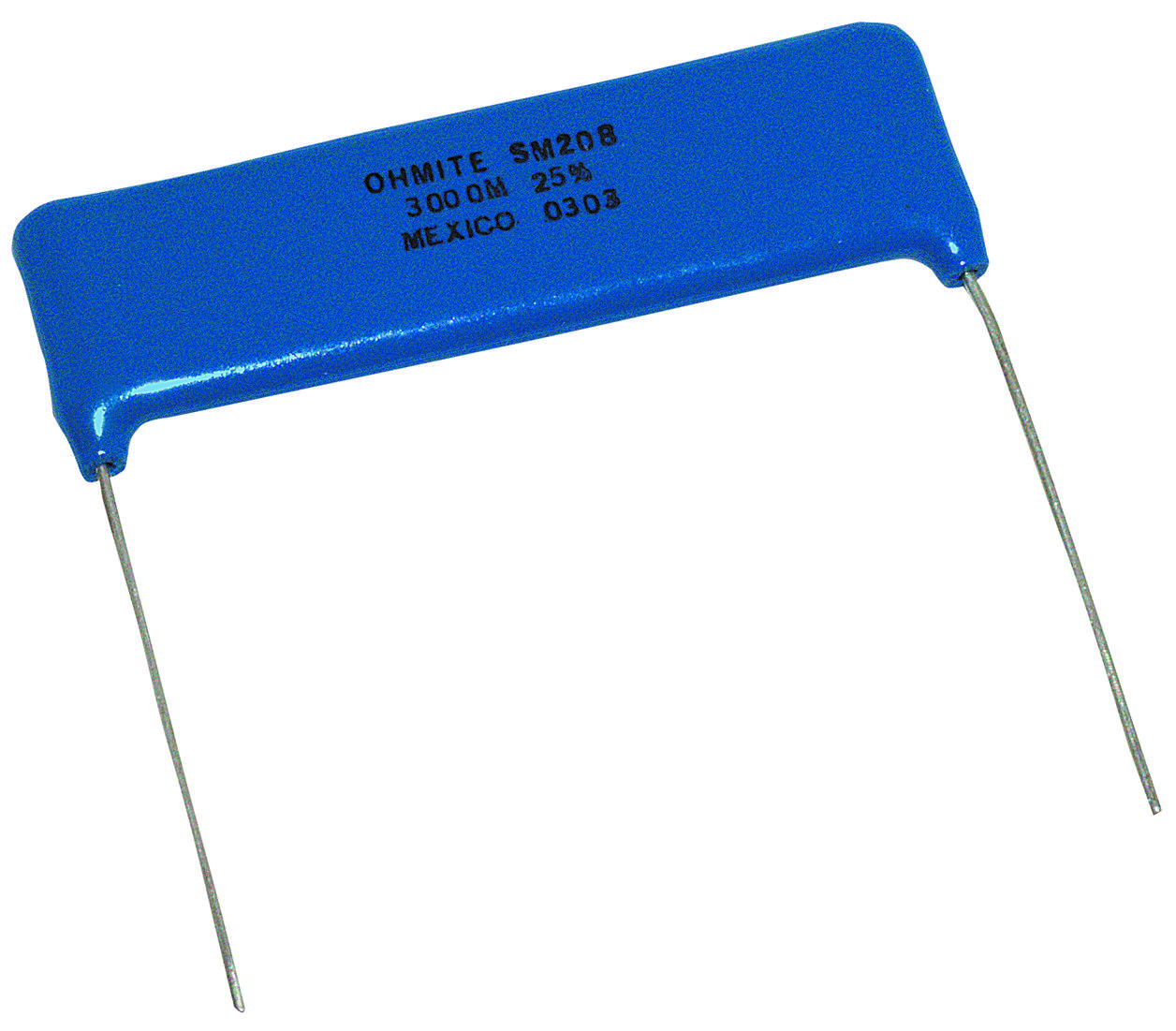

Ohmite SM104032005FE High-Voltage Resistor
The Slim-Mox series from Ohmite features precision thick film planar resistors designed for high-voltage applications. They offer stable performance across a wide resistance range from 100 ohms to 5 Gigaohms, with voltage ratings up to 25 kV. These resistors have power ratings from 0.25W to 5.5W and can operate within temperatures from -55°C to +110°C. They are constructed with thick film resistive elements on alumina with a high dielectric, low outgassing epoxy coating, and include low resistor noise. The design features non-inductive, radial terminals, providing a space-saving alternative to traditional high-voltage resistors. Typical applications include high-voltage power supplies, medical instrumentation, current pulse limiters, and ionization chambers.
Ohmite SM104032005FE High-Voltage Resistor Specifications:
- Resistance range: 100 Ohms to 5,000 M Ohms
- Voltage ratings: up to 25 KV
- Power ratings: 0.25W to 5.5W
- Operating temperature: -55°C to +110°C
- Resistive element: Thick film on Alumina
- Coating: High dielectric, low out-gassing epoxy
- Terminals: Radial, non-inductive
- Compliance: RoHS
- Coating Material: Silicone or Epoxy
- Tolerance: 0.5% to 20%; not all tolerances in all values
- Coefficient of Resistance: TCR tracking to 10ppm, VCR tracking to 1ppm
Buy the Ohmite SM104032005FE – Reliable High-Voltage Resistors for Industrial Applications
Order the Ohmite SM104032005FE high-voltage resistor online today and secure a high-performance, space-saving component capable of handling voltages up to 25 kV. Designed for demanding industrial and medical environments, these resistors feature a thick film on alumina construction, low noise, and non-inductive radial terminals. With power ratings up to 5.5W and temperature tolerance from -55°C to +110°C, they ensure consistent performance in high-voltage power supplies, ionization chambers, and pulse limiters. Take advantage of fast delivery and expert support in your online purchase.
Buy Ohmite SM104032005FE high-voltage resistors now and experience unmatched reliability and performance in critical industrial and medical applications.
Frequently Asked Questions
Where can I buy Ohmite SM104032005FE?
You can click on the BUY or RFQ button to purchase SM104032005FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SM104032005FE?
You can download the SM104032005FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of SM104032005FE?
Ohmite
