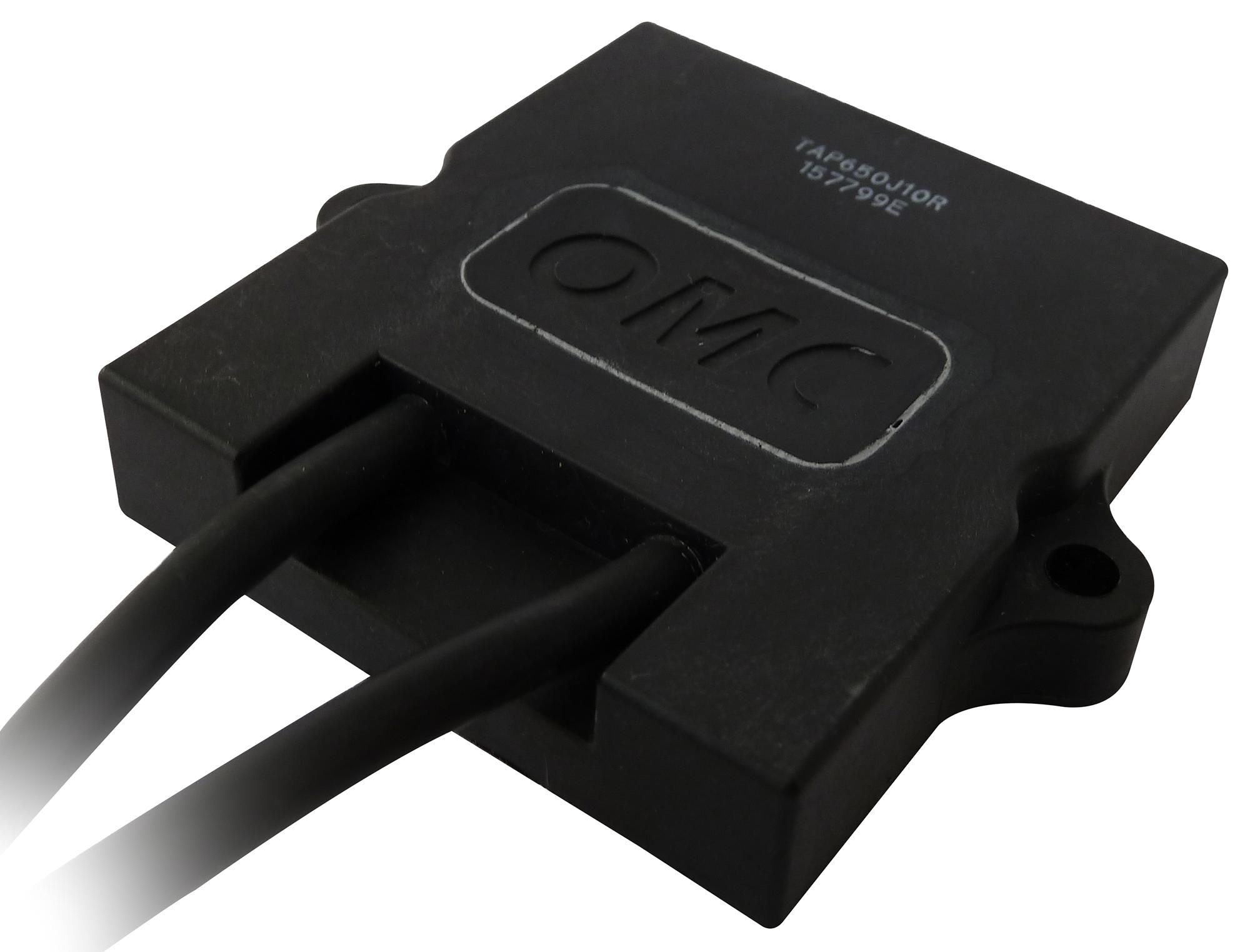

Ohmite TAP650J100E High Power Resistor
The TAP650J100E is a high-power, low profile resistor designed for demanding industrial applications such as variable speed drives, motor control, and robotics. Featuring a ceramic metalized construction with film on the bottom for efficient heat transfer, it offers high insulation resistance (CTI 600), high dielectric strength, and partial discharge capability. Rated at 650W at 85°C, it supports peak currents up to 1500A, withstands voltages up to 12kV, and is housed in a resin-filled epoxy casing for durability. Its stable resistance element exhibits low inductance, capacitance, and excellent thermal performance, making it suitable for pulse and high wattage loads.
Ohmite TAP650J100E High Power Resistor Specifications:
- Power Rating: 650W at 85°C bottom case temperature
- Peak Current: up to 1,500A depending on pulse length and frequency
- Voltage: up to 12kVrms with special request, 6kVrms standard
- Resistance Range: 0.25 to 1MQ (others upon request)
- Resistance Tolerance: ±10%, ±20%
- Temperature Coefficient: +150 ppm/°C
- Operating Temperature: -55°C to +150°C
- Insulation Resistance: Minimum 10 GΩ at 500V
- Partial Discharge: 4kVrms, <10 pC, up to 7kV on request
- Capacitance: 110 pF (at base plate), 40 pF (parallel)
- Inductance: approximately 80nH (typical)
- Dimensions: Length 2.606-2.626 inches, Width 0.767-0.807 inches, Height 0.492-0.532 inches
- Housing Material: UL94-VO compliant epoxy resin
- Cooling: Proper heat sinking required, recommended thermal transfer resistance below 0.117 K/W
- Vibration / Storage: withstands 2-500Hz/10g, storage at 0-85°C and 80% RH
- Compliance: RoHS
Buy the Ohmite TAP650J100E – Reliable High-Power Resistor for Industrial Applications
Order the Ohmite TAP650J100E high-power resistor online to ensure robust performance in industrial systems. Designed for demanding environments, it offers exceptional heat dissipation, high voltage and current capabilities, and reliable operation under pulse loads. Perfect for motor drives, robotics, and power supplies, this resistor withstands high temperatures and electrical stresses for long-term durability. Purchase now to enhance your power design with trusted quality, quick delivery, and expert support, ensuring your project’s success without compromise.
Get Ohmite TAP650J100E today—built for precision, high wattage capacity, and long-lasting durability in power control systems.
Frequently Asked Questions
Where can I buy Ohmite TAP650J100E?
You can click on the BUY or RFQ button to purchase TAP650J100E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TAP650J100E?
You can download the TAP650J100E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TAP650J100E?
Ohmite
