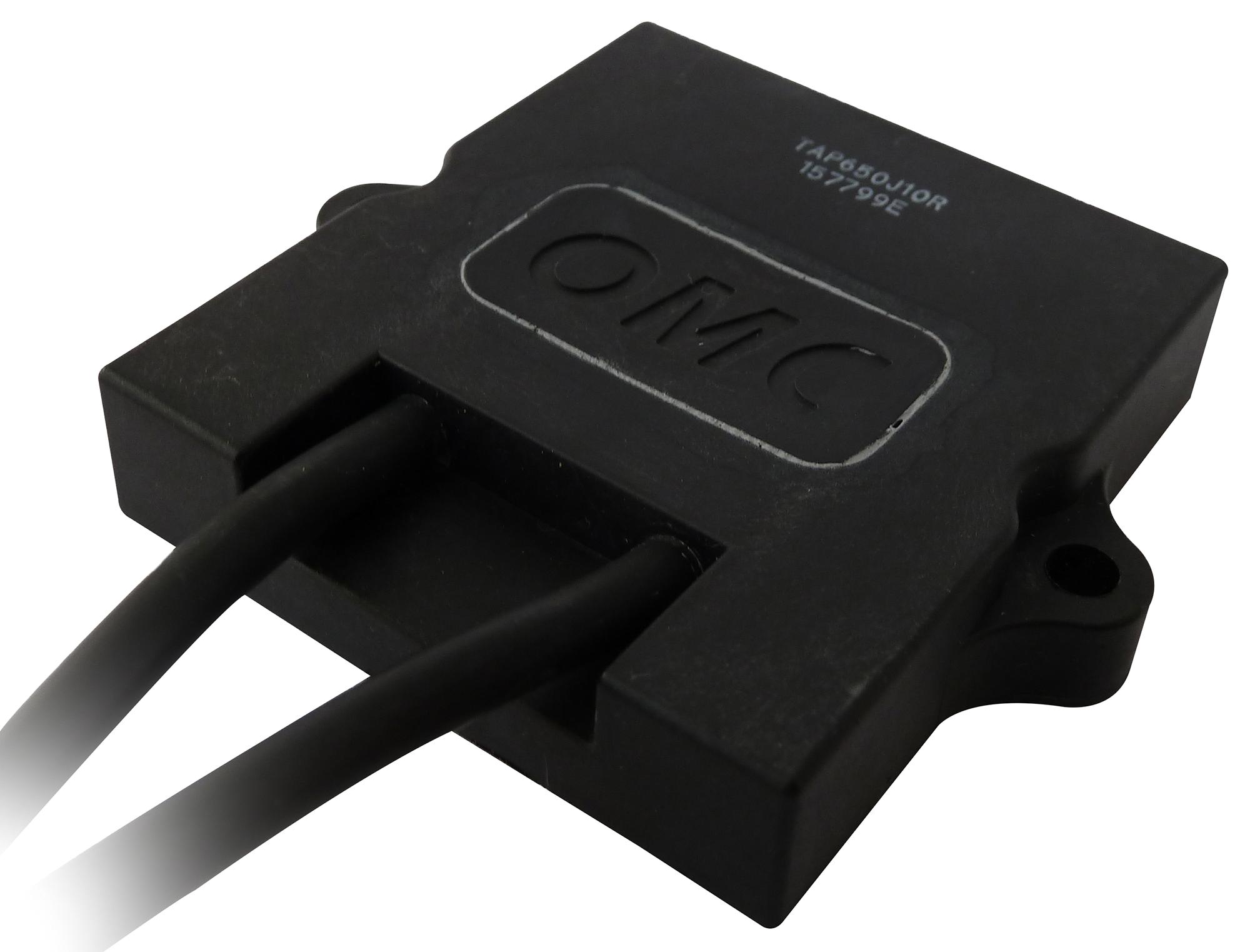

Ohmite TAP650J2K5E High-power industrial resistor
The TAPG50 Series high-power, low-profile resistors are designed for industrial applications such as variable speed drives, control devices, robotics, and motor control. Made from high-purity ceramic metalized with film for optimal heat transfer, they feature a special resin-filled epoxy casing providing high insulation resistance (CTI 600), dielectric strength, and partial discharge capabilities. These resistors handle power ratings of up to 650W at 85°C, with peak currents reaching 1,500A, and are suitable for high pulse loads, offering stability, low inductance, and temperature coefficients of +150 ppm/°C. They are RoHS compliant and designed for proper heatsinking.
Ohmite TAP650J2K5E High-power industrial resistor Specifications:
- Power: 650W at 85°C bottom case temperature
- Resistance: 0.25 to 1 MΩ, tolerance: 10% or 20%
- Peak current: up to 1,500A depending on pulse length
- Voltage: 6kV RMS (standard), up to 12kV RMS upon request
- Partial discharge: 4kVRMS, <10 pC, up to 7kV upon request
- Insulation resistance: ≥10 GΩ at 500V
- Temperature coefficient: +150 ppm/°C
- Operating temperature: -55°C to +150°C
- Dimensions: approximately 2.6
- 0.767
- 2.244
- 56.5
- 25.5
- 12.5
- 19.5
- 0.492
- 0.559
- 0.683
- 0.8
- 0.019
- 0.032
- 2.296
- 57
- 56.8
- 57.2
- 250
- 255
- 8.55
- 0.117
- 85
- 150
- 2.606
- 2.626
- 0.563
- 0.643
- 0.816
- 0.979
- 0.014
- 0.022
- 127.5
- 105.9
- 4.4
- 6
- 9.5
- 19.5
- 20.5
- 57
- 58
- 57.2
- 85
- 125
- 470
- 560
- 250
- 255
- 8.55
- 0.117
- 6000
- 12000
- 4
- 10
- 650
- 1
- 500
- 85
- 150
- 3
- 300
- 3000
- Material: High-purity ceramic metalized with film, resin-filled epoxy casing
- Climatic Conditions: Humidity steady state 56 days/40°C/95%, Temp. cycling -55°C to +125°C, Vibration 2-500Hz/10g, Load life 3,000 hours
- Connections: Standard 250mm cable with optional custom lengths, M4 mounting screws
- Standards: RoHS compliant, UL94-VO UL recognition
Buy the OHMITE TAP650J2K5E – Reliable High-Power Resistor for Industrial Applications
Purchase the OHMITE TAP650J2K5E high-power resistor online today. Engineered for stability, efficiency, and durability in demanding industrial applications like motor drives, robotics, and power supplies. With a power rating of 650W at 85°C, peak currents up to 1,500A, and high insulation resistance, this resistor ensures reliable performance. Its high-quality ceramic construction and special casing make installation with proper heatsinking essential. Order now to enhance your control systems with this high-performance, RoHS-compliant resistor designed for long-term reliability.
Get OHMITE TAP650J2K5E today—built for precision and long-lasting durability in power control and industrial environments.
Frequently Asked Questions
Where can I buy Ohmite TAP650J2K5E?
You can click on the BUY or RFQ button to purchase TAP650J2K5E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TAP650J2K5E?
You can download the TAP650J2K5E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TAP650J2K5E?
Ohmite
