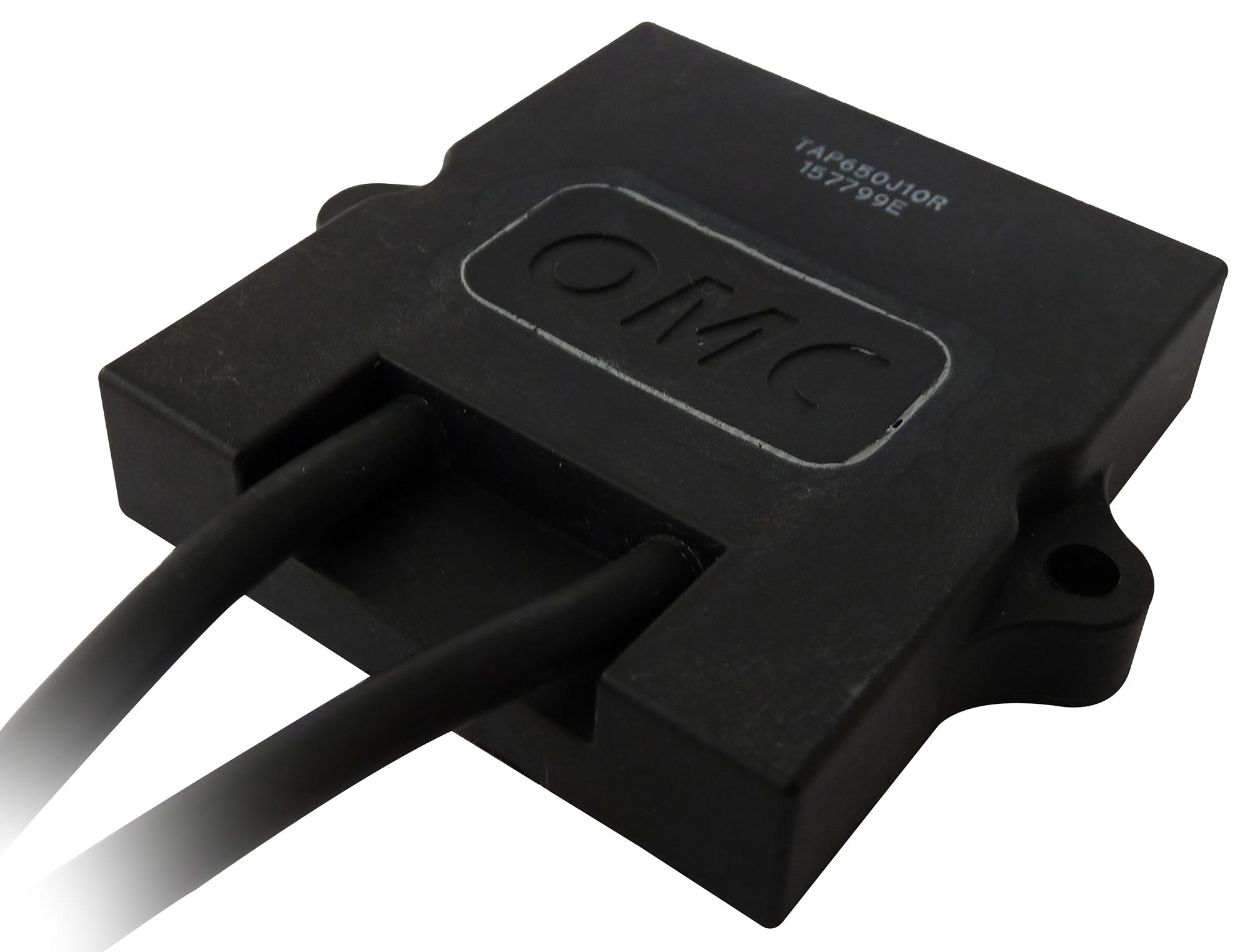

Ohmite TAP650J5K0E High Power Resistor
The TAP650J5K0E is a high-power resistor designed for industrial applications such as variable speed drives, power supplies, robotics, and motor control. It features a low-profile, ceramic-metalized construction with film on the bottom for superior heat transfer and discharge. Encapsulated in a resin-filled epoxy casing, it offers high insulation resistance, dielectric strength, and partial discharge capability. With a power rating of 650W at 85°C, resistance values ranging from 0.252 to 1 MΩ, and a maximum working voltage of 5,000VDC, this resistor performs reliably under pulse and high-temperature conditions, making it suitable for demanding industrial environments.
Ohmite TAP650J5K0E High Power Resistor Specifications:
- Power: 650W at 85°C bottom case temperature
- Resistance Values: 0.252 to 1 MΩ
- Resistance Tolerance: +5% to +10%
- Maximum Working Voltage: 5,000VDC
- Peak Current: Up to 1,500A depending on pulse length and frequency
- Temperature Coefficient: +150 ppm/°C
- Operating Temperature: -55°C to +150°C (resistor body), -40°C to +120°C (standard cables)
- Insulation Resistance: 10 GΩ at 500V
- Partial Discharge: <10 pC at 4kV
- Inductance: 80nH
- Capacitance: 110 pF
- Housing Material: UL94-VO-compliant
- Mounting Torque: 1.8 Nm (M4 screws)
- Surface Roughness: <6.4µm, Flatness: <0.05mm
- Thermal Resistance: 0.117°K/W (8.55 W/°K)
- Maximum Base Plate Temperature Monitoring Recommended for Power Rating
- Standard Connections: 250mm cable, custom lengths available
- RoHS Compliant: Yes
Buy the Omnitech TAP650J5K0E – Reliable High-Power Resistor for Industrial Applications
Order the Omnitech TAP650J5K0E online today to secure a high-power resistor with exceptional heat transfer, resistance stability, and electrical performance. Designed for industrial environments, this 650W resistor offers high insulation resistance, low inductance, and pulse load stability. It is suitable for use in variable speed drives, power supplies, robotics, and motor control systems. Equipped with robust construction and compliant with RoHS standards, buying this resistor online ensures quick delivery, technical support, and confidence in each component's quality and durability for critical power applications.
Buy Omnitech TAP650J5K0E now and experience unmatched reliability and high performance in your industrial power control and resistor solutions.
Frequently Asked Questions
Where can I buy Ohmite TAP650J5K0E?
You can click on the BUY or RFQ button to purchase TAP650J5K0E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TAP650J5K0E?
You can download the TAP650J5K0E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TAP650J5K0E?
Ohmite
