Ohmite TGA003 Three Phase EMI Filter
The Ohmite TG Series EMI filters are three-phase general-purpose devices designed to reduce electromagnetic interference across a broad range of industrial applications. Featuring a neutral connection point, these compact filters operate at 50/60Hz with a maximum voltage of 440 or 520VAC, currents from 1A to 150A, and flammability rated UL 94 V-0. They are suitable for CNC machines, electronic equipment, rectifiers, and UPS/inverters, ensuring EMI compliance and optimal performance in demanding environments.
Ohmite TGA003 Three Phase EMI Filter Specifications:
- Maximum Continuous Operating Voltage: 440 or 520VAC
- Operating Frequency: 50/60Hz
- Current Ratings: 1A to 150A @40°C
- High Potential Test Voltage: 2660Vdc to G, 1950Vdc to L for 1 min.
- Overload Capability: 135% of rated current for 15 min
- Temperature Range: -25°C to +85°C
- Climatic Category: 25/85/21
- Flammability: UL 94 V-0
- Dimensions: varies according to current rating, detailed dimensions provided in datasheet
- Mounting: Chassis mounting with M5 to M10 termination options
- Design conforms to UL60939-3, CSA 22.2 No.8-13, IEC 60939
- Weight varies from 0.7 kg to 9 kg depending on current rating

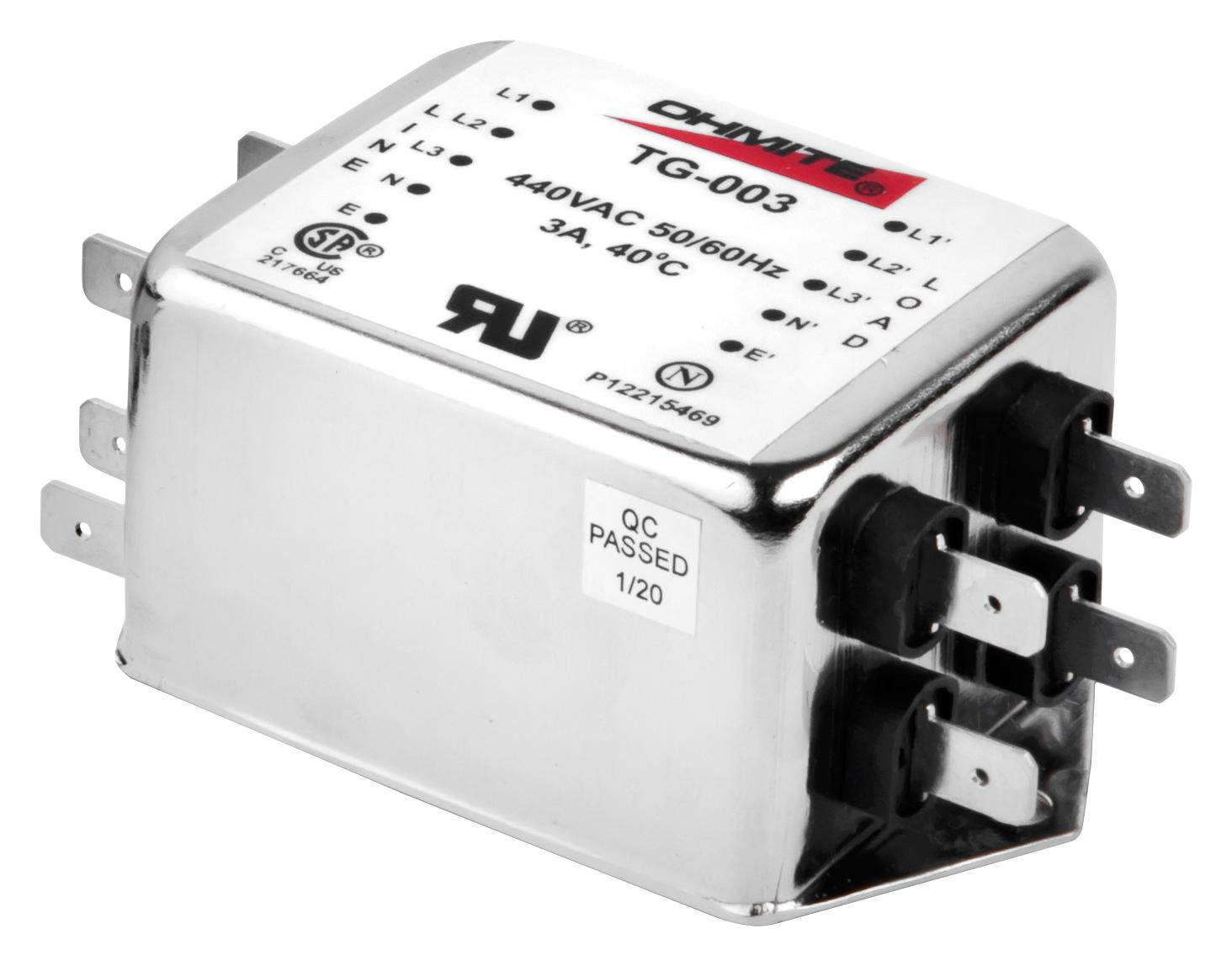

Buy the Ohmite Series TG EMI Filter: TGA003
Purchase the Ohmite Series TG three-phase EMI filter TGA003 online today and experience superior electromagnetic interference suppression. Designed for industrial environments, this filter operates at 440VAC with a current rating of 3A, featuring a compact footprint and reliable performance. Ideal for CNC machines, converters, and UPS systems, it ensures compliance with EMI standards while providing durable operation with UL-rated flammability. Secure your project’s EMI mitigation by ordering online now for fast delivery and expert support.
Order your Ohmite Series TG EMI Filter TGA003 today and ensure reliable electromagnetic interference reduction for your industrial equipment.
Frequently Asked Questions
Where can I buy Ohmite TGA003?
You can click on the BUY or RFQ button to purchase TGA003 from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGA003?
You can download the TGA003 datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGA003?
Ohmite
