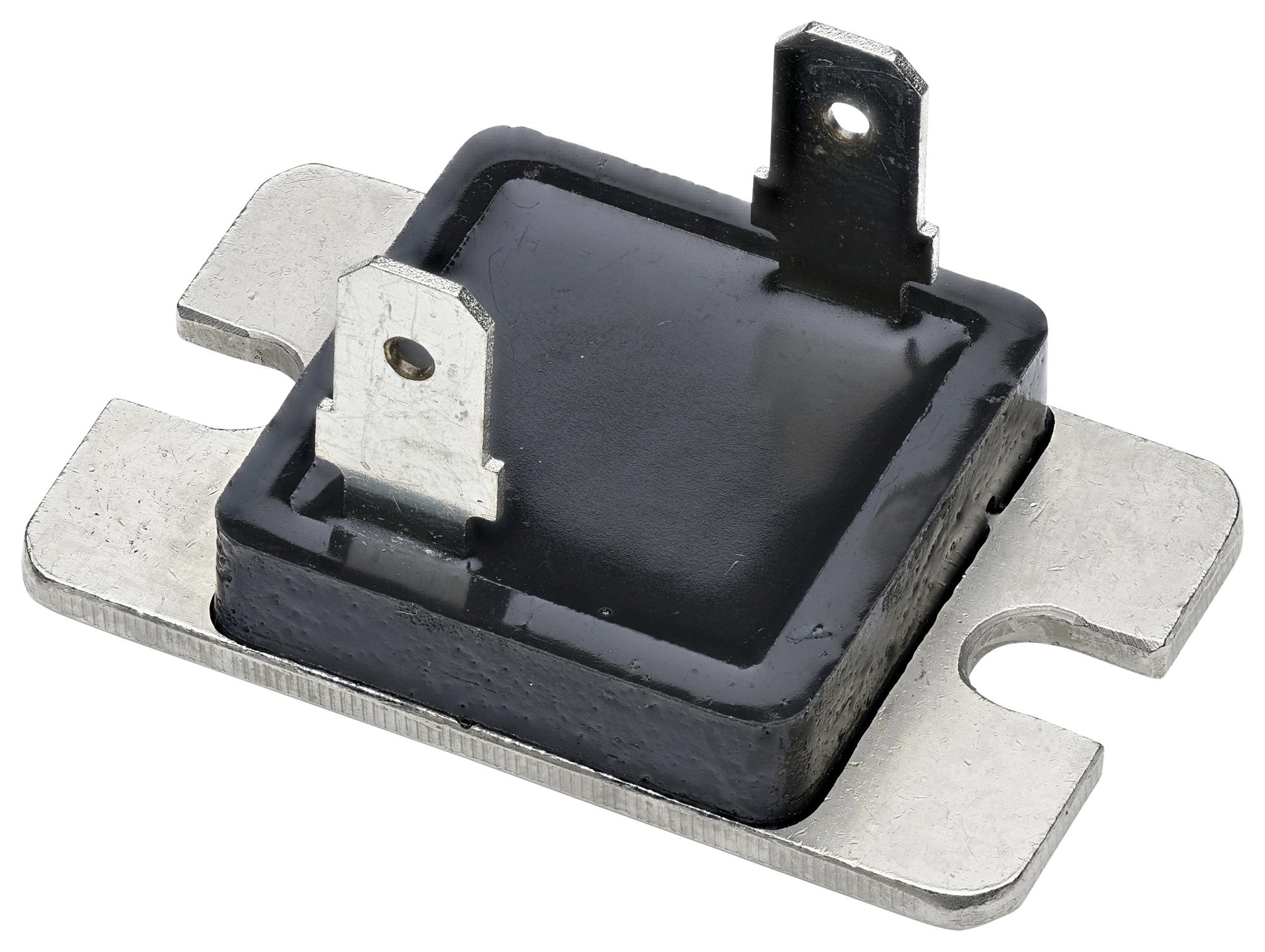

Ohmite TGHDV1R00JE High Power Resistor
The TGHD Series high power, non-inductive chassis mounting resistors are designed for demanding industrial applications such as harmonic filters, snubber resistors, and power supplies. These 100W resistors feature air-cooled heat sinks or water cooling options for effective heat dissipation, with resistance ranges from 0.10 to 51kΩ. They offer high insulation resistance, withstand voltages up to 5000 VAC, and operate from -55°C to +155°C. Suitable for vibration-prone environments, they are ideal for high frequency amplifiers, surge protection, and dummy loads, delivering reliable performance in challenging conditions.
Ohmite TGHDV1R00JE High Power Resistor Specifications:
- Rated Power: 100W at flange temperature -55 to +100°C (wire leads) or -55 to +25°C (quick connect)
- Resistance Range: 0.10 to 51kΩ
- Resistance Tolerance: 35% (J)
- Temperature Coefficient (TCR): 100 ppm/K (A) for -55 to +155°C
- Max. Applied Voltage: 1000V, Withstanding Voltage: 5000VAC for 60 seconds
- Flange Temperature Range: -55°C to +155°C
- Insulation Resistance: Over 1000MQ between terminals and flange
- Construction: Thick film substrate, epoxy on terminals, ceramic insulators
- Heat Resistance: 0.5°C/W (wire leads) or 1.1°C/W (quick connect)
- Mechanical: Torque Mounting 1.6Nm max, recommended 1.0Nm, weight 14g
Buy the Ohmite TGHDV1R00JE – Reliable High Power Resistor for Industrial Applications
Purchase the Ohmite TGHDV1R00JE high power resistor online now to ensure reliable performance in demanding industrial applications. Designed for power supplies, harmonic filters, surge protection, and high frequency amplifiers, this 100W non-inductive resistor features wide resistance options from 0.10 to 51kΩ. Its robust construction withstands voltages up to 5000VAC and operates across -55°C to +155°C, offering exceptional heat dissipation, vibration resistance, and insulation. Get yours today for superior quality and dependable operation in tough environments.
Order your Ohmite Series TGHDV1R00JE high power resistor today and enhance your industrial projects with dependable, high-capacity performance for demanding environments.
Frequently Asked Questions
Where can I buy Ohmite TGHDV1R00JE?
You can click on the BUY or RFQ button to purchase TGHDV1R00JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHDV1R00JE?
You can download the TGHDV1R00JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHDV1R00JE?
Ohmite
