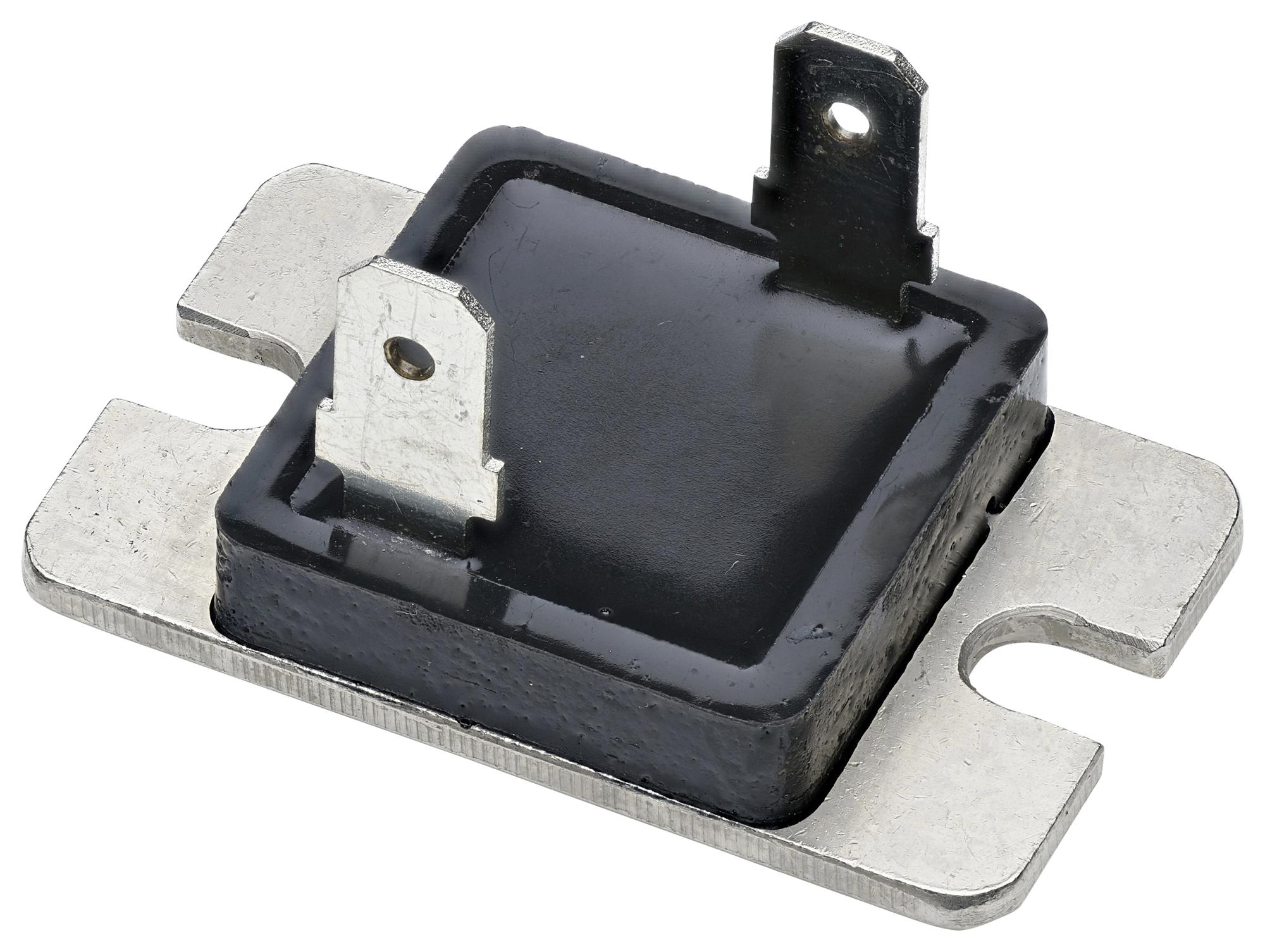

Ohmite TGHDV270RJE High Power Resistor
The TGHD Series high power, chassis-mounted non-inductive resistors are designed for demanding applications requiring high wattage ratings up to 100W and excellent heat dissipation. Available with quick connect tabs or fly leads, these air-cooled resistors are suitable for harmonic filtering, snubber circuits, gate resistors, and power supplies. They feature a resistance range of 0.10 to 51kΩ, operate from -55°C to +155°C, and withstand voltages up to 1000V with UL94V-0 flammability rating. Compact, vibration-proof, and RoHS compliant, they ensure reliable performance in industrial electronics.
Ohmite TGHDV270RJE High Power Resistor Specifications:
- Power Rating: 100W at flange temperature -55°C to +100°C (wire leads) or -55°C to +25°C (quick connect)
- Resistance Range: 0.10 to 51kΩ, lowest 0.1 ohm available
- Resistance Tolerance: 5% (J)
- Temperature Coefficient: 100 ppm/K (A) from -55°C to +155°C
- Maximum Voltage: 1000V, Withstanding Voltage: 5000VAC for 60 seconds
- Flange Temperature: Up to +155°C, with heat resistance of 0.5°C/W (wire leads) or 1.1°C/W (quick connect)
- Construction Materials: Niplated Thick film, copper, alumina ceramics, epoxy on terminals
- Size & Weight: Approximately 14g, dimensions vary with terminal type
- Testing & Certification: UL94V-0 flammability, resistance over 1000MΩ between terminals and flange, compliant with RoHS
Buy the Buy Ohmite TGHD Series Part Number TGHDV270RJE Online
Purchase the Ohmite TGHDV270RJE high power resistor online today for industrial electronics. Designed for demanding applications, it offers a 100W rating, wide resistance range, durable construction, and excellent heat dissipation. Ideal for filters, snubbers, and power supplies, this resistor is RoHS compliant and features quick connect or wire leads for flexible installation. Trust in its vibration-proof design and UL94V-0 flammability rating to ensure safe, reliable operation in your high power systems. Order now for quick delivery and expert support.
Buy Ohmite TGHDV270RJE now and experience unmatched reliability and performance in high power resistor applications with excellent heat dissipation.
Frequently Asked Questions
Where can I buy Ohmite TGHDV270RJE?
You can click on the BUY or RFQ button to purchase TGHDV270RJE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHDV270RJE?
You can download the TGHDV270RJE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHDV270RJE?
Ohmite
