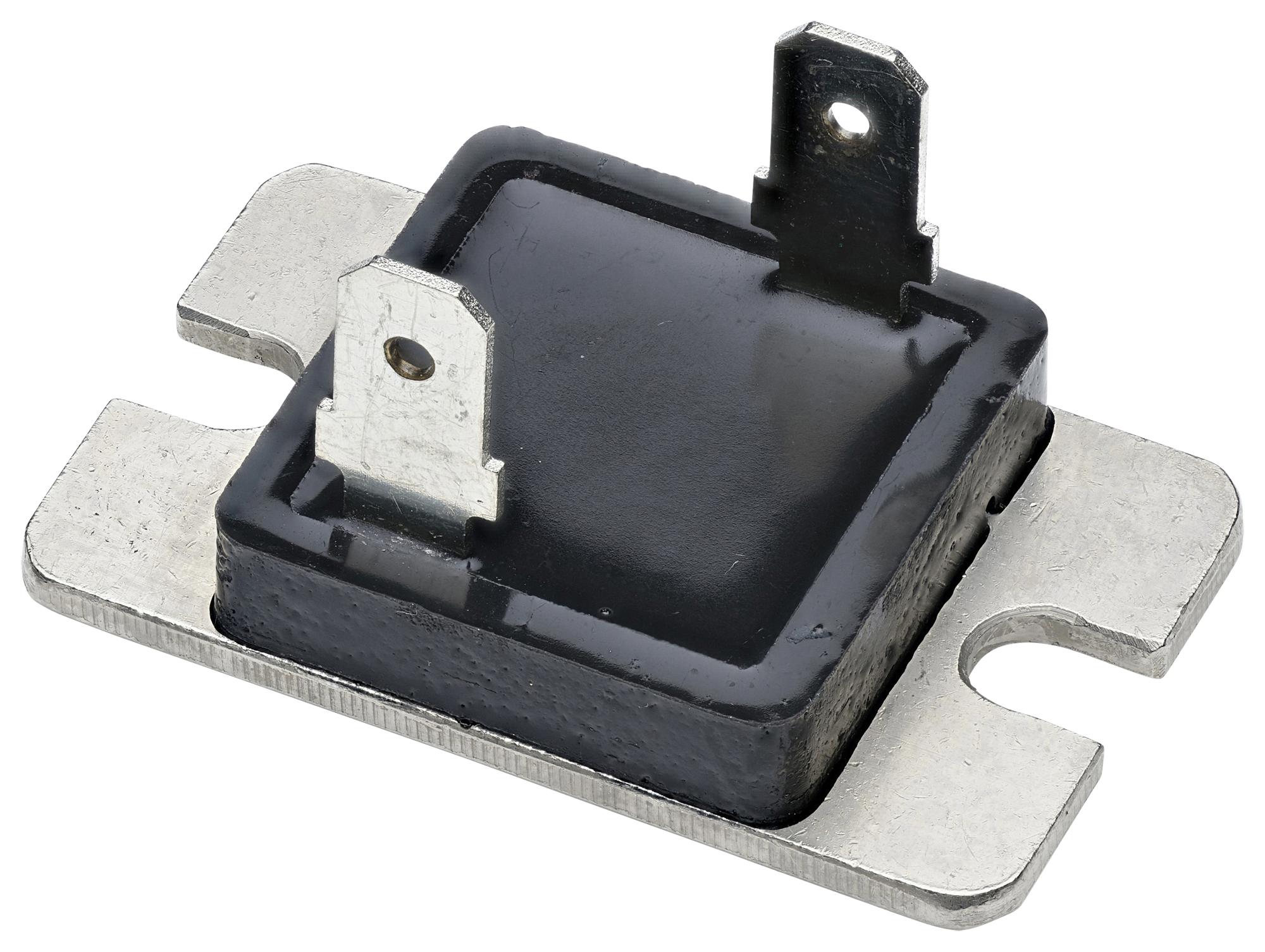

Ohmite TGHDV27R0JE High Power Resistor
The TGHD Series high power resistors are non-inductive, chassis-mounted components ideal for use in harmonic filtering, gate resistors, snubber resistors, and surge protection. These flat, air-cooled resistors deliver 100W power dissipation and feature rapid mounting options with quick connect tabs or fly wire leads. They operate over a temperature range of -55°C to +155°C, with resistances from 0.10 to 51kΩ. Suitable for power supplies, high-frequency amplifiers, and dummy loads, these resistors provide reliable heat dissipation and high insulation resistance, making them suitable for demanding industrial applications.
Ohmite TGHDV27R0JE High Power Resistor Specifications:
- Power Rating: 100W at flange temperature -55 to +100°C (wire leads) or -55 to +25°C (quick connect)
- Resistance Range: 0.10 to 51kΩ
- Resistance Tolerance: ±35% (J)
- Temperature Range: -55°C to +155°C
- Heat Resistance: 0.5°C/W (wire leads) or 1.1°C/W (quick connect)
- Maximum Voltage: 1000V (E = V x P)
- Withstanding Voltage: 5000 VAC for 60 seconds, leak current below 0.5mA
- Insulation Resistance: Over 1000MQ between terminals and flange
- Material: Thick film, copper, alumina ceramics, epoxy coating
- Mounting Torque: 1.0 to 1.6 Nm
- Weight: 14 grams
- Construction: Flange type, quick connect or wire leads, RoHS compliant
- Certifications: UL94V-0 flammability
- Environmental: Load life 1000 hours, humidity cycle, vibration, temperature cycle
Buy the Ohmite Series TGHD High Power Resistor: TGHDV27R0JE
Order the Ohmite high power resistor TGHDV27R0JE online today for reliable, high-performance operation in demanding industrial environments. Designed for heat dissipation, vibration resistance, and high voltage withstand, this 100W resistor is perfect for power supplies, harmonic filters, and dummy loads. Its robust construction and wide temperature range ensure durability and safety during extended use. With quick connect or wire leads options, it simplifies installation and maintenance. Purchase online now to benefit from fast delivery, quality assurance, and expert support for your electronic and industrial projects.
Get Ohmite TGHDV27R0JE today—built for precision, high wattage, and long-lasting durability in industrial power applications.
Frequently Asked Questions
Where can I buy Ohmite TGHDV27R0JE?
You can click on the BUY or RFQ button to purchase TGHDV27R0JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHDV27R0JE?
You can download the TGHDV27R0JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHDV27R0JE?
Ohmite
