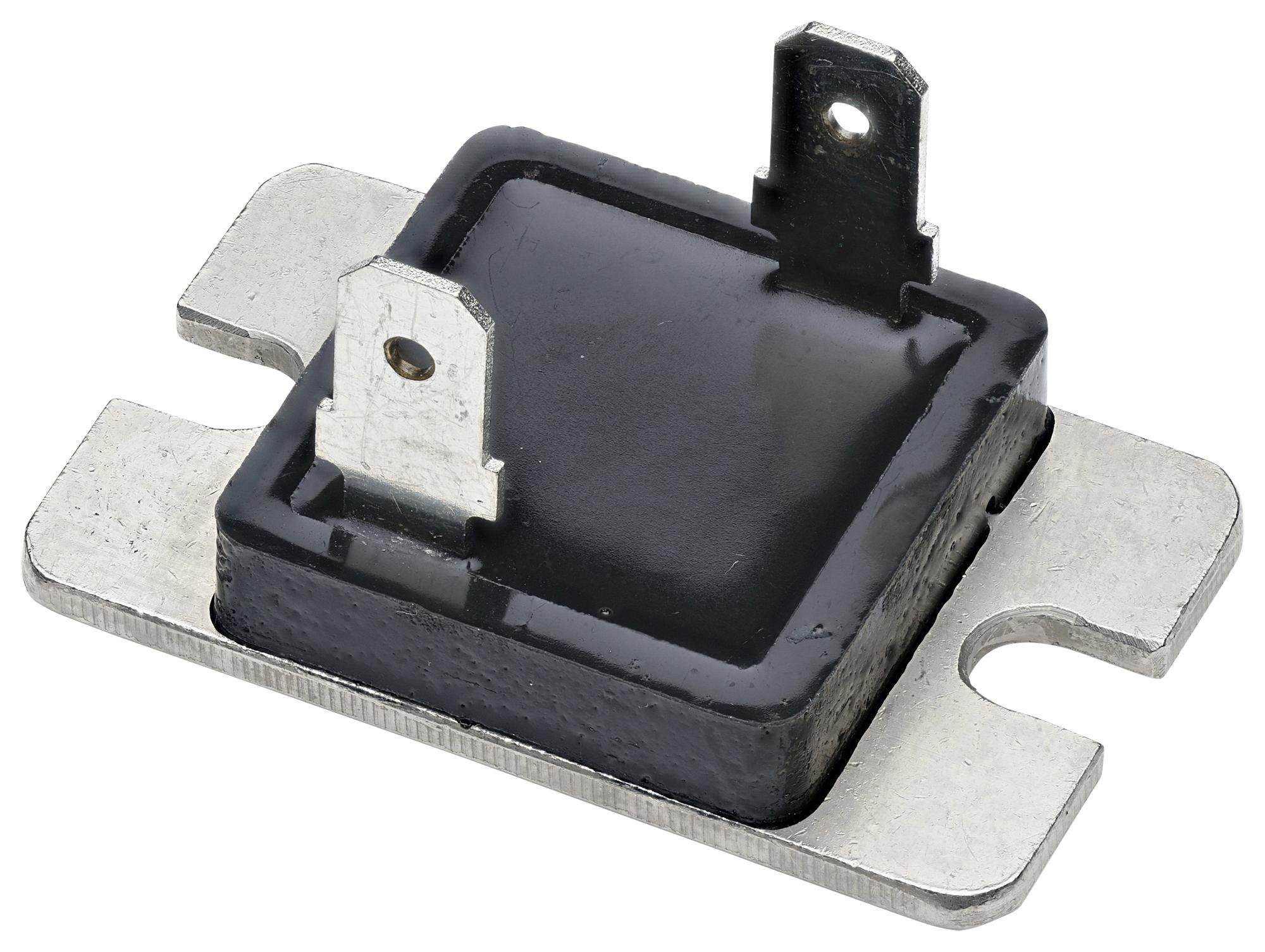

Ohmite TGHDV470RJE High Power Resistor
The TGHDV470RJE is a 100W non-inductive, chassis-mount high power resistor designed for applications such as harmonic filters, snubber resistors, dump resistors, and power supplies. It features quick connect tabs or fly wire leads and can be cooled by air or water. With a resistance range from 0.10 to 51kΩ and a maximum voltage of 1000V, it offers high insulation resistance over 1000MΩ, withstands 5000VAC for 60 seconds, and handles temperatures from -55°C to +155°C. Its construction includes thick film substrate, copper alumina ceramics, and epoxy coating, ensuring durability and reliable heat dissipation.
Ohmite TGHDV470RJE High Power Resistor Specifications:
- Power Rating: 100W at flange temperature -55 to +100°C (wire leads) or -55 to +25°C (quick connect)
- Resistance Range: 0.10 to 51kΩ
- Resistance Tolerance: ±5%
- Maximum Voltage: 1000V
- Withstanding Voltage: 5000VAC for 60 seconds
- Thermal Resistance: 0.5°C/W (wire leads) or 1.1°C/W (quick connect)
- Temperature Range: -55°C to +155°C
- Construction: Thick film substrate, copper alumina ceramics, epoxy coating
- Insulation Resistance: Over 1000MΩ
- Flange Temperature: Max 155°C
- Mounting Torque: 1.6Nm max, 1.0Nm recommended
- Weight: 14g
- Certifications: RoHS compliant, UL94V-0 flammability rating
Buy the Ohmite Series TGHD High Power Resistor: TGHDV470RJE
Purchase the Ohmite Series TGHDV470RJE high power resistor online today for robust electrical performance in demanding applications. This non-inductive, chassis-mount resistor provides 100W power handling, extensive temperature range, and high voltage capacity. Its design incorporates quick-connect tabs or wire leads, ideal for harmonic filtering, snubber circuits, or power supplies. With excellent heat dissipation, high insulation resistance, and RoHS compliance, it ensures durability and efficiency for industrial and electronic systems. Buy now and upgrade your power management solutions with confidence.
Order your Ohmite Series TGHDV470RJE high power resistor today and ensure your industrial projects benefit from dependable, high-capacity heat dissipation and reliable performance.
Frequently Asked Questions
Where can I buy Ohmite TGHDV470RJE?
You can click on the BUY or RFQ button to purchase TGHDV470RJE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHDV470RJE?
You can download the TGHDV470RJE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHDV470RJE?
Ohmite
