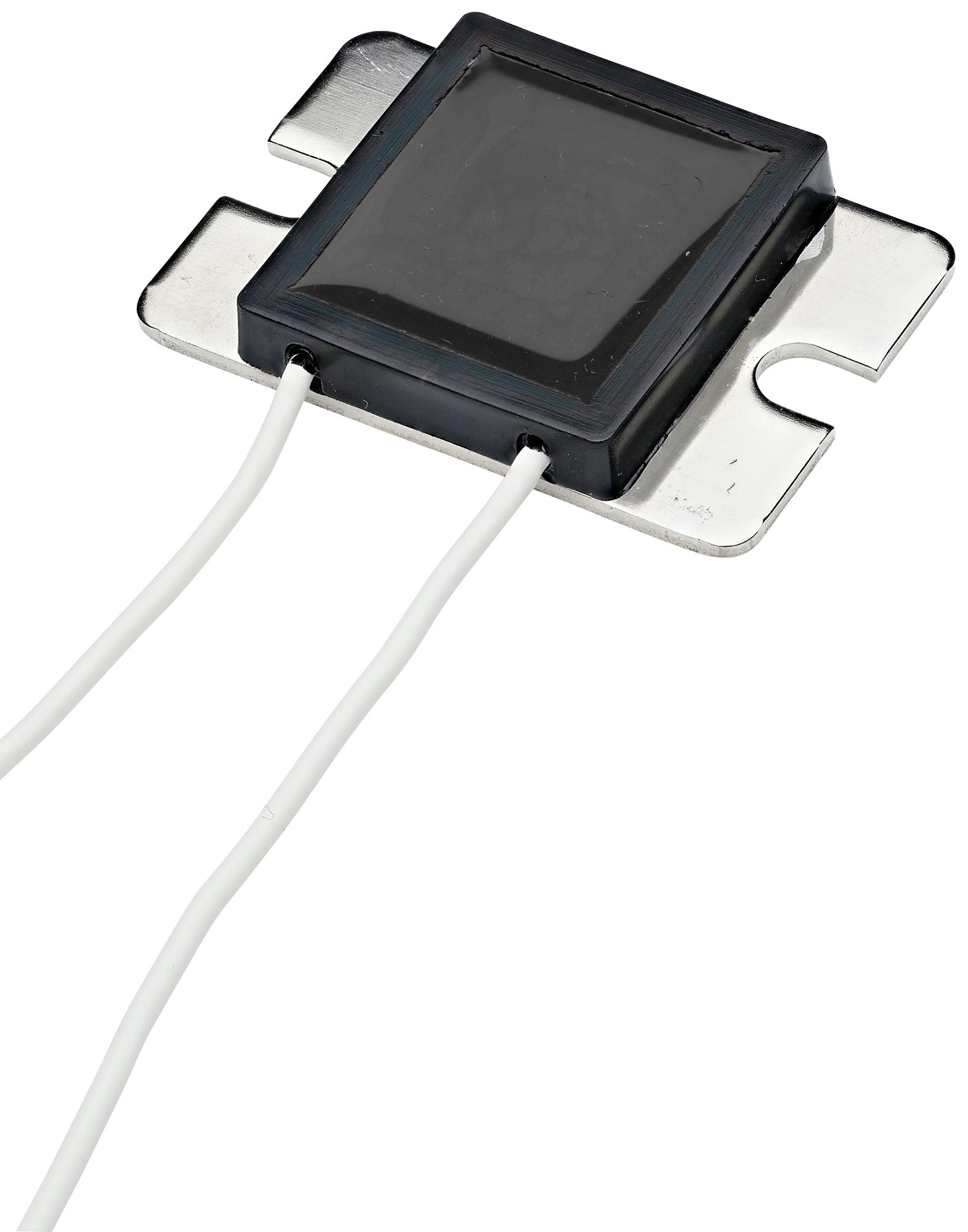

Ohmite TGHDX47R0JE High Power Resistor
The TGHD Series non-inductive high power resistors are flat, air-cooled or water-cooled components rated at 100W. They feature quick connect tabs or wire leads, with applications ranging from harmonic filtering to surge protection and dummy loads. Constructed for durability, these resistors operate at temperatures from -55°C to +155°C, withstanding voltages up to 5000 VAC. They include precise resistance ranges from 0.10Ω to 51kΩ, have a moderate tolerance of 5%, and feature a robust construction with installation torque recommendations. Suitable for power supplies, high-frequency amplifiers, and automotive electronics.
Ohmite TGHDX47R0JE High Power Resistor Specifications:
- Power rating: 100W at flange temperature -55 to +155°C
- Resistance range: 0.10 to 51kΩ
- Tolerance: 5% (J)
- Resistance temperature coefficient: 100 ppm/K (A)
- Maximum applied voltage: 1000V
- Withstanding voltage: 5000 VAC for 60 seconds
- Operating temperature: -55°C to +155°C
- Flange temperature: up to 155°C
- Construction: Thick film resistor on copper alumina ceramic substrate
- Insulation resistance: Over 1000 MΩ between terminals and flange
- Weight: 14 g
- Mounting torque: 1.0 Nm recommended, max 1.6 Nm
- Dimensions: Length varies, terminal options include quick connect tabs or wire leads
- Vibration resistance: IEC 60068-2-6 compliant
Buy the Ohmite Series TGHD High Power Resistor: TGHDX47R0JE
Purchase the high power resistor from our online store today. These resistors are designed for reliability in demanding environments, offering excellent heat dissipation, vibration resistance, and precise resistance values. Ideal for power supplies, filters, surge protection, and dummy loads, they ensure your electronic projects are efficient and durable. With quick connect or wire leads options, easy installation, and robust construction, these resistors provide an optimal solution for high-performance applications. Buy now for fast delivery and trusted quality.
Get Ohmite high power resistors today—built for precision and long-lasting durability.
