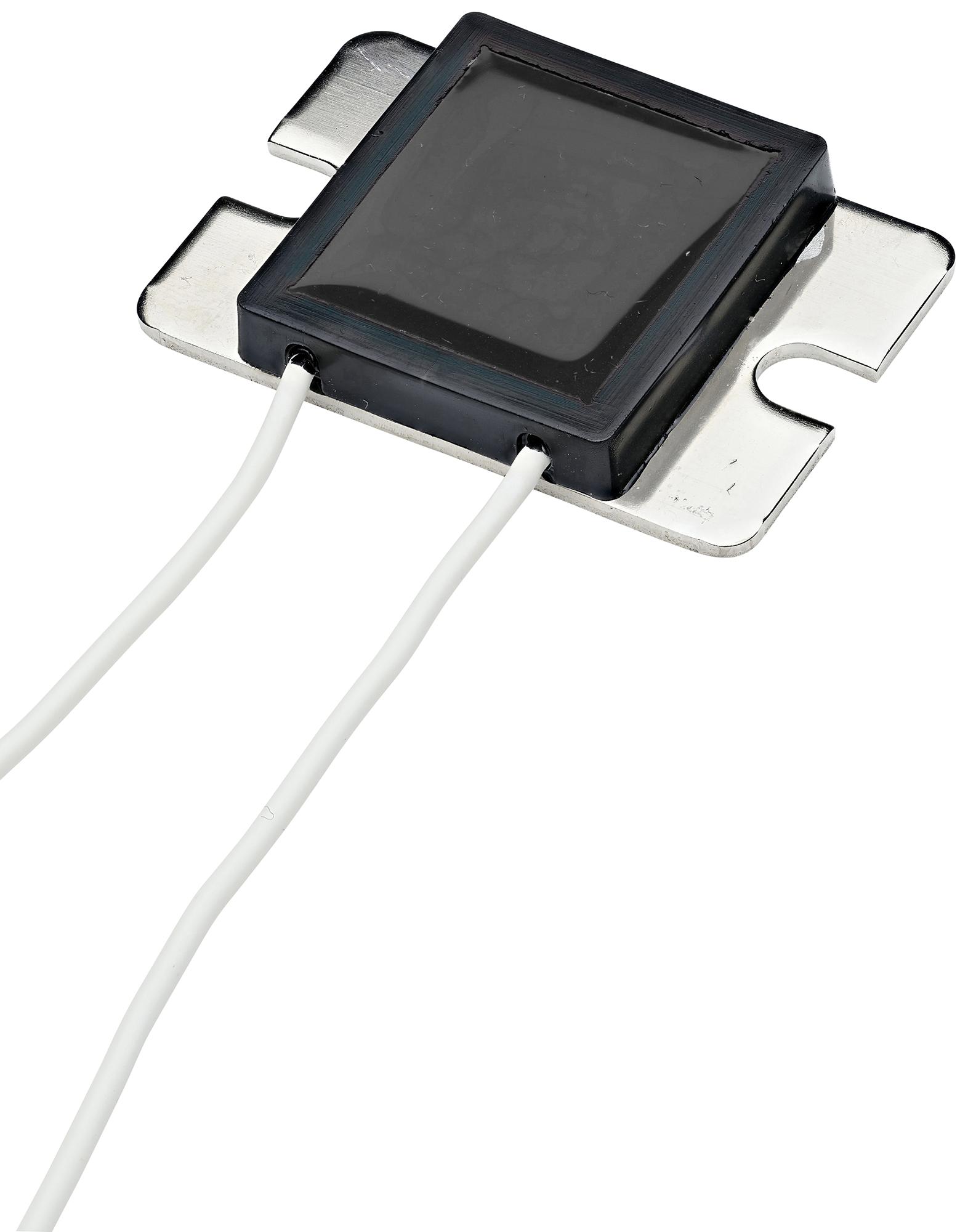

Ohmite TGHDX5R00JE High Power Resistor
The TGHDX5R00JE is a high-power, chassis-mount resistor designed for industrial applications requiring reliable heat dissipation and high voltage endurance. It features a thick film copper substrate, aluminum ceramic insulator, and epoxy-coated terminals, ensuring durability under continuous load, vibration, and temperature cycling. It offers a resistance range of 0.10 to 51kΩ, with a power rating of 100W at flange temperatures between -55°C and +100°C. Suitable for harmonic filters, snubber circuits, surge protection, and high-frequency amplifiers, it complies with RoHS standards for environmentally friendly manufacturing.
Ohmite TGHDX5R00JE High Power Resistor Specifications:
- Power Rating: 100W at flange temperature -55°C to +100°C (wire leads) or -55°C to +25°C (quick connect)
- Resistance Range: 0.10 to 51kΩ, lowest 0.1 ohm available
- Resistance Tolerance: 35% (J)
- Temperature Coefficient: 100 ppm/K (A) from -55°C to +155°C
- Maximum Voltage: 1000V (E=V×P) or 5000 VAC withstand voltage for 60 seconds
- Heat Resistance: 0.5°C/W (wire leads) or 1.1°C/W (quick connect)
- Dimensions: Length varies with type, mounting torque max 1.6Nm, weight 14g
- Construction: Thick film copper alumina ceramic substrate with epoxy coated terminals
- Insulation Resistance: Over 1000MQ between terminals and flange
- Operational Temp.: -55°C to +155°C at resistor surface
- Vibration: Meets IEC60068-2-6 standard, displacement 0.75mm or acceleration up to 100m/sec²
- Certifications: RoHS compliant, UL94V-0 flammability rating
Buy the OHMITE TGHDX5R00JE – Reliable High Power Resistor for Industrial Applications
Purchase the OHMITE TGHDX5R00JE high power resistor online today. Designed for industrial and power electronics, it features a 100W power rating, resistance from 0.10 to 51kΩ, and excellent heat dissipation. Its thick film copper substrate and high voltage endurance ensure long-lasting durability in applications like harmonic filters, snubber circuits, surge protection, and high-frequency amplifiers. RoHS compliant, easy to install, and reliable under demanding conditions, making it a perfect choice for engineers and technicians seeking quality resistors.
Get OHMITE TGHDX5R00JE today—built for high power, durability, and precise performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Ohmite TGHDX5R00JE?
You can click on the BUY or RFQ button to purchase TGHDX5R00JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHDX5R00JE?
You can download the TGHDX5R00JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHDX5R00JE?
Ohmite
