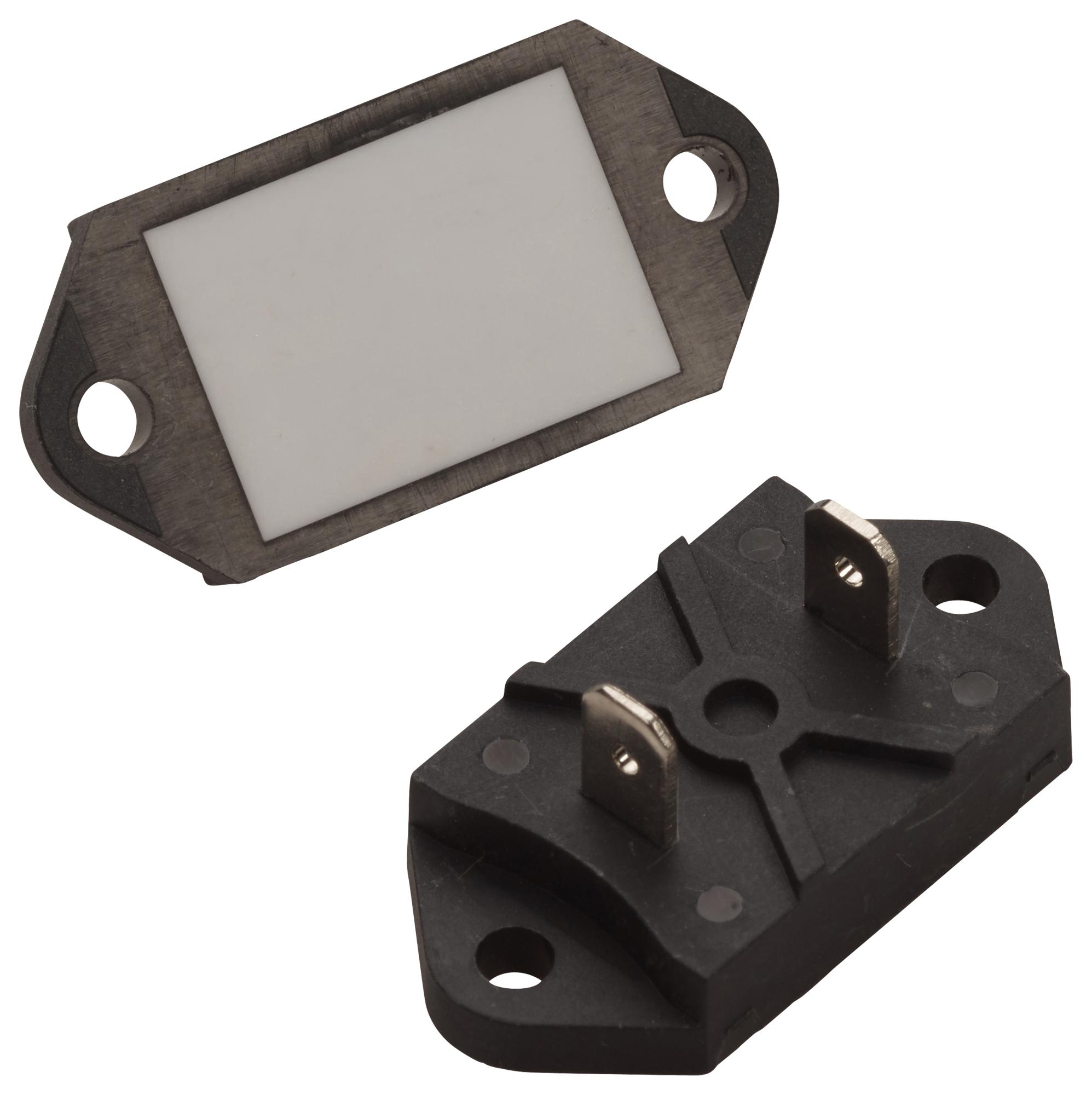

Ohmite TGHEV25R0FE High-Power Resistor
The TGHE Series 100W heatsinkable resistor features a thermally efficient ceramic base plate, designed for lower power applications such as variable speed drives, power supplies, and communication equipment. It offers non-inductive construction, RoHS compliance, and a molded package that ensures better heat dissipation. With resistance values ranging from 0.24 to 1MQ and tolerances of ±4% to ±10%, it supports operating voltages up to 1000V DC. The resistor is suitable for high-temperature environments, rated for 100W power at +85°C, with a maximum operating temperature of +130°C, and diagnostic tips for mounting and thermal management. It complies with UL 94 V-0 safety standards and provides reliable performance across wide temperature ranges.
Ohmite TGHEV25R0FE High-Power Resistor Specifications:
- Resistance range: 0.24 to 1MQ
- Tolerance: ±4% to ±10%
- Rated power: 100W at +85°C
- Max. operating voltage: 1000V DC
- Temperature Rating: -55°C to +130°C
- Thermal resistance: >3.4W / (mK) at 485°C
- Dielectric strength: 3000V DC
- Weight: 6 grams
- Base plate mounting: M3 screw, max torque 0.7Nm
- RoHS compliant, UL 94 V-0
- Material: Ceramic base plate, non-inductive construction
- Maximum case temperature: monitored to maintain power rating
Buy the Brand TGHE – Reliable Heatsinkable Resistor for Industrial Applications
Order the TGHE Series heatsinkable resistor online today and enjoy robust performance in industrial environments. Designed for thermal efficiency, it ensures reliable operation for variable speed drives, power supplies, and communication systems. With easy mounting and high temperature tolerance, this resistor offers excellent durability and compliance with safety standards. Perfect for high-power applications needing precision and stability, it guarantees optimal heat dissipation and long service life. Purchase now to upgrade your equipment with trusted quality.
Buy TGHE Series heatsinkable resistor now and ensure reliable thermal management for your industrial control and power supply needs.
Frequently Asked Questions
Where can I buy Ohmite TGHEV25R0FE?
You can click on the BUY or RFQ button to purchase TGHEV25R0FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHEV25R0FE?
You can download the TGHEV25R0FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHEV25R0FE?
Ohmite
