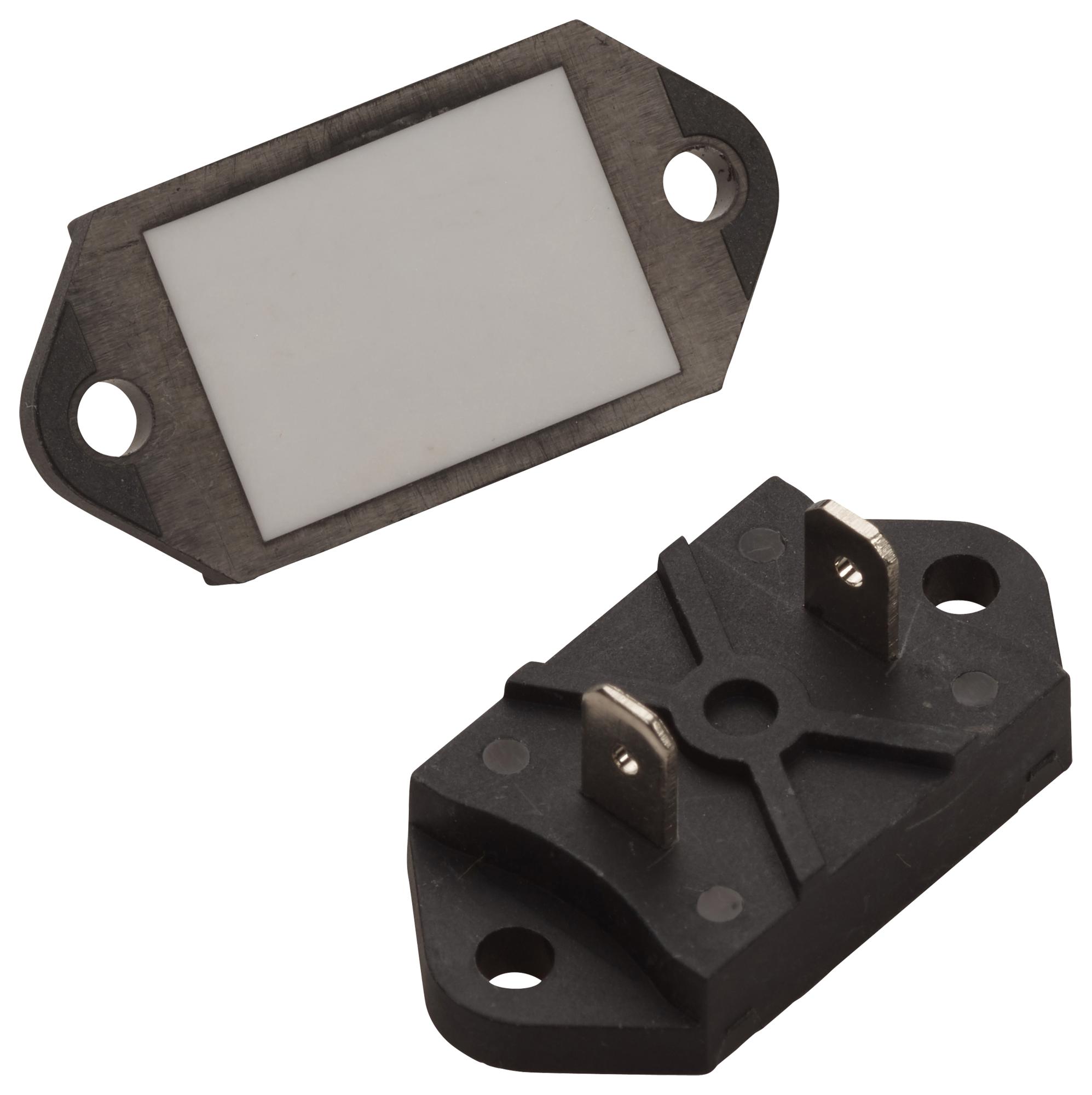

Ohmite TGHEV500RFE Heatsinkable Resistor
The TGHE series 100W heatsinkable resistor features a thermally efficient design with a ceramic base plate, making it suitable for variable speed drives, power supplies, and control equipment. It offers a resistive value range of 0.24 to 1MΩ with tolerances between 4% and 10%. Capable of handling up to 100W at 85°C, it is ROHS compliant and UL 94 V-0 rated. Ideal for applications requiring high power dissipation, this resistor ensures reliable performance through proper mounting and thermal management.
Ohmite TGHEV500RFE Heatsinkable Resistor Specifications:
- Resistance Value Range: 0.24Ω to 1MΩ
- Rated Power: 100W at +85°C
- Maximum Operating Voltage: 1000V DC
- Dielectric Strength: 3000V DC
- Working Temperature: -55°C to +130°C
- Base Plate Material: Ceramic
- Tolerance Range: 4% to 10%
- Maximum Case Temperature: 130°C
- Thermal Resistance: >3.4W/(mK)
- Temperature Coefficient: +150ppm/°C to +250ppm/°C
- UL 94 V-0 Compliant, RoHS compliant
- Suitable for heat dissipation and high-power applications
- Mounting: M3 screws with torque 0.6-0.7Nm
- Weight: 6 grams
Buy the Buy Ohmite TGHEV500RFE Series Heatsinkable Resistor Part Number TGHEV500RFE Online
Purchase the Ohmite TGHEV500RFE heatsinkable resistor online today. Designed for efficient heat dissipation and high power applications, this 100W resistor offers robust performance, thermal stability, and compliance with RoHS standards. Its ceramic base plate ensures excellent thermal transfer, ideal for variable speed drives, power supplies, and control systems. Secure your project’s reliability by ordering this high-quality resistor, which features a resistance range from 0.24Ω to 1MΩ, a maximum voltage of 1000V, and excellent dielectric strength for demanding electrical environments.
Order your Ohmite TGHEV500RFE series heatsinkable resistor today and ensure reliable thermal management for high-power applications.
Frequently Asked Questions
Where can I buy Ohmite TGHEV500RFE?
You can click on the BUY or RFQ button to purchase TGHEV500RFE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHEV500RFE?
You can download the TGHEV500RFE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHEV500RFE?
Ohmite
