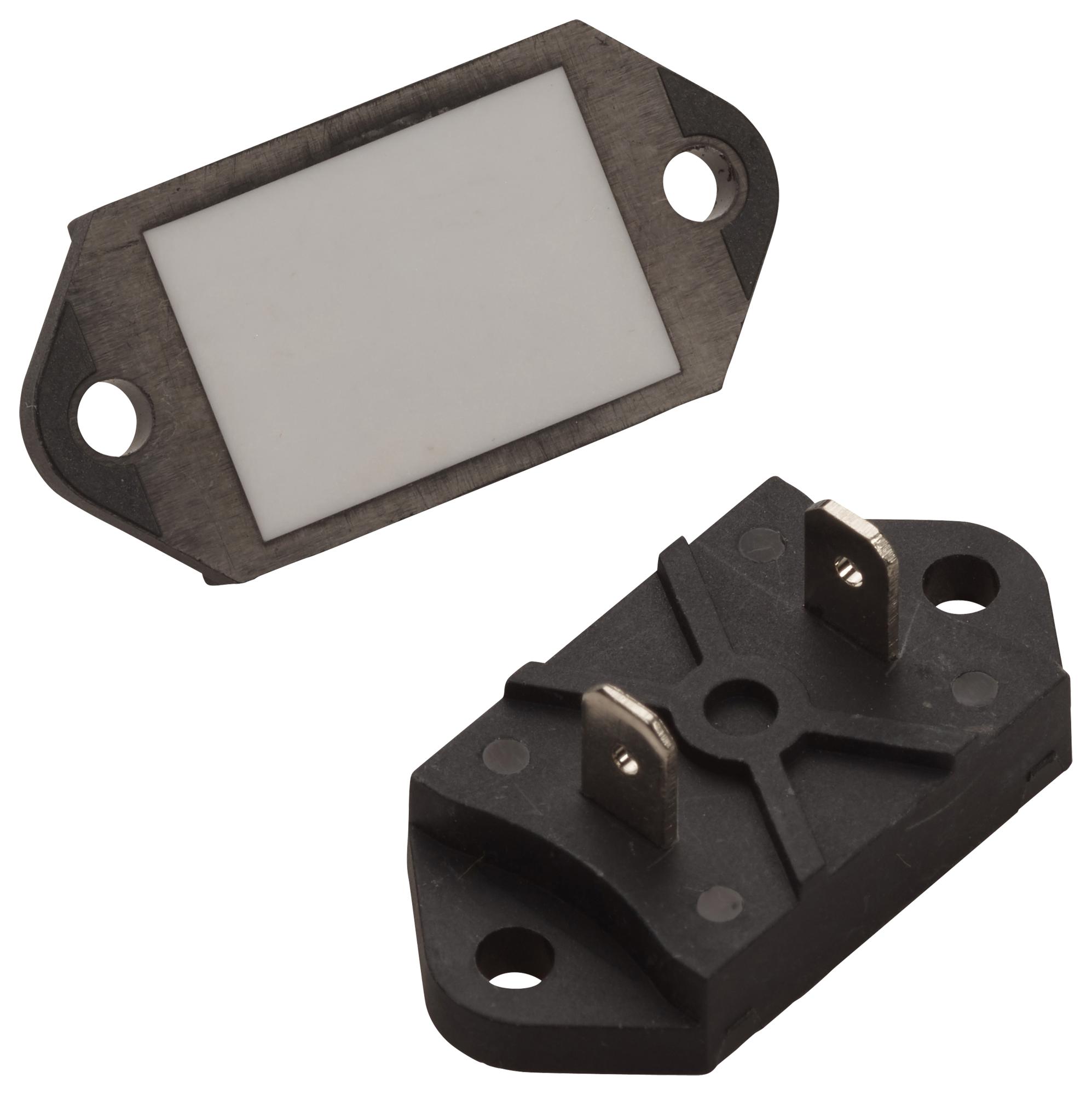

Ohmite TGHEV50R0FE Heatsinkable Resistor
The TGHEV50R0FE is a 100W heatsinkable thick-film resistor designed for efficient thermal management in power supplies, motor drives, and communication equipment. Featuring a ceramic base plate, non-inductive design, and UL 94 V-0 flame rating, it offers a resistance range of 0.24 to 1 megaohm with tolerances from 41% to 10%. Capable of operating up to 130°C with a maximum voltage of 1000V, it ensures reliable performance in high-temperature environments. Easy to mount with recommended torque settings for optimal heat dissipation and safety.
Ohmite TGHEV50R0FE Heatsinkable Resistor Specifications:
- Power Rating: 100W at +85°C bottom case temperature
- Resistance Range: 0.24 to 1 megaohm
- Resistance Tolerance: 41% to 10%
- Operating Temperature: -55°C to +130°C
- Maximum Operating Voltage: 1000V DC
- Dielectric Strength: 3000V DC
- Thermal Derating: 0.45 KW at 130°C
- Thermal Resistance: >3.4 W/(mK)
- Base Plate Material: Ceramic
- Mounting: M3 screw, torque 0.6-0.7 Nm
- Weight: 6 grams
- UL Flammability Rating: UL 94 V-0
Buy the Omite Series TGHE Heatsinkable Resistor: TGHEV50R0FE
Order the Omite Series TGHEV50R0FE heatsinkable resistor online today to ensure your industrial power applications benefit from superior thermal management, high voltage capacity, and reliable operation at elevated temperatures. With easy mounting, excellent heat dissipation features, and compliance with safety standards, this resistor is ideal for motor drives, control equipment, and communication systems. Purchase now to enhance your project with a durable and thermally efficient resistor designed for demanding environments and high-performance needs.
Buy Omite TGHEV50R0FE now and experience unmatched reliability and performance in high-power heat dissipation applications.
Frequently Asked Questions
Where can I buy Ohmite TGHEV50R0FE?
You can click on the BUY or RFQ button to purchase TGHEV50R0FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHEV50R0FE?
You can download the TGHEV50R0FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHEV50R0FE?
Ohmite
