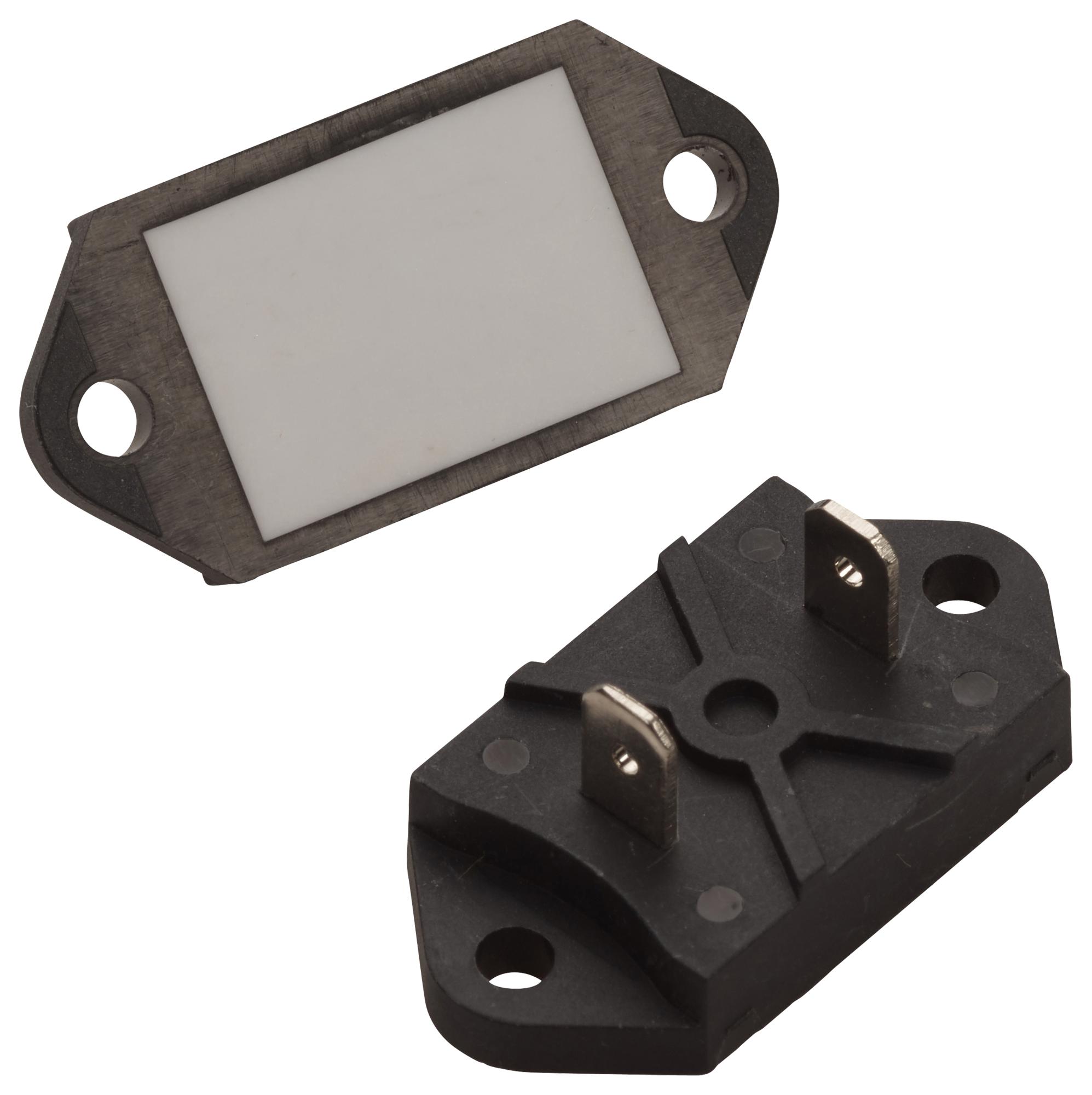

Ohmite TGHEV5R00FE High Power Resistor
The TGHE Series 100W Heatsinkable Resistor features a thermally efficient ceramic base, non-inductive design, and roHS compliance. Designed for lower power applications, it offers better heat dissipation in control equipment, variable speed drives, and communication systems. The resistor provides a resistance range from 0.24 to 1MQ with tolerances between 4% and 10%. It can operate at voltages up to 1000V DC and withstand temperatures from -55°C to +130°C. Suitable for high-power circuits, it includes mounting instructions for optimal thermal management and maximum base plate temperature monitoring to ensure reliability.
Ohmite TGHEV5R00FE High Power Resistor Specifications:
- Power Rating: 100W at +85°C, derating to 0.45KW at 130°C
- Resistance Range: 0.24 to 1MQ
- Tolerance: 4% to 10%
- Max Operating Voltage: 1000V DC
- Dielectric Strength: 3000V DC
- Temperature Range: -55°C to +130°C
- Thermal Resistance: >3.4W/(mK) at +25°C
- Material: Ceramic base plate with molded package
- Mounting: M3 screw, torque 0.6-0.7 Nm, temperature monitored via thermocouple
- RoHS Compliant
Buy the Buy Industrial Equipment Heatsinkable Resistor Part Number TGHEV5R00FE Online
Purchase the TGHEV5R00FE power resistor online today for reliable performance in a variety of high-power control, communication, and automation applications. This ceramic-based resistor features a rugged molded package, high dielectric strength, and thermal efficiency, making it suitable for demanding environments. Its resistance value ranges from 0.24 to 1MQ with tolerances of 4% to 10%, capable of withstanding voltages up to 1000V DC. Easy to mount, it requires proper thermal management with monitoring to maintain optimal operation and longevity.
Get TGHEV5R00FE heatsinkable resistor today—designed for high power and thermal efficiency, ensuring reliable performance in control and communication systems.
Frequently Asked Questions
Where can I buy Ohmite TGHEV5R00FE?
You can click on the BUY or RFQ button to purchase TGHEV5R00FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHEV5R00FE?
You can download the TGHEV5R00FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHEV5R00FE?
Ohmite
