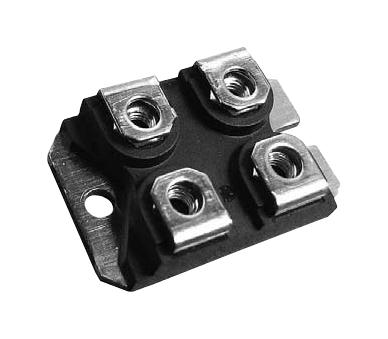

Ohmite TGHGCR0010DE Current Sense Resistor
The TGHG series precision current sense resistors utilize advanced technology to deliver highly reliable, non-inductive performance ideal for current monitoring and control applications. With resistance values starting at 0.5 milliohms, this resistor ensures accurate measurements through four-terminal Kelvin connection and is housed in a durable SOT 227 package. Constructed with nickel-plated copper, it features a temperature coefficient of less than 60ppm/°C, power ratings up to 100W at 70°C, and a maximum working temperature of +155°C. Excellent for high-power, high-precision circuits requiring stable, low resistance measurement.
Ohmite TGHGCR0010DE Current Sense Resistor Specifications:
- Resistance values beginning at 0.5mQ
- Non inductive, four terminal Kelvin connection
- Package: SOT 227 with nickel-plated copper heat sink
- Resistance Tolerances: 0.5% (0.0005 to 0.0222), 1%, 5%
- Temperature Coefficient: less than 60ppm/°C (-15°C to +105°C)
- Power Rating: 100W at 70°C case temperature, 50A permanent current
- Maximum Working Temperature: +155°C
- Dielectric Strength: 1000VDC, higher on request
- Heat Resistance: Rin <0.56K/W, aided by thermal transfer compound
- Protection Class: IEC 950/CSA 22.2 950-M-89, EN 60950.88-2
- Max Torque for Contacts: 1.3Nm, for Base Plate: 1.5Nm
- Maximum Continuous Amperage: 200A depending on ohmic value
- Operating Temperature Range: -55°C to +155°C
Buy the Buy Precision Current Sense Resistors TGHG Series Part Number TGHGCR0010DE Online
Enhance your electronic projects with the high-performance TGHG series current sense resistor. Designed for precise, reliable measurements in high-power circuits, it features low resistance values, four-terminal Kelvin connections, and robust construction with nickel-plated copper. Rated for up to 100W at 70°C and operating efficiently within a temperature range of -55°C to +155°C, this resistor ensures stability and accuracy. Ideal for current monitoring, control applications, and circuit protection, buy online today to secure dependable performance for your electronic system needs.
Buy Precision Current Sense Resistors TGHGCR0010DE now and experience unmatched reliability and performance in high-current measurement applications.
Frequently Asked Questions
Where can I buy Ohmite TGHGCR0010DE?
You can click on the BUY or RFQ button to purchase TGHGCR0010DE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHGCR0010DE?
You can download the TGHGCR0010DE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHGCR0010DE?
Ohmite
