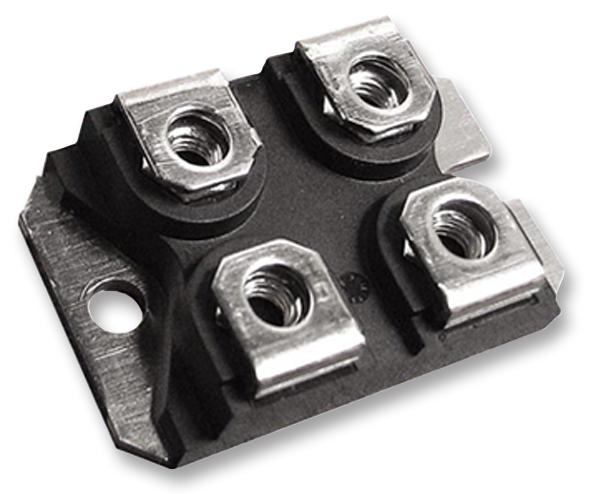

Ohmite TGHGCR0100FE Current Sense Resistor
The TGHG Series precision current sense resistors are designed for high-reliability current monitoring applications. Featuring non-inductive, four-terminal Kelvin connections, they ensure accurate measurement separate from current flow. Constructed with heat sink nickel-plated copper, these resistors support power ratings up to 100W at 70°C, withstanding temperatures from -55°C to +155°C. Resistance values start at 0.5 milliohm, with tolerance options of 0.5%, 1%, or 5%. They meet IEC 950/CSA22.2 950/M-89 standards and include robust features such as dielectric strength of 1000VDC and maximum continuous currents up to 200 amps, ideal for high-power, precision applications.
Ohmite TGHGCR0100FE Current Sense Resistor Specifications:
- Resistance Values: starting at 0.5mΩ, tolerance options 0.5%, 1%, 5%
- Power Rating: 100W at 70°C case temperature
- Temperature Range: -55°C to +155°C
- Dielectric Strength: 1000VDC
- Heat Resistance: optimized with heat sink nickel-plated copper
- Maximum Cont. Current: 200 amps depending on ohmic value
- Resistance Tolerance: 0.5%, 1%, 5%
- Material: Nickel-plated copper
- Dimensions: overall length approximately 1.235 inches (31.35mm), width 0.168 inches (4.2mm), height 0.500 inches (12.7mm)
- Connection Type: Four-terminal Kelvin, supporting high accuracy
- Certifications: IEC 950/CSA22.2 950/M-89 compliance
- Maximum Mechanical Torque: 1.3Nm for contacts, 1.5Nm for base plate
Buy the Buy Ohmite TGHG Series Precision Current Sense Resistors Part Number TGHGCR0100FE Online
Secure your Ohmite TGHGCR0100FE high-power current sense resistor online today to enhance your electrical systems with dependable, accurate current measurement. Designed for demanding environments, these resistors support power ratings of 100W at 70°C, withstanding temperatures from -55°C to +155°C. Equipped with four-terminal Kelvin connections, they eliminate measurement errors, providing excellent accuracy for current monitoring applications. Their nickel-plated copper construction ensures durability and heat dissipation, making them ideal for high-current, critical control systems in industrial and power supply environments. Shop now for fast delivery and reliable performance.
Order your Ohmite TGHGCR0100FE series high-power current sense resistor today and ensure reliable, precise measurement in your electrical projects.
Frequently Asked Questions
Where can I buy Ohmite TGHGCR0100FE?
You can click on the BUY or RFQ button to purchase TGHGCR0100FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHGCR0100FE?
You can download the TGHGCR0100FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHGCR0100FE?
Ohmite
