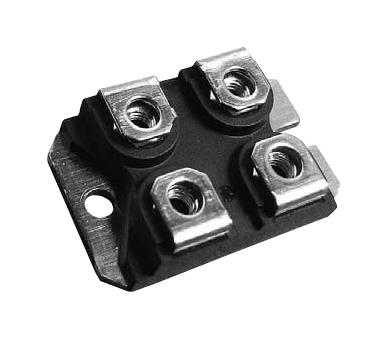

Ohmite TGHGCR0200DE Current Sense Resistor
The TGHG Series Precision Current Sense Resistors are designed for high reliability and non-inductive performance, ideal for current monitoring and control applications. Featuring resistance values as low as 0.5mΩ, these resistors are equipped with four-terminal Kelvin connections and a SOT 227 package for precise measurements. With a power rating of 100W at 70°C case temperature and a temperature coefficient below 60ppm/°C, they offer excellent thermal stability. Suitable for high-current circuits, they are constructed with nickel-plated copper heat sinks, ensuring durability and efficient heat dissipation in demanding environments.
Ohmite TGHGCR0200DE Current Sense Resistor Specifications:
- Resistance values: 0.5mΩ to 1Ω; Resistance tolerances: 0.5%, 1%, 5%; Power rating: 100W at 70°C; Temperature coefficient: <60ppm/°C; Dielectric strength: 1000VDC; Operating temperature range: -55°C to +155°C; Dimensions: Length varies with model, typical sizes around 1.5" to 4.2"; Heat sink material: Nickel-plated copper; Max continuous current: 200 amps; Max torque for contacts: 1.3Nm; Max torque for base plate: 1.5Nm; Thermal dissipation with heat conductivity: >1W/mK; Protection class: IEC 950/CSA22.2 950/M-89; Finishes: Nickel plating; Mounting: Four-terminal Kelvin design for precise measurement.
Buy the Ohmite Series TGHG Precision Current Sense Resistors: TGHGCR0200DE
Purchase the Ohmite TGHG Series Precision Current Sense Resistor online today. With a 100W power rating, accuracy in high-current circuits, and durable nickel-plated copper heat sinks, these resistors ensure reliable performance in demanding industrial environments. Featuring four-terminal Kelvin connections for precise measurement, resistance values starting at 0.5mΩ, and an operating temperature range from -55°C to +155°C, they are ideal for current monitoring, control systems, and power circuits. Order now for dependable, high-quality current sensing components.
Get Ohmite TGHGCR0200DE today—built for precision, high power, and long-lasting durability in current sensing applications.
Frequently Asked Questions
Where can I buy Ohmite TGHGCR0200DE?
You can click on the BUY or RFQ button to purchase TGHGCR0200DE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHGCR0200DE?
You can download the TGHGCR0200DE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHGCR0200DE?
Ohmite
