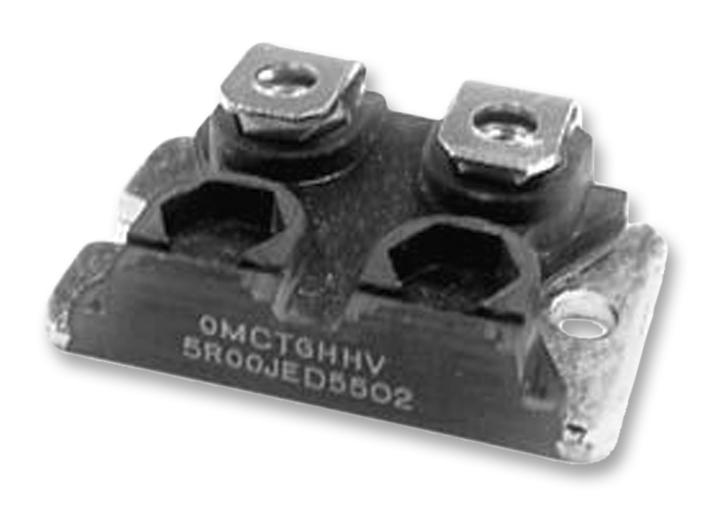

Ohmite TGHHV500RJE High Power Resistor
The THG Series high-power resistors are designed for high-frequency and pulse-load applications, offering 120 or 200-watt power ratings with non-inductive construction. Made with nickel-plated copper contacts and an Al2O3 substrate, they feature high thermal and dielectric strength, suitable for power supplies, motor controls, telecom, and switching circuits. These resistors operate in temperatures from -55°C to +155°C, ensuring reliability in demanding environments. They include features like partial discharge up to 2,000Vrms, voltage proof up to 4,000V DC, and are designed for direct heatsink mounting, making them ideal for high-power electronic systems.
Ohmite TGHHV500RJE High Power Resistor Specifications:
- Power Rating at 85°C: 120W (derating required)
- Resistance Range: 0.12 to 1MΩ
- Temperature Coefficient: ±250ppm at +105°C
- Max. Work Voltage: 500V (up to 1,000V on request)
- Operating Temp: -55°C to +155°C
- Material: Nickel-plated copper contacts, Al2O3 substrate
- Dielectric Strength: Up to 4,000V DC
- Partial Discharge: Up to 2,000Vrms/80 pC
- Heat Resistance: Rn <0.35 KW
- Capacitance: 45pF
- Vibration Resistance: MIL-Std-202, Method 204
- Life Expectancy: 20 years, failure rate 8.3 x 10^-7 failures/hour
- Max. Torque for Base Plate: 1.5 Nm, for Contacts: 1.3 Nm
- Mounting: Direct onto heatsink with M4 screws
- Dimensions: Approx. 38.1mm x 31.35mm, height 15mm
