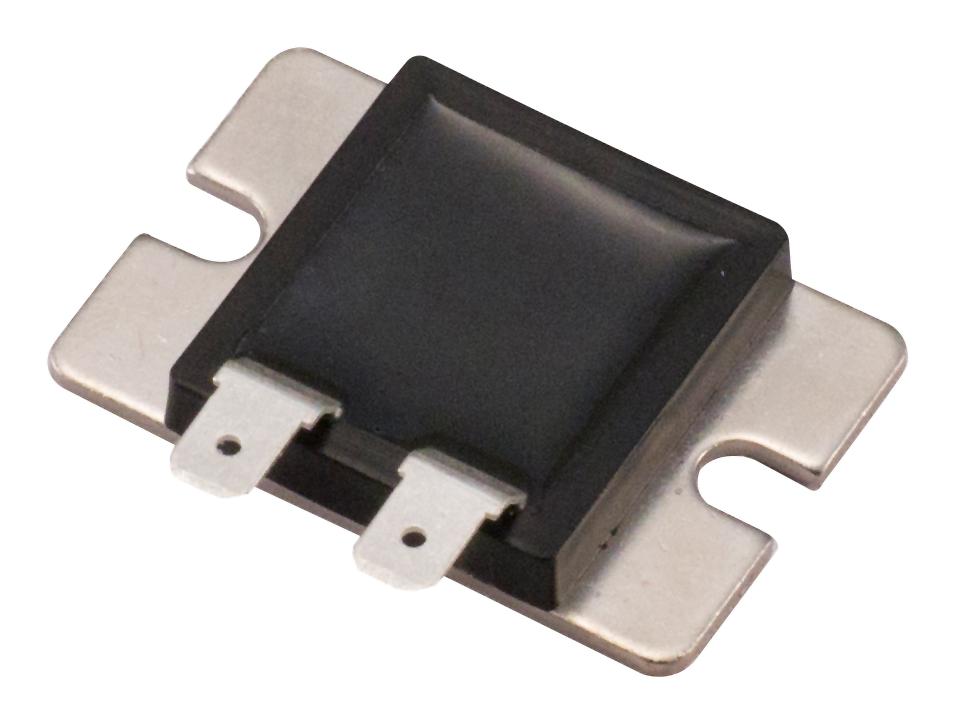

Ohmite TGHMV5K00JE High-Power Resistor
The TGHM Series 300 Watt SOT-227 quick-connect high-power resistors offer reliable performance in demanding electrical applications. Capable of dissipating up to 300 watts at flange temperatures between -55°C and +25°C, they feature #187 quick connect tabs for easy installation. With a resistance range from 0.19 to 1MΩ, these vibration-proof resistors have a maximum voltage withstand of 2000 VAC for 60 seconds, a temperature range from -55°C to +175°C, and a weight of 24 grams. Made with Ni-plated copper flange and epoxy resin, they meet UL94V-0 flammability standards and are suitable for power electronics, surge protection, and high-frequency amplifiers.
Ohmite TGHMV5K00JE High-Power Resistor Specifications:
- Power Dissipation: 300 Watts at flange temperature -55°C to +25°C
- Resistance Range: 0.19 to 1MΩ (E24+ modified range)
- Resistance Tolerance: ±5%
- Maximum Voltage: 1000V; Withstanding Voltage: 2000 VAC for 60 seconds
- Thermal Resistance: 0.23 °C/W from resistor to flange
- Temperature Range: -55°C to +175°C
- Insulation Resistance: Over 1000MΩ between terminals and flange
- Vibration Resistance: IEC 60068-2-6 compliant, displacement 0.75mm or acceleration 100m/sec^2
- Flammability: UL94V-0; Weight: 24 grams
- Construction: Ni-plated copper flange, glass fiber-filled PA6 resin case, epoxy resin molding
- Terminal Type: #187 quick connect tabs, alumina ceramic substrate
- Torque Mounting: Max 1.6Nm, recommended 1.0Nm
Buy the OHMITE Series TGHM High-Power Resistors: TGHMV5K00JE
Purchase the OHMITE Series TGHMV5K00JE high-power resistor online now to enjoy reliable power dissipation up to 300 watts, vibration resistance, and high voltage withstand capabilities. Ideal for power electronics, surge protection, and high-frequency applications, these resistors feature quick-connect tabs and a wide resistance range from 0.19Ω to 1MΩ. Made with durable materials, meeting UL94V-0 flammability standards, and designed for easy installation with maximum torque of 1.6Nm. Order today for quality performance in demanding electrical environments.
Order your OHMITE Series TGHMV5K00JE high-power resistors today and ensure your projects benefit from dependable, vibration-proof performance and easy installation.
Frequently Asked Questions
Where can I buy Ohmite TGHMV5K00JE?
You can click on the BUY or RFQ button to purchase TGHMV5K00JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHMV5K00JE?
You can download the TGHMV5K00JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHMV5K00JE?
Ohmite
