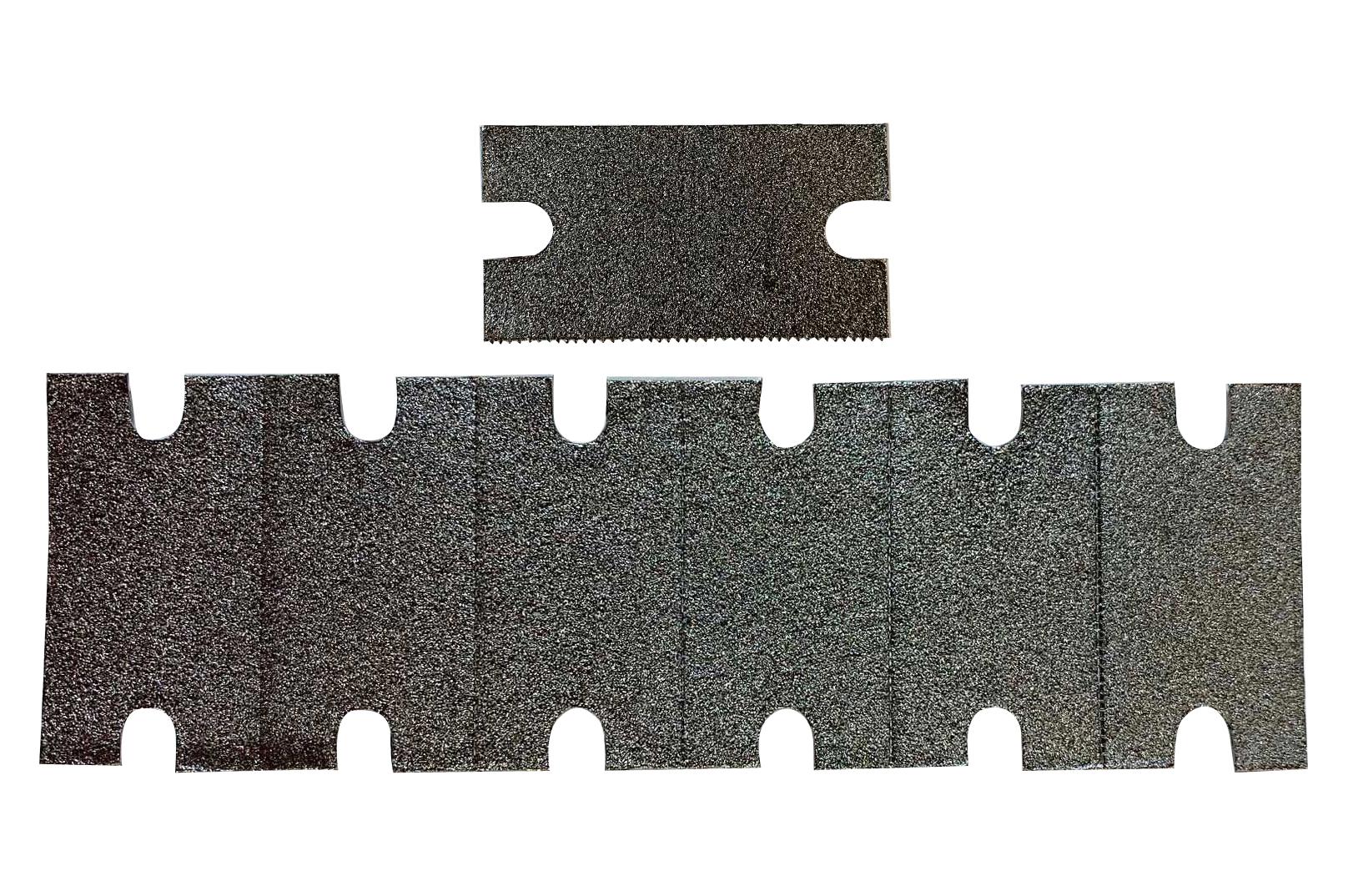

Ohmite TGHTP1 Thermal Interface Material
Ohmite's thermal interface material for heatsinkable devices features flexible graphite construction designed for reliable, long-lasting thermal performance in demanding electronics. This die-cut, foil-form TIM offers excellent surface contact and reduces hot spots with high in-plane thermal conductivity. It withstands extreme temperatures from -40°C to +400°C and maintains performance over thermal cycles without degradation or outgassing. Suitable for power modules, RF devices, and high-performance electronics, the material ensures consistent effectiveness, ease of installation, and optimal thermal management in critical applications.
Ohmite TGHTP1 Thermal Interface Material Specifications:
- Material: Flexible graphite
- Typical Thickness: 200um +20
- Thickness Range: 0.127 to 0.51mm
- Max. Clamping Force: 100KPa (15Psi)
- Operating Temperature: -40°C to +400°C
- Thermal Impedance: 0.49 K-cm2/W @ 200 kPa, 0.18 K-m2/W @ 700 kPa
- In-Plane Conductivity: 7-800 W/m·K @ 700 kPa
- Through-Thickness Conductivity: 5-19,000 S/cm
- Certifications: RoHS, UL94V-0 flammability rating
- Outgassing Losses: <0.1%
- Surface Compensation: Up to 0.030 mm roughness, 0.1 mm flatness
- Material Compression: 70% at 700 KPa
- Outgassing: Minimal, reduces fouling and outgassing issues
- Color: Black
- Application: Power modules, RF devices, UPS, inverters, motor drives, base stations, telecom, EV/HEV modules
- Part Number: TGHTP1
Buy the Ohmite Series TGH Thermal Interface Material: TGHTP1
Purchase the Ohmite Series TGH Thermal Interface Material TGHTP1 online today to enhance your electronic devices' thermal management. Designed for optimal heat transfer, this flexible graphite TIM offers maximum thermal conductivity, easy application, and durable performance in extreme temperatures from -40°C to +400°C. Its foil form factor simplifies assembly, eliminating the need for thermal grease or re-torque. Perfect for power modules, RF devices, and high-performance electronics, this material ensures efficient, long-lasting cooling to keep your devices operating reliably and at peak efficiency.
Order your Ohmite Series TGH thermal interface material TGHTP1 today and ensure reliable, high-performance heat dissipation for demanding power electronics.
