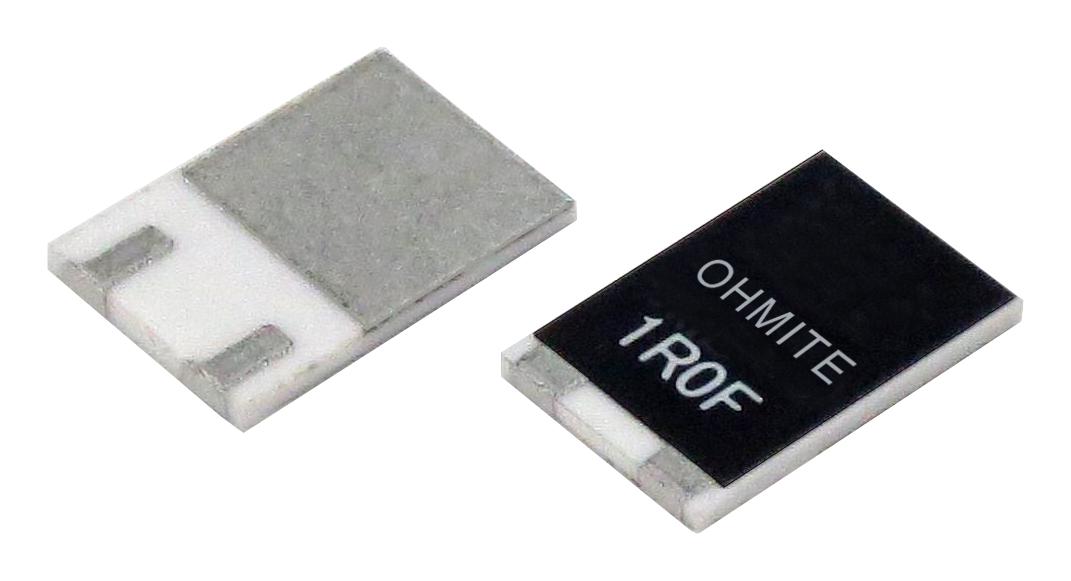

Ohmite TKH45P1R00FETR Thick Film Resistor
This 45W thick film resistor offers a compact, low-profile design suitable for automotive and high-speed pulse applications. It features excellent thermal management with a thermal resistance below 3.0°C/W, ensuring reliable cooling. The resistor operates within a temperature range of -55°C to +175°C, making it ideal for snubber, gate control, filter, and motor inverter circuits. It provides high precision with a ±1% tolerance, low inductance of 14.65 nH, and is surge capable, withstanding AC voltages up to 1500 VAC. Its robust construction ensures durability and consistent performance in demanding environments.
Ohmite TKH45P1R00FETR Thick Film Resistor Specifications:
- Rated Power: 45W at -55°C to 25°C backing metal temperature with simple foot print
- Maximum Operating Voltage: less than 500V
- Resistance Range: 0.022Ω - 510kΩ, available under 9.19Ω tolerance 5%
- Temperature Range: -55°C to +175°C
- Thermal Resistance: 3.0°C/W
- Tolerance: ±1%
- Resistance Material: Thick Film
- Capacitance: 2.65 pF
- Inductance: 14.65 nH
- Peak pulse energy: 200W at 10µs
- Soldering Heat Resistance: 350°C, 3 seconds
- Vibration Resistance: IEC60068-2-6
- Insulation Resistance: over 1,000MΩ
- Weight: 0.324 grams
- Lead Solderability: Over 95% coverage at 230°C for 3 seconds
Buy the Buy Series45W Thick Film Resistor Part Number TKH45P1R00FETR Online
Purchase the Series45W Thick Film Resistor TKH45P1R00FETR online today and ensure your applications benefit from high surge capacity, excellent thermal stability, and precise resistance. Engineered for demanding environments, this resistor provides reliable performance in automotive, filter, snubber, and inverter circuits. Its compact design, low thermal resistance, and broad temperature range make it suitable for high-temperature and high-voltage applications, ensuring durability and efficiency. Trust our online store for quick delivery and genuine products to power your projects seamlessly.
Order your Series45W Thick Film Resistor TKH45P1R00FETR today and enhance your electronic circuits with reliable high-power resistor performance.
Frequently Asked Questions
Where can I buy Ohmite TKH45P1R00FETR?
You can click on the BUY or RFQ button to purchase TKH45P1R00FETR from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TKH45P1R00FETR?
You can download the TKH45P1R00FETR datasheet or visit the Ohmite website for support.
Who is the manufacturer of TKH45P1R00FETR?
Ohmite
