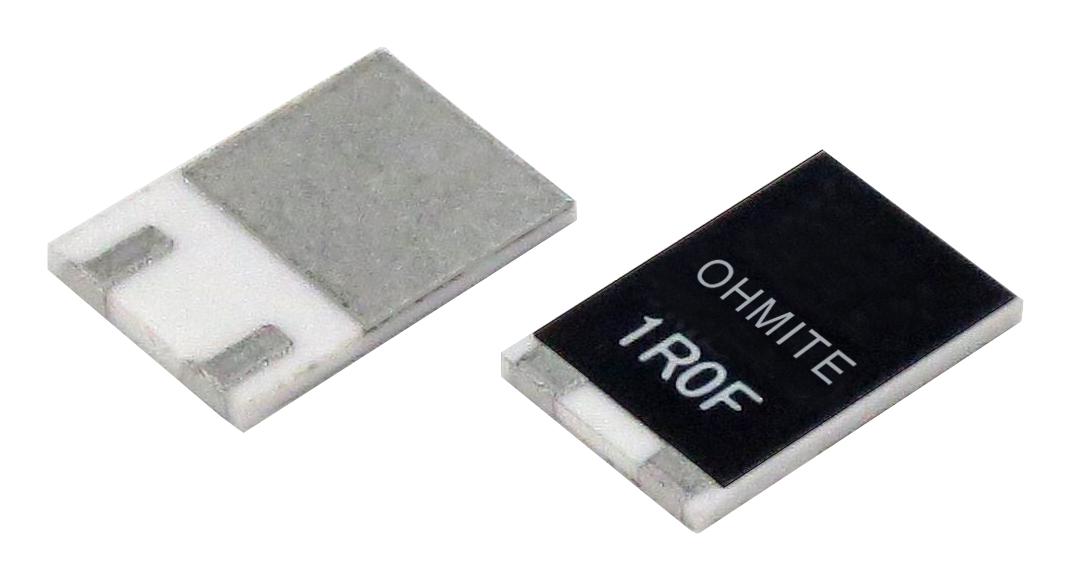

Ohmite TKH45P200RFETR Power Film Resistor
The 45W Thick Film Resistor in a TO-252 package offers high power handling and excellent thermal performance suitable for automotive and industrial applications. Operating from -55°C to +175°C, it provides low thermal resistance under 3.0°C/W for efficient cooling. Its low inductance of 14.65 nH and capacitance of 2.65 pF make it ideal for high-speed pulse circuits, including snubbers, motor control, and power inverters. The resistor features a resistance range of 0.022 to 510kΩ, with tolerances of ±1%, rated voltage up to 500V, and robust construction compliant with UL-94 V-0 standards.
Ohmite TKH45P200RFETR Power Film Resistor Specifications:
- Rated Power: 45W from -55°C to 25°C backing temperature; 1.0W on simple footprint
- Operating Temperature Range: -55°C to +175°C
- Resistance Range: 0.022 to 510kΩ; 0.020 to 9.19kΩ available
- Tolerance: ±1%
- Maximum Voltage: Less than 500V
- Thermal Resistance: 3.0°C/W
- Inductance: 14.65 nH typical
- Capacitance: 2.65 pF typical
- Lead Material: Copper, Ni plating & Tin plating, UL-94 V-0
- Dimensions: Length 8.70 mm, Width 4.0 mm, Height 3.75 mm
- Vibration Resistance: IEC60068-2-6 with ±0.25%
- Insulation Resistance: Over 1,000 MΩ between terminals and back metal
- Weight: 0.324 grams
- Solderability: Over 95% surface coverage at 230°C for 3 seconds
- Tape & Reel Packaging: 500 pcs per reel
Buy the OHMITE 45P200RFETR – Reliable Power Film Resistor for Industrial Applications
Enhance your electronic projects with the high-power, low-inductance, and thermally efficient film resistor. Designed for industrial and automotive use, this 45W resistor features a wide resistance range, low thermal resistance, and excellent pulse handling capabilities. Its compact TO-252 form factor ensures easy replacement and integration into high-speed pulse circuits, motor controls, snubbers, and power inverters. Perfect for demanding environments requiring durability, stability, and superior thermal management. Purchase online today to ensure your projects have dependable, high-quality power components.
Order your OHMITE Series45P200RFETR power resistor today and ensure reliable performance in demanding industrial and automotive circuits.
Frequently Asked Questions
Where can I buy Ohmite TKH45P200RFETR?
You can click on the BUY or RFQ button to purchase TKH45P200RFETR from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TKH45P200RFETR?
You can download the TKH45P200RFETR datasheet or visit the Ohmite website for support.
Who is the manufacturer of TKH45P200RFETR?
Ohmite
