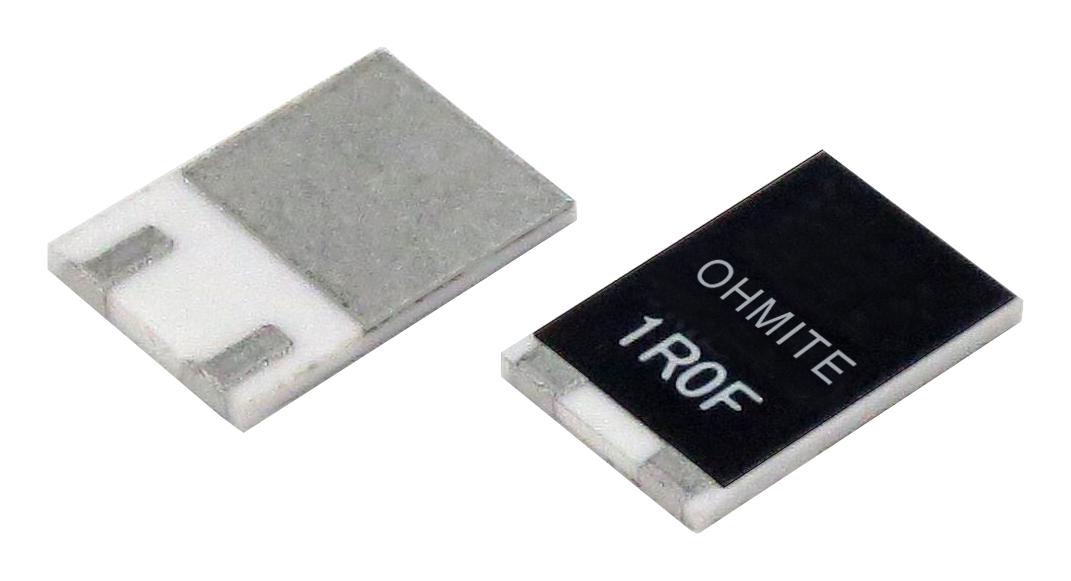

Ohmite TKH45P25R0FETR Thick Film Resistor
The 45W Thick Film Resistor series offers a compact, low profile, surge-capable design suitable for automotive and industrial applications. With a temperature range from -55°C to +175°C and a low thermal resistance of under 3.0°C/W, the resistor ensures excellent cooling performance. It provides high reliability with rated power of 45W, withstands voltages up to 500V, and features low inductance and capacitance for high-speed pulse operation. Ideal for snubber, gate control, filter, and inverter motor control applications, it is easy to replace and meets UL-94V-0 flame retardant standards.
Ohmite TKH45P25R0FETR Thick Film Resistor Specifications:
- Rated Power: 45W at -55°C to 25°C with heat-sink attached, 1.0W on simple footprint
- Temperature Range: -55°C to +175°C
- Thermal Resistance: 3.0°C/W
- Resistance Range: 0.022Ω to 510kΩ (available under 9.19Ω for tolerance 5%)
- Tolerance: ±1% (F)
- Maximum Voltage: less than 500V, withstands 1500VAC for 60 seconds
- Inductance: 14.65 nH (typical)
- Capacitance: 2.65 pF (typical)
- Operating Current: up to 10A
- Material: Thick film, nickel-plated terminals, epoxy resin molded body
- Dimensions (approximate): Length 40.3mm, width 13.90mm, height 24.0mm
- Solderability: Over 95% coverage at 230°C for 3 seconds
- Vibration Resistance: ±0.25% according to IEC 60068-2-6
- Insulation Resistance: Over 1000MΩ between terminals and back metal
- Compliance: RoHS
Buy the Ohmite Series TKH 45W Thick Film Resistor: TKH45P25R0FETR
Experience the dependability of the Ohmite Series TKH45P25R0FETR high-power thick film resistor. Perfect for automotive, inverter, and industrial applications, it combines compact size with excellent thermal performance. Its broad temperature range from -55°C to +175°C allows operation in extreme conditions, making it suitable for snubber, gate control, filter, and high-speed pulse circuits. Easy to replace and RoHS compliant, this resistor ensures longevity, high reliability, and exceptional electrical characteristics for demanding projects. Purchase online today for guaranteed quality and performance.
Order your Ohmite Series TKH45P25R0FETR today and enhance your high-power circuits with reliable, surge-capable thick film resistors designed for demanding environments.
Frequently Asked Questions
Where can I buy Ohmite TKH45P25R0FETR?
You can click on the BUY or RFQ button to purchase TKH45P25R0FETR from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TKH45P25R0FETR?
You can download the TKH45P25R0FETR datasheet or visit the Ohmite website for support.
Who is the manufacturer of TKH45P25R0FETR?
Ohmite
