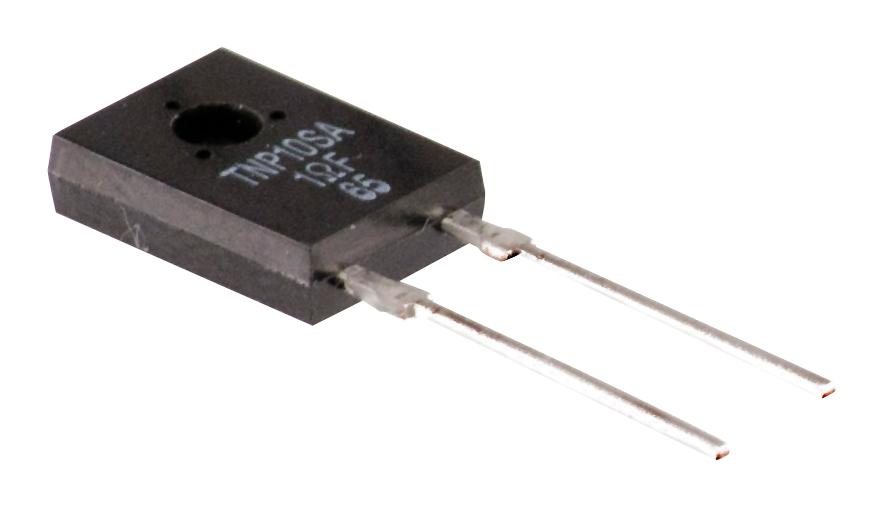

Ohmite TNP10SC200RFE High Power Resistor
The TNP10 series is a high power, thin film TO-126 resistor designed for reliable performance in electronic circuits. Capable of handling 1W in free air and 10W with proper heatsinking, it features a non-inductive design suitable for high-speed applications. This resistor exhibits low noise, high-frequency operation, and excellent thermal stability. Its resistance range extends from 0.1Ω to 51kΩ with multiple tolerance options (+/- 1%, 5%). Ideal for constant current sources, motor control, audio systems, and measurement tasks, it complies with UL94-VO flammability standards, withstands 2000VAC dielectric voltage, and functions over -55°C to +155°C temperature range.
Ohmite TNP10SC200RFE High Power Resistor Specifications:
- Resistance Range: 0.1Ω to 51kΩ
- Wattage: 10W (with heatsink)
- Tolerance: +1%, +5%
- Temperature Range: -55°C to +155°C
- Dielectric Withstanding Voltage: 2000VAC 60 sec.
- Insulation Resistance: Over 1000MΩ between terminals and flange
- Flange Temp: -55°C to +25°C at rated power
- Material: Resistor (Ni-Cr or RuO), Conductor (Cu), Molding (epoxy UL94-VO), Substrate (alumina)
- Resistance TCR: +250 ppm/°C (varies by resistance value)
- Rated Power: 10W at flange, 1W in free air
- Vibration: Meets IEC 60068-2-6
Buy the Ohmite TNP10SC200RFE – Reliable High Power Resistor for Industrial Applications
Purchase the Ohmite TNP10SC200RFE high power resistor online today to enhance your electronic projects. Designed for demanding applications, this resistor offers excellent thermal management, low noise, and high-frequency performance. Its robust construction ensures durability in motor control, audio, measurement, and constant current applications. With a heat sinkable design, it can handle 10W with proper heatsinking, providing reliable operation over a broad temperature range. Get your high-quality, trusted resistor now for your industrial and electronic needs.
Order your Ohmite TNP10SC200RFE series heatsinkable resistor today and ensure your high-power circuits operate reliably with superior thermal stability.
Frequently Asked Questions
Where can I buy Ohmite TNP10SC200RFE?
You can click on the BUY or RFQ button to purchase TNP10SC200RFE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TNP10SC200RFE?
You can download the TNP10SC200RFE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TNP10SC200RFE?
Ohmite
