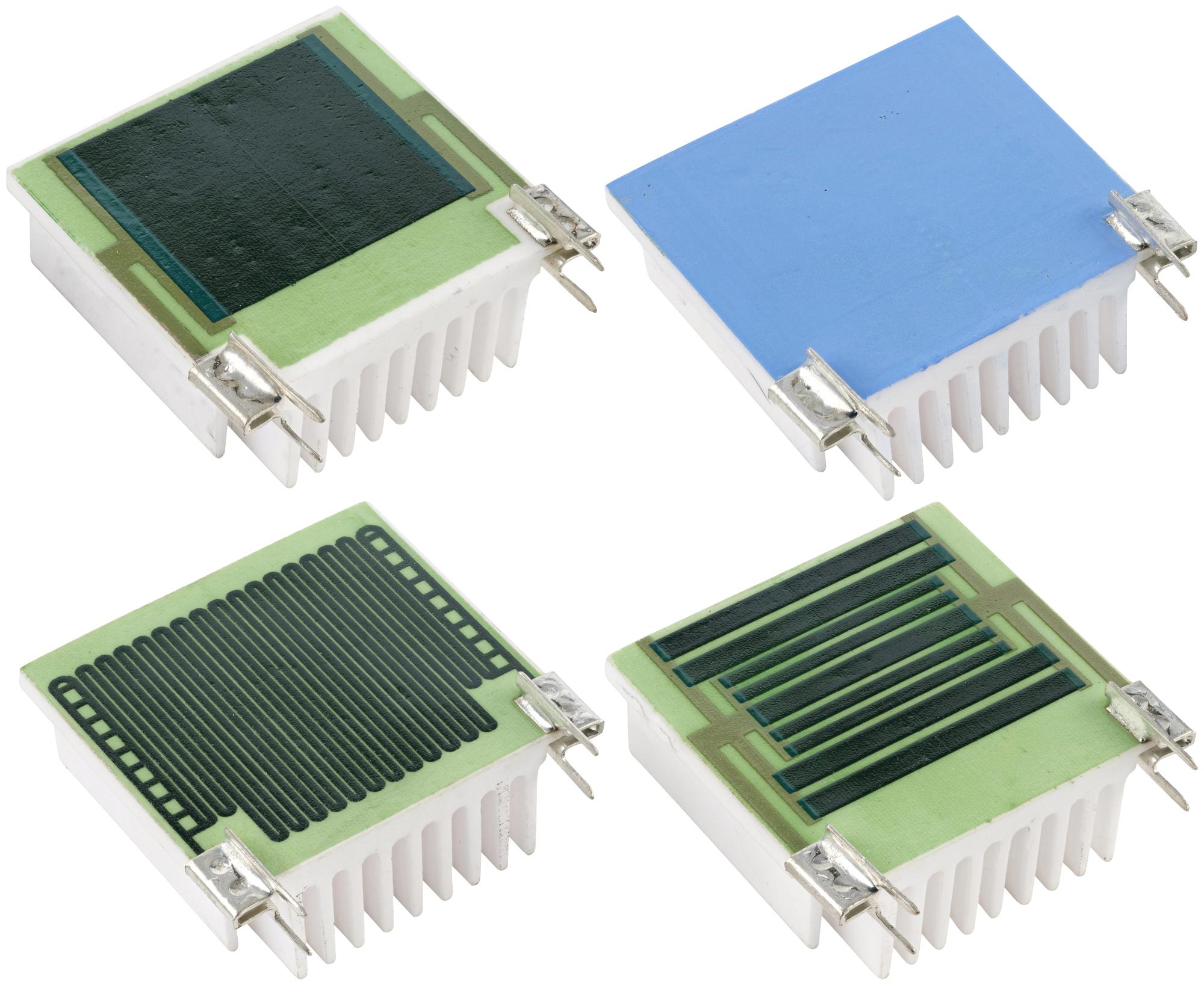

Ohmite TRHE01A270RJ2E Resistor Heatsink Assembly
The Ohmite TRH Series combines a resistor and ceramic heatsink into one efficient, board-mounted unit suitable for high voltage, power, and surge applications. Featuring advanced thick film printing, it offers a wide resistance range from 52 ohms to 10 megaohms, with electrical characteristics suitable for demanding environments. The series meets industry standards such as Mil-Std-202 and IEC 61000-4-5, with features including low inductance, high-temperature terminals, and dielectric coatings. It is ideal for use in power supplies, industrial equipment, and surge protection systems, providing reliable thermal management and resistance performance in a compact form.
Ohmite TRHE01A270RJ2E Resistor Heatsink Assembly Specifications:
- Resistance Range: 52 ohms to 10 Megaohms
- Power Rating: 30W at 25°C
- Resistance Tolerance: 1%, 5%, 10%
- Temperature Coefficient: <5% +400ppm
- Maximum Operating Voltage: 15KV, rated power 90min ON, 30min OFF for 1000 hours
- Temp Range: -55°C to +180°C
- Material: Thick film on 95% alumina substrate
- Terminal Construction: High-temp, solder plated phosphor bronze
- Dielectric Strength: >10,000MΩ (Mil-Std-202, Method 301)
- Vibration and Shock Resistance: Meets Mil-Std-202
- Solderability: Above 95% coverage, complies with Mil-Std-202, Method 208F
- Surge Immunity: Up to 4.5KV waveforms in accordance with IEC 61000-4-5
- Construction: Ceramic heatsink with resistor, low inductance 50-100nH
Buy the Buy Ohmite TRH Series Part Number TRHE01A270RJ2E Online
Purchase the Ohmite TRH Series resistor heatsink assembly online today to ensure high thermal efficiency, wide resistance range, and industry-standard compliance. Designed for power, surge, and high voltage applications, it combines durability with ease of installation. This board-mounted unit features advanced thick film technology on a ceramic substrate, offering excellent electrical performance with low inductance and high-temperature terminal construction. Ideal for industrial equipment and surge protection, order now for fast delivery and reliable performance.
Buy Ohmite TRHE01A270RJ2E now and experience unmatched reliability and thermal efficiency for high voltage and surge protection.
Frequently Asked Questions
Where can I buy Ohmite TRHE01A270RJ2E?
You can click on the BUY or RFQ button to purchase TRHE01A270RJ2E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TRHE01A270RJ2E?
You can download the TRHE01A270RJ2E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TRHE01A270RJ2E?
Ohmite
