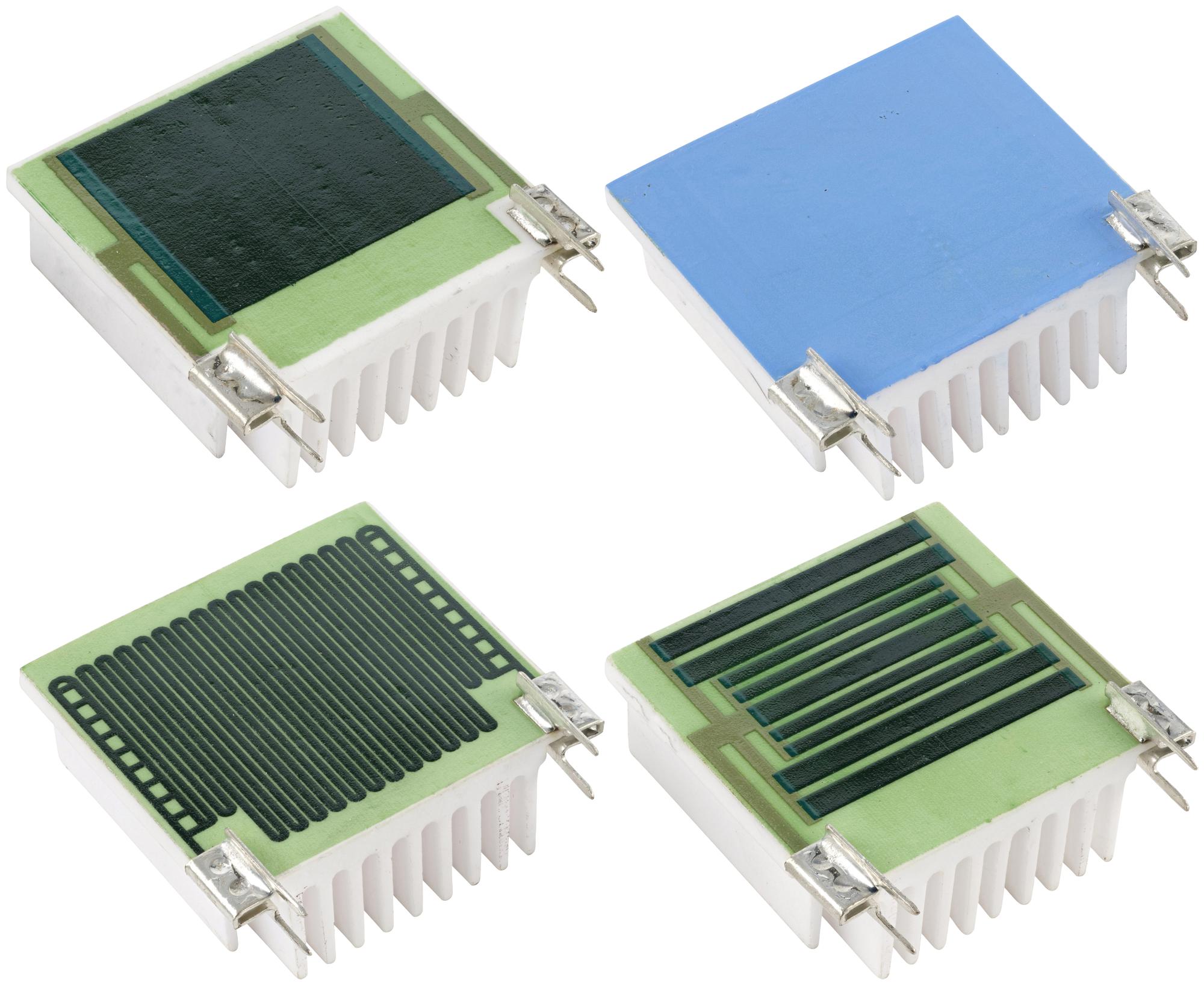

Ohmite TRHP01A50R0F2E Thick Film Resistor
The TRH Series by Ohmite combines resistor and heatsink in a single unit, designed for optimal thermal efficiency across various applications. These thick film resistors are mounted on ceramic heatsinks, offering features such as wide resistance ranges, high-temperature terminal construction, low inductance, and compliance with standards like Mil-Std-202 and IEC 61000-4-5. Suitable for continuous power, impulse energy, and high voltage applications, they ensure reliable performance in demanding environments, providing a cost-effective, space-saving solution for engineers and technicians.
Ohmite TRHP01A50R0F2E Thick Film Resistor Specifications:
- Resistance Range: 52 to 10 MegΩ
- Power Rating: 30W at 25°C
- Resistance Tolerance: 1%, 5%, 10%
- Temperature Range: -55°C to +180°C
- Resistance Types: Continuous Power, Impulse Energy, High Voltage
- Resistance Range: 1000Ω to 10KΩ (TRHP), 5Ω to 1KΩ (TRHE), 100kΩ to 10MΩ (TRHV)
- Resistance Coefficient: <5: +400ppm, >59-100MΩ: +100ppm
- Resistance TCR: >1000MΩ: +100ppm
- Terminals: Solder Plated Phosphor Bronze
- Dielectric Strength: >10,000MΩ or greater
- Mounting: Board-mounted, PC-compatible
- Standards: Mil-Std-202, IEC 61000-4-5
- Construction: Ceramic heatsink with thick film resistor
- Material: Alumina substrate, glass or silicone coating
- Solderability: >95%
- Voltage: Up to 15kV (not exceeding rated power)
- Impact Resistance: Conforms to Mil-Std-202
Buy the Ohmite Series TRH Thick Film Resistor: TRHP01A50R0F2E
Experience reliable high-power performance with the Ohmite Series TRH Thick Film Resistor and Heatsink. Designed for applications demanding high voltage, impulse energy, and continuous power, this unit offers excellent thermal management and durability. Its wide resistance range, low inductance, and compliance with industry standards make it ideal for board mounting in demanding environments. Purchase online today to benefit from quick delivery, competitive pricing, and the trusted quality that ensures your projects remain efficient and dependable under peak conditions.
Order your Ohmite Series TRH resistor and heatsink combo today and ensure high thermal efficiency for your power and surge applications.
Frequently Asked Questions
Where can I buy Ohmite TRHP01A50R0F2E?
You can click on the BUY or RFQ button to purchase TRHP01A50R0F2E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TRHP01A50R0F2E?
You can download the TRHP01A50R0F2E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TRHP01A50R0F2E?
Ohmite
