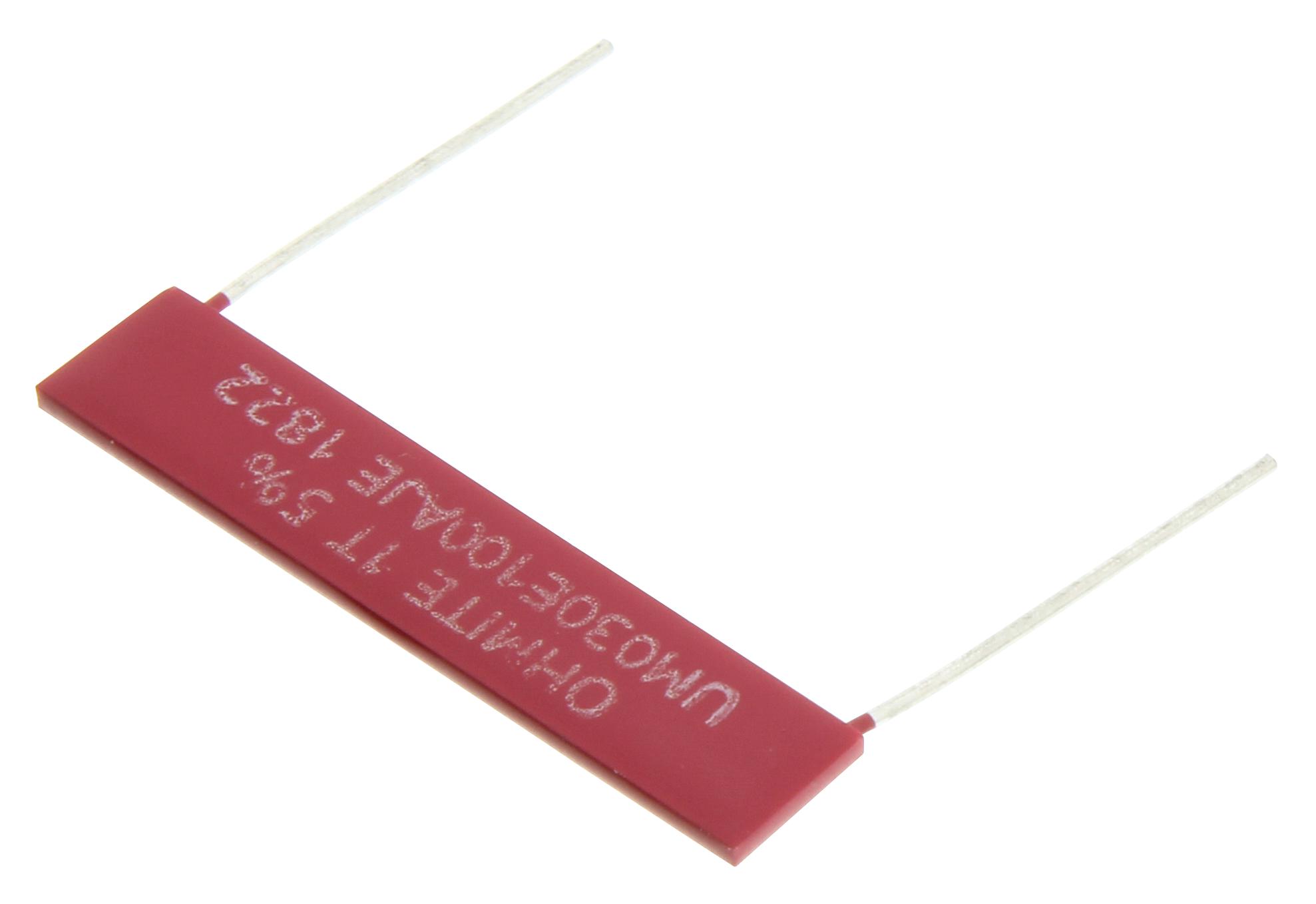

Ohmite UM030E100AJE High Voltage Resistor
The product is a high voltage thick film resistor series designed for demanding applications requiring high resistance values up to 10 teraohms. Features include radial leads with variable spacing, robust silicone coating for climatic protection, and options for special versions. It covers resistance ranges from 1M to 10T, with power ratings of 1.0 to 12W and working voltages up to 30KV. The resistors are suitable for high-temperature environments, resistant to most solvents, and meet strict stability and durability standards for industrial use.
Ohmite UM030E100AJE High Voltage Resistor Specifications:
- Power Ratings: 1.0W to 12W depending on series
- Working Voltage: up to 30KV
- Resistance Range: 1M to 10T ohms
- Tolerance: 0.25-30%
- TCR: 25ppm/K to 1000ppm/K depending on series
- VCR: 1ppm/V to 250ppm/V
- Operating Temp Range: -55°C to +125°C
- Climatic Protection: Silicone coating resistant to most solvents
- Stability at Max Voltage: <1-2% over 1000 hours at 125°C
- Size: varies by model, approx. 20mm in length
- Certifications: RoHS Compliant
- Dimensions: Length varies from 25mm to 50mm, Lead Spacing adjustable by bending
Buy the Ohmite Series UM030 High Voltage Thick Film Resistor 10-1 PartNumber
Purchase the high voltage thick film resistor series online for reliable high resistance and temperature stability, ideal for industrial and high-voltage applications. These resistors feature robust silicone coatings for climatic protection, radial leads with adjustable spacing, and resistance values up to 10 teraohms. With high voltage ratings up to 30KV and excellent stability over temperature ranges from -55°C to +125°C, they are perfect for demanding environments. Order now for fast delivery and ensure your projects benefit from premium, durable components.
Get Ohmite UM030 high voltage thick film resistor today—designed for precision and durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Ohmite UM030E100AJE?
You can click on the BUY or RFQ button to purchase UM030E100AJE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part UM030E100AJE?
You can download the UM030E100AJE datasheet or visit the Ohmite website for support.
Who is the manufacturer of UM030E100AJE?
Ohmite
