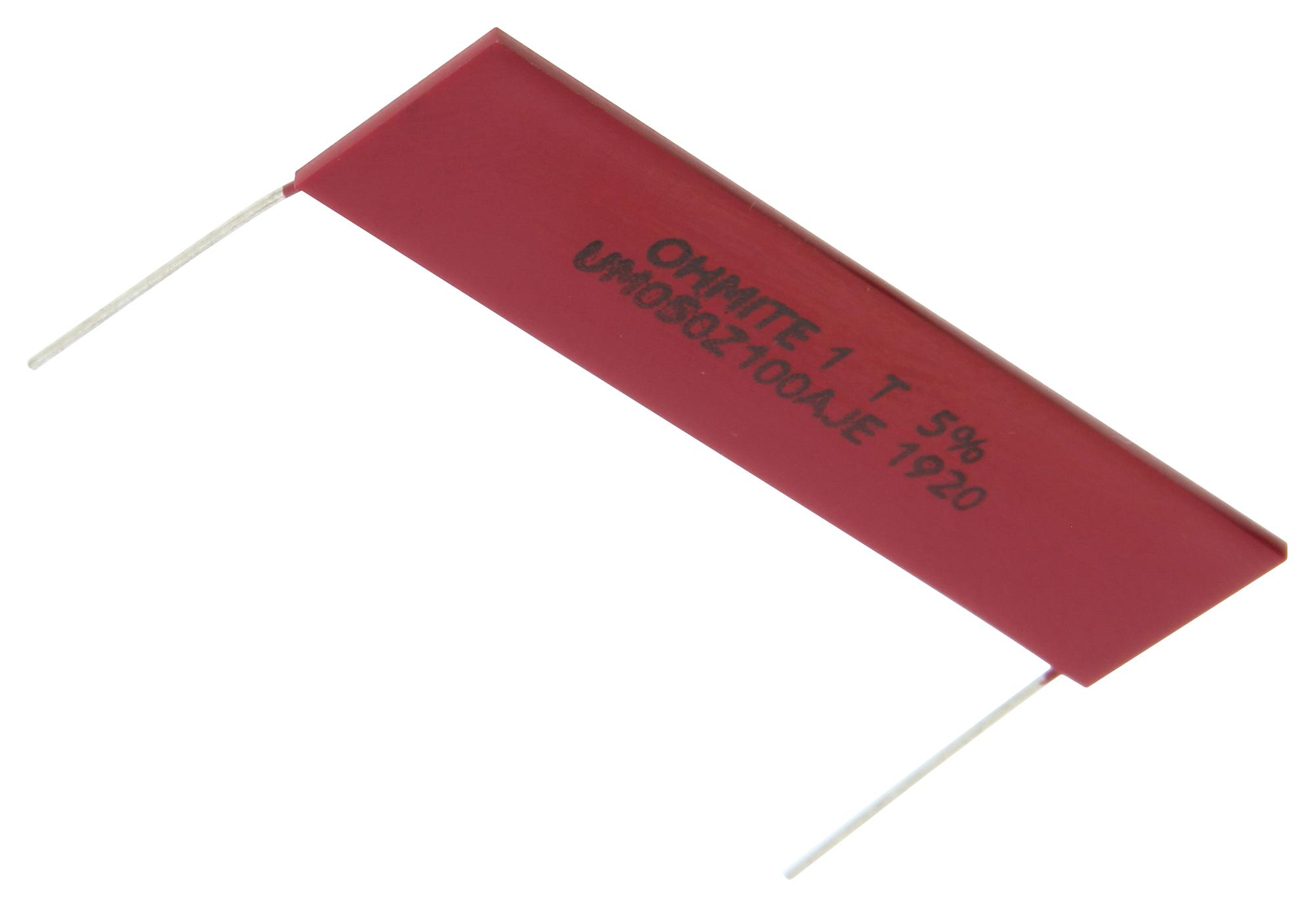

Ohmite UM050Z100AJE high voltage resistor
The UM050Z100AJE is a high-voltage thick film resistor designed for industrial applications requiring resistance values up to 10 teraohm. Featuring radial leads with variable spacing, it offers climatic protection via silicone coating and options for special versions. With a power rating of 3.0W and a maximum working voltage of 30KV, it provides stable performance over a temperature range of -55°C to +125°C. Its resistance tolerance ranges from 0.25% to 30%, with low TCR and VCR for reliable high-voltage performance in demanding environments.
Ohmite UM050Z100AJE high voltage resistor Specifications:
- Series Power Rating: 3.0W
- Working Voltage: 30KV
- Resistance Range: 1M-10T
- Tolerance: 0.25-30%
- Temperature Range: -55°C to +125°C
- Climatic Protection: Silicone coating
- Lead Spacing: Variable by bending, 1.97 inches (50 mm) standard
- Resistance Values: Up to 10 teraohm
- Operating Temp. Range: -55°C ... +125°C
- VCR: 25ppm/V to 25ppm/V depending on resistance value
Buy the Ohmite UM050Z100AJE – Reliable High-Voltage Thick Film Resistor for Industrial Applications
Purchase the Ohmite UM050Z100AJE high-voltage thick film resistor online now to benefit from superior resistance up to 10 teraohm and a maximum voltage of 30KV. Designed for industrial applications, it features robust silicone coating for climatic protection, radial leads for flexible installation, and TCR/VCR stability under demanding conditions. With resistance tolerance as low as 0.25%, it guarantees consistent performance across a broad temperature range of -55°C to +125°C. Secure your high-voltage needs with reliable, high-quality resistors available for immediate purchase.
Order your Ohmite series UM050Z100AJE high-voltage thick film resistor today and ensure your industrial systems have dependable, high-voltage resistance performance.
Frequently Asked Questions
Where can I buy Ohmite UM050Z100AJE?
You can click on the BUY or RFQ button to purchase UM050Z100AJE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part UM050Z100AJE?
You can download the UM050Z100AJE datasheet or visit the Ohmite website for support.
Who is the manufacturer of UM050Z100AJE?
Ohmite
