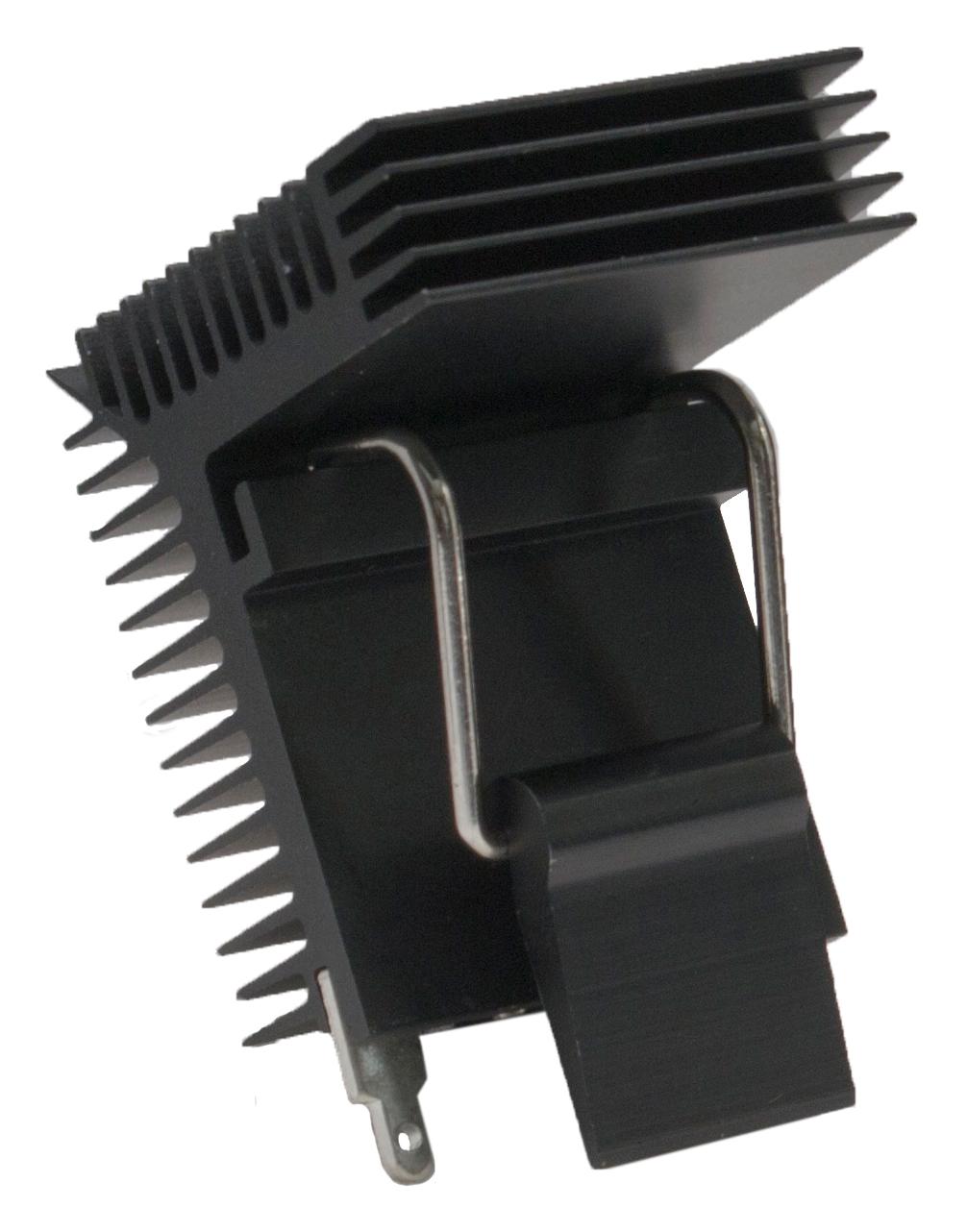

Ohmite VRA55101E High Power Heatsink
The VR series heatsinks from Ohmite are designed for efficient thermal management of high-power electronic components. Compatible with TO-220, TO-247, and IXYS packages, these low-profile heatsinks feature a large surface area and a universal cam clip system for easy configuration. Crafted from AL6063-T5, they are suitable for compact 1U or 2U packaging with forced convection cooling, ensuring reliable heat dissipation. The series includes anodized variants for enhanced durability, supporting power dissipation of up to 20W, making them ideal for demanding applications in power electronics and high-performance circuits.
Ohmite VRA55101E High Power Heatsink Specifications:
- Material: AL6063-T5
- Surface Area: Large surface for efficient heat dissipation
- Compatibility: TO-220, TO-247, IXYS packages
- Finish: Anodized or degreased options available
- Length: 27mm (VRA-27-101E), 55mm (VRA-55-101E)
- Weight: 14g (VRA-27-101E), 23g (VRA-55-101E)
- Color: Standard anodized finish
- Power Dissipation: Up to 20W
- Appropriate for: Compact and high-power electronic assemblies
- Mounting: Thru-hole, soldered onto PCBs with universal cam clip system
- Cooling: Designed for forced convection airflow
- Certification: RoHS compliant
Buy the Buy Ohmite Heat Sink Part Number VRA55101E Online
Purchase the Ohmite VRA55101E heatsink online today to ensure efficient thermal dissipation for your high-power applications. Crafted from durable AL6063-T5 aluminum with anodized finish, this heatsink is compatible with TO-220, TO-247, and IXYS packages. Its large surface area and universal cam clip system make installation straightforward, providing excellent cooling for compact electronic assemblies. With a power dissipation capacity of up to 20W, it is ideal for demanding environments requiring reliable heat management, ensuring circuit longevity and optimal performance.
Buy Ohmite VRA55101E heatsink now and enjoy reliable thermal management for high-power electronic devices with large surface area and universal clip system.
Frequently Asked Questions
Where can I buy Ohmite VRA55101E?
You can click on the BUY or RFQ button to purchase VRA55101E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part VRA55101E?
You can download the VRA55101E datasheet or visit the Ohmite website for support.
Who is the manufacturer of VRA55101E?
Ohmite
