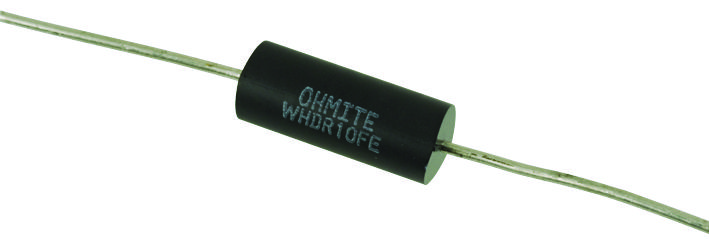

Ohmite WHE5K0FET High Power Resistor
This high power resistor is designed for applications that demand substantial power dissipation, offering high durability and reliable performance under demanding electrical conditions. Made with ceramic core CeramTec Rubalit alumina and encapsulated with epoxy molding compound for added protection. It features stainless steel end caps, copper wire leads with 100% Sn coating, and a wide operating temperature range from -55°C to +150°C. Suitable for high-current, high-temperature environments, it meets MIL standards and is available in various wattages and resistance values.
Ohmite WHE5K0FET High Power Resistor Specifications:
- Power Rating: 0.5W to 5W
- Resistance Range: 0.100Ω to 50KΩ
- Material: Ceramic core CeramTec Rubalit alumina
- Encapsulation: Epoxy molding compound
- End Caps: Stainless steel, precision formed
- Leads: Copper wire, 100% Sn (lead free) coating
- Resistance Wire: ISAOHM wire, TC +20ppm/°C
- Temperature Rating: -55°C to +150°C
- Maximum Working Voltage: Derates from 100% @ +70°C to 0% @ +150°C
- Insulation Resistance: >109Ω at 500V rms for 1 min
- Dielectric Withstanding Voltage: >500V rms for 1 min
- Storage Temperature: -65°C to +175°C
- Standard Tolerance: D (0.5%), F (1.0%)
- Operating Temp: -55°C to +150°C
Buy the OHMITE Series WHE5K0FET: High Power Resistor
Purchase the high power resistor WHE5K0FET online today—designed for demanding electrical applications requiring high durability, wide temperature range, and reliable performance. Perfect for high-current circuits and high-temperature environments, it features ceramic core technology, epoxy encapsulation, and stainless steel end caps. With various resistance values and wattages available, this resistor ensures optimal performance in industrial, engineering, and electronic applications. Order now for quick delivery and long-term reliability in your projects.
Get OHMITE WHE5K0FET today—built for high power dissipation and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite WHE5K0FET?
You can click on the BUY or RFQ button to purchase WHE5K0FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part WHE5K0FET?
You can download the WHE5K0FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of WHE5K0FET?
Ohmite
