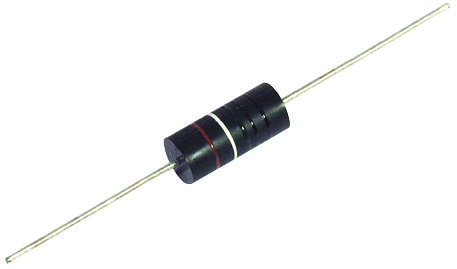

Ohmite WNE1K0FET High Power Resistor
A high-power resistor suitable for demanding electronic applications, designed to handle elevated current levels and dissipate significant heat efficiently. This precision wirewound resistor features ceramic core CeramTec Rubalit® 85% alumina, epoxy encapsulation using advanced IC mold technologies, and stainless steel end caps for durability. It supports power ratings from 0.5W to 5W with resistance values up to 50KΩ, operating temperatures from -55°C to +150°C, and includes features such as low inductance, high temperature tolerance, and exceptional stability for industrial and electronic circuit applications.
Ohmite WNE1K0FET High Power Resistor Specifications:
- Power Ratings: 0.5W to 5W
- Resistance Range: 0.100Ω to 50KΩ
- Core Material: CeramTec Rubalit® 85% alumina
- Encapsulation: Epoxy molding compound (SUMICON 1100/1200)
- End Caps: Precision stainless steel
- Wire Material: Copper wire, 100% Sn (lead free)
- Resistance Wire: ISAOHM® wire with TC +20ppm/°C
- Operating Temperature: -55°C to +150°C
- Max Voltage: Up to 250V based on resistance value
- Resistance Tolerance: D (0.5%), F (1.0%), J (5.0%)
- Dielectric Withstanding Voltage: >500V rms for 1 min
- Insulation Resistance: >10⁹Ω at 500V rms for 1 min
- Thermal Shock Resistance: -55°C to +150°C with 5 cycles
- Short-time Overload: 5x rated wattage for 5 sec
- Solderability: >90% contact area with solder, bath temp. 260°C for 5 sec
- High Temperature Exposure: 175°C for 250 hours
- Low Temperature Storage: -65°C for 24 hours
- Size: Length varies with model, typical diameters 2.54mm to 7.50mm
- Wiring: Taped reel packaging with pitch of approximately 5mm to 10mm
Buy the Brand WNE1K0FET – Reliable High-Power Resistor for Industrial Applications
Purchase the high-power resistor online today for your demanding electronic projects. Designed for stability, high heat dissipation, and durability, this resistor is perfect for industrial equipment and precision circuits. Featuring ceramic core technology, epoxy encapsulation, and stainless steel end caps, it ensures high performance across a wide temperature range. Available in multiple resistance values with tight tolerances, it provides reliable operation under thermal shock, overload, and environmental stress. Buy now to enhance your electronic designs with quality resistors built for industrial applications.
Buy Brand WNE1K0FET now and experience unmatched reliability and performance with high power handling and thermal stability.
Frequently Asked Questions
Where can I buy Ohmite WNE1K0FET?
You can click on the BUY or RFQ button to purchase WNE1K0FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part WNE1K0FET?
You can download the WNE1K0FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of WNE1K0FET?
Ohmite
