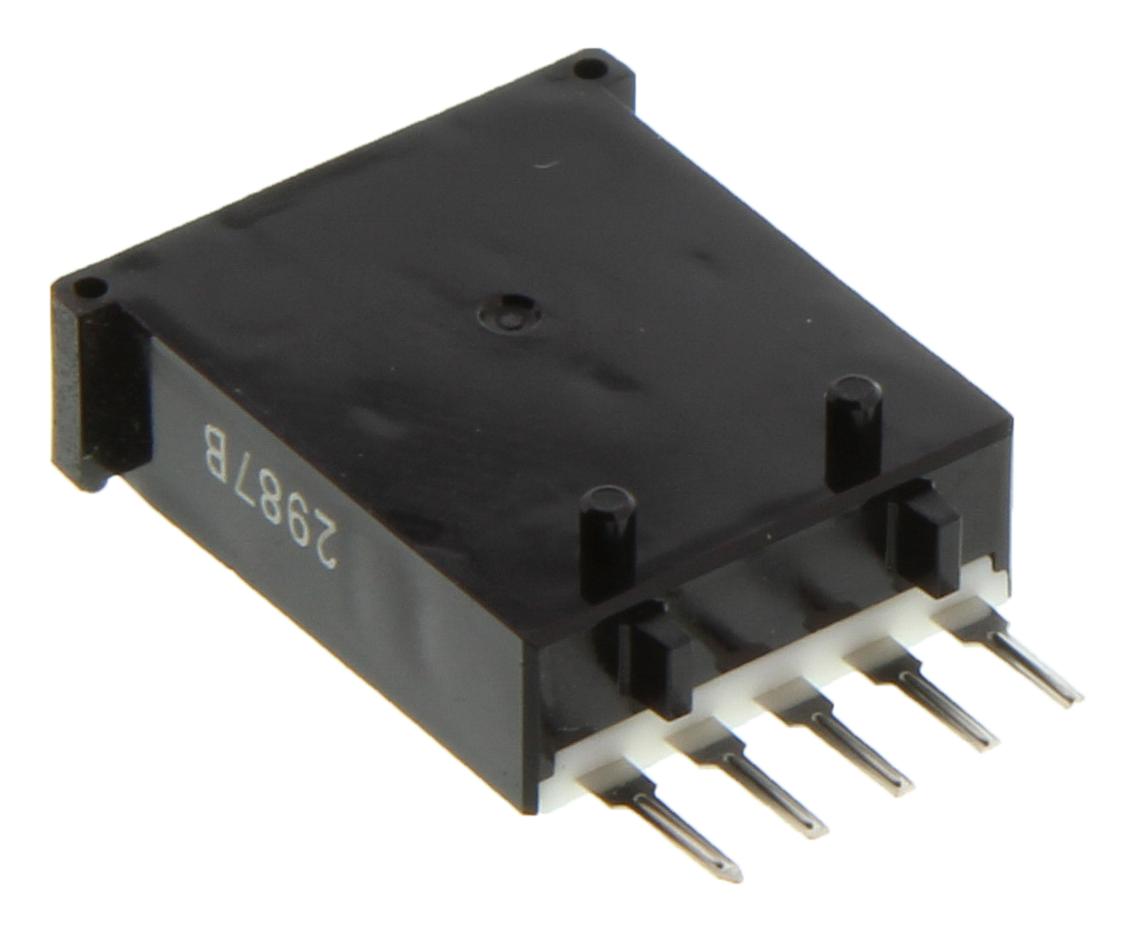

OMRON ELECTRONIC COMPONENTS A7D2061 Thumbwheel Switch
This thumbwheel switch series features ultra-small, low-cost, push-operated models designed with all-in-one construction for high reliability and minimal parts. Crafted with long-lasting resin springs, they ensure durability with approximately 30,000 mechanical operations. Available with models featuring stoppers to restrict setting range and pen-push types that prevent accidental operation. Suitable for panel mounting via screw or snap-in methods, these switches are ideal for compact control panels in industrial automation, offering resistive load capacity of 3 to 30 VDC, mechanical durability, and wide temperature and humidity tolerance for reliable long-term use.
OMRON ELECTRONIC COMPONENTS A7D2061 Thumbwheel Switch Specifications:
- Switching capacity: 3 to 30 VDC resistive load
- Continuous carry current: 700 mA
- Contact resistance: 200 mΩ max
- Insulation resistance: 409 MΩ min. (at 800 VDC)
- Dielectric strength: 1,000 VAC, 50/60 Hz for 1 min
- Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude
- Shock resistance: 500 m/s² min.
- Mechanical durability: approx. 30,000 operations
- Electrical durability: approx. 20,000 operations
- Operating temperature: -10°C to 70°C
- Storage temperature: -20°C to 80°C
- Ambient humidity: operating 45%–85%
- Max. operating force: 3.43 N
- Dimensions: see detailed models (A7D-206, A7DP-206), panel thickness 1–2 mm, panel cutout varies by model
- Mounting options: screw or snap-in
Buy the Buy Omron Thumbwheel Switch Part Number A7D2061 Online
Discover the durability and precision of Omron thumbwheel switches. Easy to mount, with long-lasting springs and optional stoppers, these compact switches are perfect for industrial control panels. Designed for high reliability, they support resistive loads up to 30 VDC and endure thousands of operations. Their small size allows easy integration into tight spaces, making them ideal for automation, machinery, and process control. Purchase online now for fast delivery and dependable performance in your projects.
Order your Omron SeriesA7D2061 push-operated thumbwheel switch today and enhance your control panel with reliable and precise switching performance.
