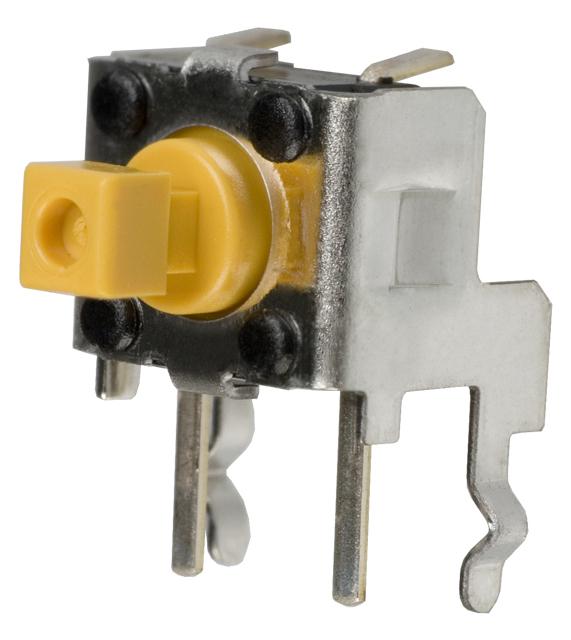

OMRON ELECTRONIC COMPONENTS B3F3155 Tactile Switch
The Omron B3F series are tactile switches available in 6mm x 6mm and 12mm x 12mm sizes, featuring various models such as standard, side-operated, long durability, high-force, and high-reliability gold-plated versions. Gold-plated models offer improved contact reliability, resistance to corrosive gases, and prevention of insulation failure caused by ion migration in harsh environments. These switches provide extended mechanical and electrical durability and are available in taped radial, vertical, and high-force types. They feature flat and projected plunger options, DIP terminals, operating forces of 0.98N, 1.27N, 1.47N, 1.76N, 2.55N, and 4.9N. The switches utilize SPST-NO contact configuration with a maximum switching capacity of 50mA at 24VDC. Type B32 key tops are available exclusively for the projected plunger models. Suitable for industrial, power management, automation, and process control applications.
OMRON ELECTRONIC COMPONENTS B3F3155 Tactile Switch Specifications:
- Size: 6mm x 6mm and 12mm x 12mm
- Contact Material: Silver, gold-plated options available
- Contact Resistance: 100 mΩ max.
- Operating Force: 0.98N to 4.9N
- Maximum Current: 50mA at 24VDC
- Contact Form: SPST-NO
- Durability: up to 10 million operations
- Temperature Range: -25°C to +70°C
- Maximum Switching Voltage: 24VDC
- Physical Types: Flat plunger, projected plunger, radial, vertical, high-force models
- Protection: IEC IP00
- Key Top: B32-series key tops available for projected types
- RoHS Compliant
- Mounting: Through-hole and tape packaging
Buy the Buy Omron B3F Part Number 3155 Online
Purchase your Omron B3F series tactile switch online today to benefit from excellent contact reliability, extended durability, and versatile mounting options. Ideal for automation, industrial equipment, and power management systems, these switches provide precision feedback with a maximum current of 50mA at 24VDC. Featuring models with gold-plated contacts for harsh environments and various sizes including 6mm x 6mm and 12mm x 12mm, they are suitable for diverse control and electronic applications. Order now for quick delivery and seamless integration into your projects.
Order your Omron Series B3F 3155 tactile switch today and ensure reliable performance for your industrial automation projects.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS B3F3155?
You can click on the BUY or RFQ button to purchase B3F3155 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part B3F3155?
You can download the B3F3155 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of B3F3155?
OMRON ELECTRONIC COMPONENTS
