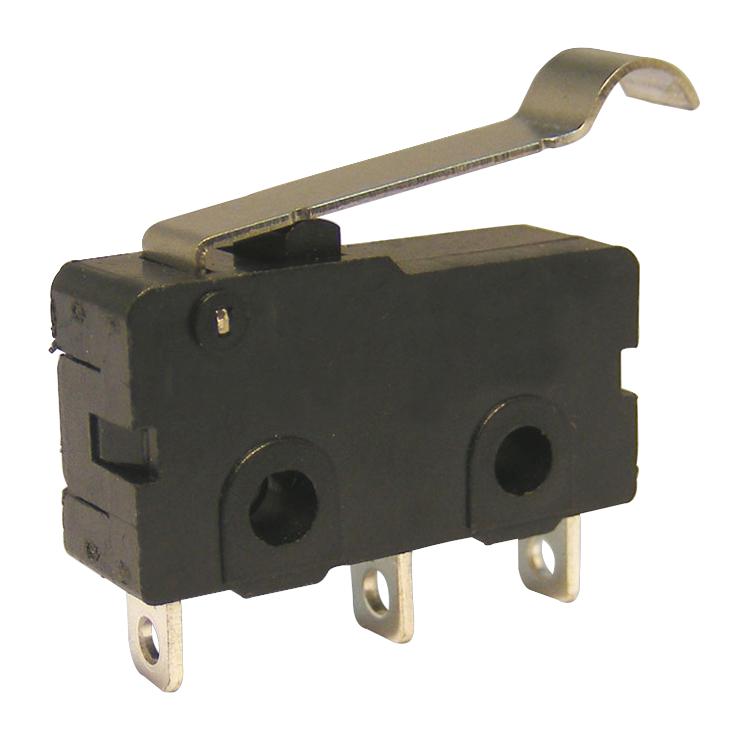

OMRON ELECTRONIC COMPONENTS D2F01FL3D3 Micro Switch
The D2F series is an ultra subminiature basic switch designed for industrial applications requiring compact, reliable switching solutions. Featuring multiple terminal variations including PCB, self-clinching, and solder types, it offers high load ratings up to 5A and robust construction with long-lasting snap mechanisms made from precise split springs. These switches are RoHS compliant, suitable for a wide range of operating forces and actuation types such as pin plungers, hinge, and roller levers. Ideal for space-constrained environments demanding durability and versatile mounting options for various control systems.
OMRON ELECTRONIC COMPONENTS D2F01FL3D3 Micro Switch Specifications:
- Ratings: 125 VAC 3A, 125 VAC 1A (Low operating force), 30 VDC 0.1A, 250 VAC 5A
- Maximum Operating Force: 1.47 N (150 gf) for pin plunger models, 0.74 N (75 gf) for low force models
- Actuator types include pin plunger, hinge lever, hinge roller lever, simulated roller levers (R1.3 and R2.5), with respective operation force and travel characteristics
- Terminals: PCB straight, self-clinching, right-angled, left-angled, solder, compact solder, and hinge lever models
- Contact form: SPDT with silver alloy or gold alloy contact materials, 0.25 mm contact gap
- Rated loads: 125 VAC 3A or 1A, 30 VDC 0.1A or 2A, 250 VAC 5A, depending on model
- Electrical resistance: 100 mΩ max, dielectric strength: 1500 VAC min.
- Mechanical durability: up to 1,000,000 operations, with vibration resistance of 10-55 Hz, 1.5 mm amplitude
- Operating temperature: -40°C to +85°C, humidity up to 85%
- Weight: approximately 0.5 g for pin plunger models
- Mounting: use M2 screws with torque of 0.08-0.1 N-m (0.8-1 kgf-cm)
Buy the OMRON Series D2F Micro Switch Compact Reliable Control Component: D2F01FL3D3
Enhance your control systems with the reliable and versatile OMRON Micro Switch D2F series. Engineered for durability and compact spaces, this switch supports multiple terminal configurations, high load ratings up to 5A, and RoHS compliance. Perfect for automation, industrial machinery, and control panels, it ensures long-lasting performance under demanding conditions. Easy to mount with various actuator options, the D2F series delivers consistent contact reliability, making it an excellent choice for engineers and technicians seeking quality and precision in miniature switching solutions. Buy online today to upgrade your control systems with confidence.
Order your OMRON Series D2F ultra subminiature switch today and ensure dependable control in your compact automation projects.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS D2F01FL3D3?
You can click on the BUY or RFQ button to purchase D2F01FL3D3 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D2F01FL3D3?
You can download the D2F01FL3D3 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of D2F01FL3D3?
OMRON ELECTRONIC COMPONENTS
