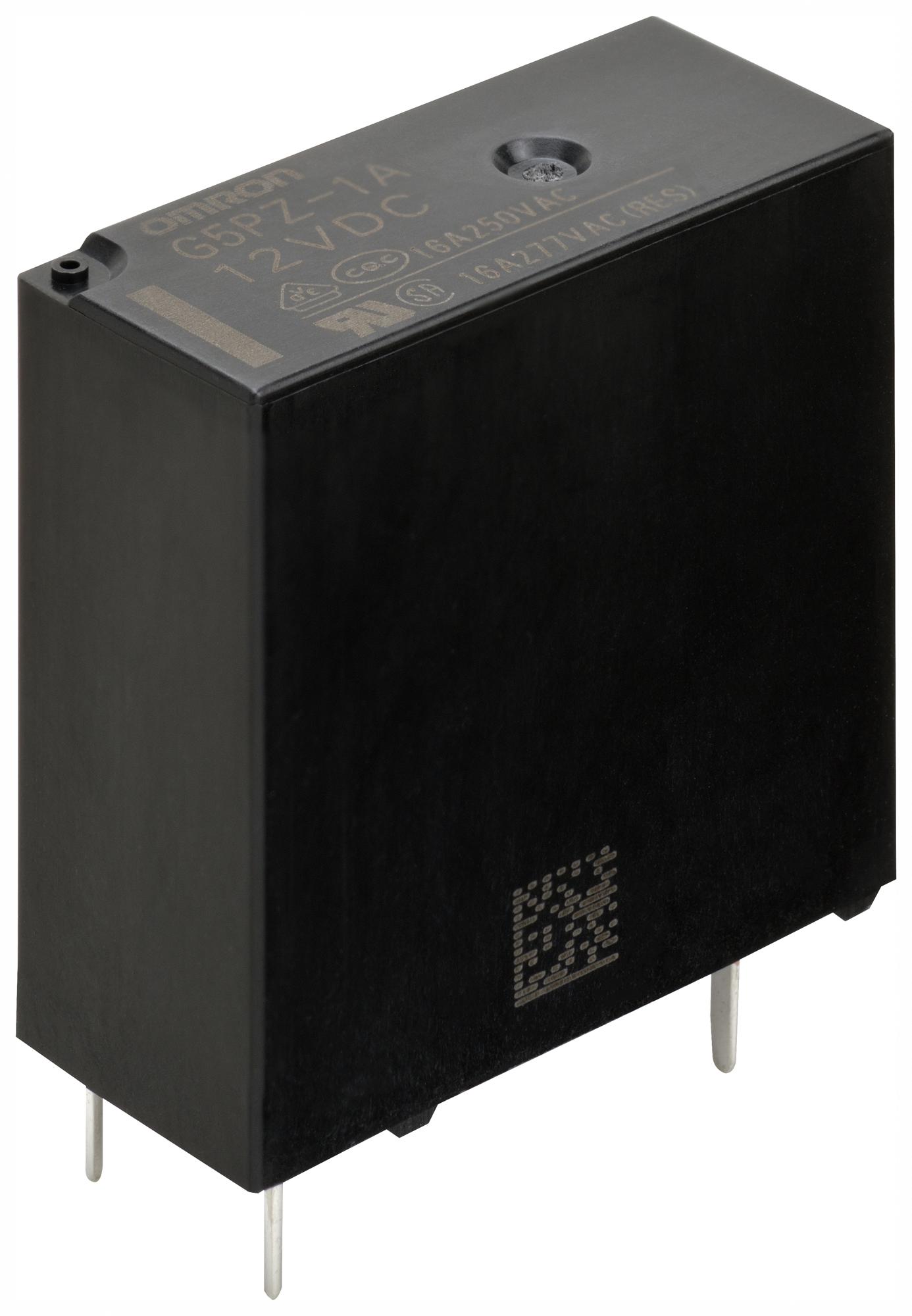

OMRON ELECTRONIC COMPONENTS G5PZ1AEDC24 Power Relay
The G5PZ PCB power relay is a compact, high-capacity relay designed for reliable switching in industrial and home appliances. It features a slim 10.5 mm width and single-pole configuration with a switching capacity of 16 A or 20 A, making it suitable for air conditioners, industrial machinery, and office equipment. Coils operate at 5 VDC, 12 VDC, or 24 VDC with low energy consumption. Certified by UL, CSA, VDE, and TUV, this relay offers reinforced insulation, high dielectric strength, and a maximum switching voltage of 250 VAC, ensuring safe, durable, and efficient performance under various conditions.
OMRON ELECTRONIC COMPONENTS G5PZ1AEDC24 Power Relay Specifications:
- Width: 10.5 mm
- Poles: 1
- Contact Form: SPST-NO (1a)
- Rated Load: 16 A at 250 VAC / 20 A at 250 VAC
- Coil Voltage: 5 VDC, 12 VDC, 24 VDC
- Coil Resistance: 47 Ω (5 VDC), 272 Ω (12 VDC), 1087 Ω (24 VDC)
- Power Consumption: Approx. 530 mW (5 VDC), 133 mW (24 VDC)
- Insulation Distance: Minimum 6.4 mm
- Impulse Withstand Voltage: 10 kV
- Maximum Switching Voltage: 250 VAC
- Certification: UL Recognized, CSA Certified, EN/EC certified, TUV Certified, CQC Certified
- Operating Temperature: -40°C to +70°C
- Vibration Resistance: 10 to 55 Hz, 0.75 mm amplitude
- Shock Resistance: 200 m/s²
- Durability: 100,000 mechanical operations, 50,000 electrical operations (20 A, 250 VAC)
Buy the OMRON Series G5PZ PCB Power Relay: G5PZ1AEDC24
Secure your automation system with the OMRON G5PZ1AEDC24 power relay, offering high capacity switching of 20 A, compact design of 10.5 mm, and reliable certification. Ideal for industrial and home appliances, this relay ensures safety with reinforced insulation, low coil energy consumption, and a wide operating temperature range. Purchase online today and benefit from fast delivery, genuine quality, and superior durability. Make your automation more efficient and dependable with this high-performance relay designed for demanding environments.
Buy OMRON G5PZ1AEDC24 now and experience unmatched reliability and performance in your automation projects.
