OMRON ELECTRONIC COMPONENTS G5Q14DC5 PCB Power Relay
The G5Q series is a compact, PCB-mounted relay with a single pole design, offering excellent electrical isolation with 8,000V impulse withstand voltage. It provides reliable switching of loads up to 10A for various industrial, control, and home appliance applications. The relay consumes low coil power—200 mW for SPST-NO models—and complies with UL Class-F insulation standards. Its small size and high-performance characteristics make it suitable for control equipment, HVAC systems, and consumer electronics, ensuring safety and efficiency in demanding environments.
OMRON ELECTRONIC COMPONENTS G5Q14DC5 PCB Power Relay Specifications:
- Poles: 1
- Contact current: 10A at 250VAC (NO), 3A at 250VAC (NC)
- Contact load: Resistive load up to 10A/250VAC
- Impulse withstand voltage between coil and contacts: 8,000V
- Coil power consumption: 200 mW (SPST-NO), 400 mW (SPDT)
- Coil insulation system: Class F (UL 1446)
- Dielectric strength: 4,000 VAC between coil and contacts
- Operating temperature: -40°C to +105°C (standard), -40°C to +85°C (high-capacity model)
- Weight: Approx. 6.5g
- Mounting: PCB, compact size
- Standards: UL Recognized, CSA Certified, RoHS compliant
- Insulation material: Group Mla, V-0 flammability class UL94

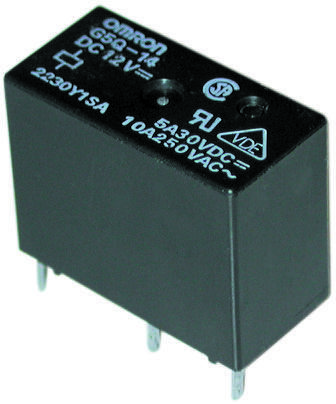

Buy the OMRON Series G Series Relay: G5Q14DC5
Buy the OMRON Series G5Q14DC5 relay online now for dependable switching performance in industrial, HVAC, and consumer electronics. Its compact design, low coil power consumption, and high impulse withstand voltage ensure safety and efficiency. Perfect for applications requiring a 10A load capacity with UL Class-F insulation. Enjoy fast delivery and trusted quality when you purchase this high-performance PCB relay online, making your control systems more reliable and safe.
Order your OMRON Series G5Q14DC5 relay today and ensure reliable switching and high isolation for industrial control and electronic applications.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G5Q14DC5?
You can click on the BUY or RFQ button to purchase G5Q14DC5 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G5Q14DC5?
You can download the G5Q14DC5 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G5Q14DC5?
OMRON ELECTRONIC COMPONENTS
