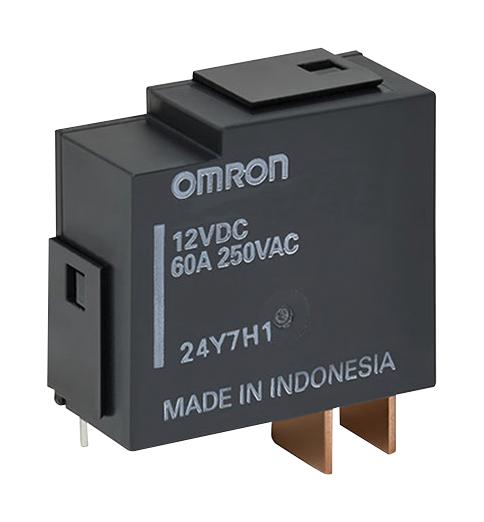

OMRON ELECTRONIC COMPONENTS G9TAU1ATWDC12 AC Power Latching Relay
The G9TA AC Power Latching Relay is a high-current, compact relay capable of switching 60 A at 250 V. Equipped with magnetic latching force for vibration resistance, it offers low contact resistance and RoHS compliance. Suitable for smart meters, PV inverters, lighting control, and EV chargers, it features single and double-winding configurations, SPST-NO contact form, and various terminal options. Operating at -40°C to 85°C with a weight of approximately 42 g, it ensures reliable performance with low power consumption and durable contacts for efficient switching in industrial applications.
OMRON ELECTRONIC COMPONENTS G9TAU1ATWDC12 AC Power Latching Relay Specifications:
- Contact Resistance: 2mΩ max.
- Set Time: 30 ms max.
- Reset Time: 30 ms max.
- Minimum Pulse Width: 100 ms.
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 4,000 VAC, 1 min between coil and contacts; 6 kV impulse withstand voltage.
- Maximum Switching Capacity: 60 A at 250 VAC.
- Ambient Temperature: -40°C to 85°C.
- Weight: Approximately 42 g.
- Operating Humidity: 5% to 85%.
- Dimensions: Length varies by model, approx. 37.1 mm to 50.05 mm; Width and height depend on terminal type.
- Coil Voltage: External rated coil voltage, e.g., 12 VDC.
- Durability: Electrical operation 5,000 cycles under resistive or inductive load.
Buy the Omron Series G9TA AC Power Latching Relay: G9TAU1ATWDC12
Purchase the Omron G9TA series AC Power Latching Relay online today to ensure reliable high-current switching for your industrial and electronic systems. With a compact design, low contact resistance, and vibration-resistant magnetic latching force, this relay offers excellent performance for smart meters, PV inverters, lighting control, and EV chargers. It features various terminal options, operates from -40°C to 85°C, and withstands demanding environments. Ensure energy-efficient, safe, and durable switching in your applications with this high-quality, RoHS-compliant relay available for quick online purchase.
Get Omron G9TAU1ATWDC12 today—built for precision, high current switching, and long-lasting durability.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G9TAU1ATWDC12?
You can click on the BUY or RFQ button to purchase G9TAU1ATWDC12 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G9TAU1ATWDC12?
You can download the G9TAU1ATWDC12 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G9TAU1ATWDC12?
OMRON ELECTRONIC COMPONENTS
