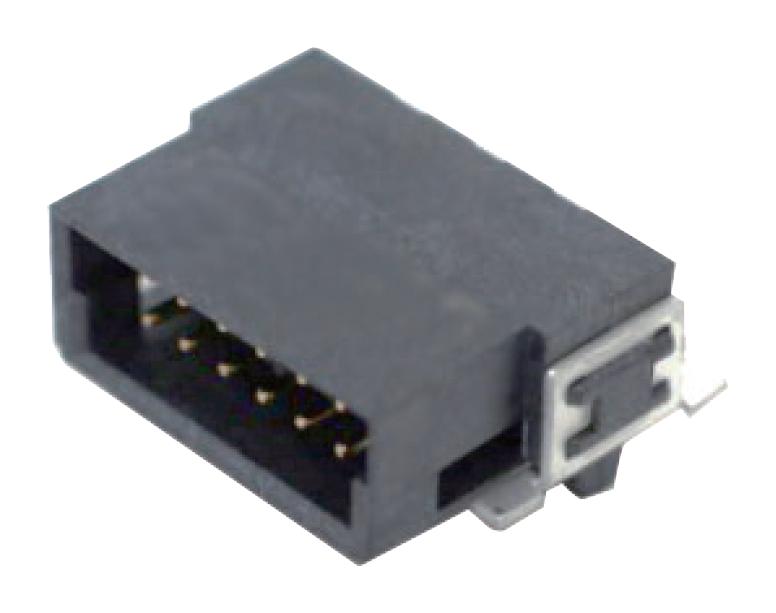

OMRON ELECTRONIC COMPONENTS XH5A2615N SMT connector
The XH5A2615N is a versatile SMT connector with a 1.27 mm pitch, suitable for circuit board-to-board and board-to-cable connections. It features reliable surface-mount technology, compatible with reflow mounting, and offers various contact numbers, stacking heights, and connection directions like vertical, horizontal, or stacking. This RoHS-compliant connector has multiple variants including straight and right-angle configurations, suitable for applications requiring robust electrical and mechanical performance in automation and industrial equipment. Designed for ease of assembly and durability, it's ideal for complex electronic systems.
OMRON ELECTRONIC COMPONENTS XH5A2615N SMT connector Specifications:
- Pitch: 1.27 mm
- RoHS Compliant
- Materials: Copper alloy contacts, LCP housing, PBT cover
- Rated current: 1A
- Rated voltage: 100 VAC
- Contact resistance: Max 25 mΩ at 20 mV DC, 100A
- Insulation resistance: Minimum 1000 MQ at 100 VDC
- Dielectric strength: 500 VAC for 1 minute
- Temperature range: -55°C to +105°C
- Soldering: Max temperature 260°C for 20-40 seconds
- Packing options: Straight, right-angle, through-hole hold-down, connector for cable assembly
- Compatibility: Reflow soldering, surface-mount technology
- Optional features: Crimping sockets, hold-down parts, cable connectors
- Connector types: Straight socket, right-angle socket, plug, right-angle plug
- Applications: Industrial automation, electronic modules, circuit board interconnections
Buy the Omron XH5A2615N – Reliable SMT Connectors for Industrial Applications
Purchase the Omron XH5A2615N today for your electronic projects and industrial automation needs. This high-quality SMT connector features a 1.27 mm pitch, RoHS compliance, and options for vertical, horizontal, and stacking configurations. Designed for quick and reliable surface-mount assembly through reflow technology, it ensures strong electrical contact and mechanical stability. Suitable for circuit board-to-board connections and cable harnesses, it’s ideal for manufacturing, automation, and electronic device integration, providing durability, versatility, and ease of installation. Order online now to ensure seamless integration into your designs.
Get Omron XH5A2615N today—built for precision and long-lasting durability in complex electronic assemblies.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XH5A2615N?
You can click on the BUY or RFQ button to purchase XH5A2615N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XH5A2615N?
You can download the XH5A2615N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XH5A2615N?
OMRON ELECTRONIC COMPONENTS
