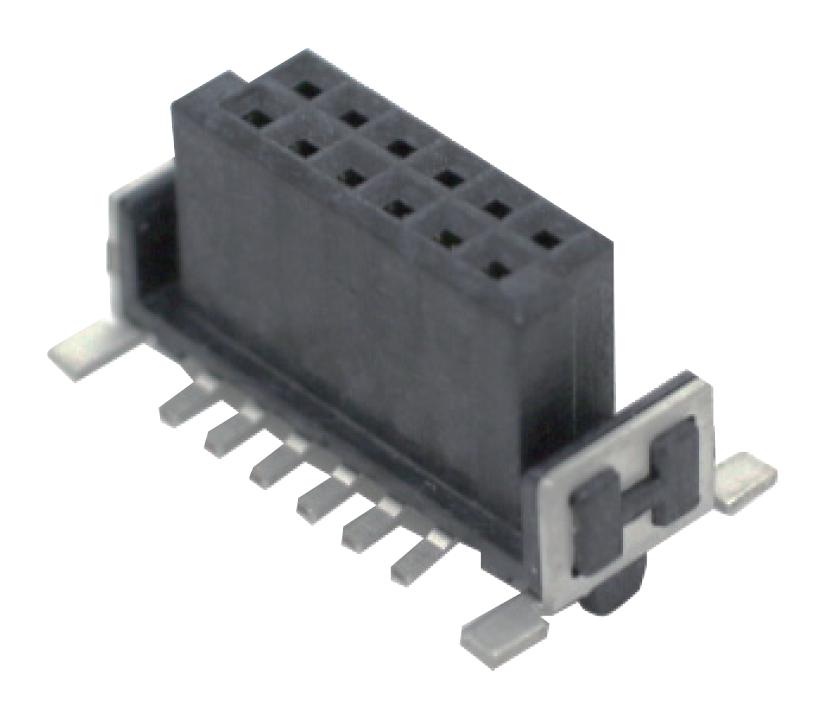

OMRON ELECTRONIC COMPONENTS XH5B12154N SMT Board Connector
The XH5 series comprises reliable SMT connectors with a 1.27-mm pitch, suitable for surface mounting on circuit boards. These connectors facilitate vertical, horizontal, and stacking connections, offering various contact counts and mounting configurations (SMT, hold-down type, and cable options). Designed for reflow mounting, they include crimp sockets and are RoHS compliant, making them ideal for automation, compact designs, and quick assembly in industrial applications. Their robustness and flexibility support complex electronic assembly needs with high mechanical stability and electrical reliability.
OMRON ELECTRONIC COMPONENTS XH5B12154N SMT Board Connector Specifications:
- Pitch: 1.27 mm
- Board Mounting Types: SMT, hold-down type, THR type
- Contact Counts: 12, 20, 26, 32, 40, 50, 68, 80
- Rated Current: 1A
- Rated Voltage: 100 VAC
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ at 100 VDC
- Dielectric Strength: 500 VAC for 1 min
- Material: Copper alloy with gold plating (contacts), LCP housing
- Operating Temperature: -55°C to +105°C
- Applicable Cable: AWG30 flat cable, tin-plated copper wire
- Maximum soldering temperature: 260°C within 20-40s
- Metal mask thickness for soldering: 0.18-0.20 mm
Buy the Omron XH5 – Reliable SMT Connectors for Industrial Applications
Enhance your electronic assemblies with the Omron XH5 series SMT connectors, featuring a 1.27-mm pitch,RoHS compliance, and a variety of mounting and contact options. Perfect for surface mounting, these connectors support vertical, horizontal, and stacking connections, ensuring secure and reliable electrical contact. Designed for reflow soldering with a maximum temperature of 260°C, they are ideal for automated manufacturing and compact electronics in industrial and consumer devices. Own these versatile connectors online today for quick, dependable connectivity solutions.
Order your Omron XH5 series connectors today and give your electronics projects the dependable connection quality they deserve.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XH5B12154N?
You can click on the BUY or RFQ button to purchase XH5B12154N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XH5B12154N?
You can download the XH5B12154N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XH5B12154N?
OMRON ELECTRONIC COMPONENTS
