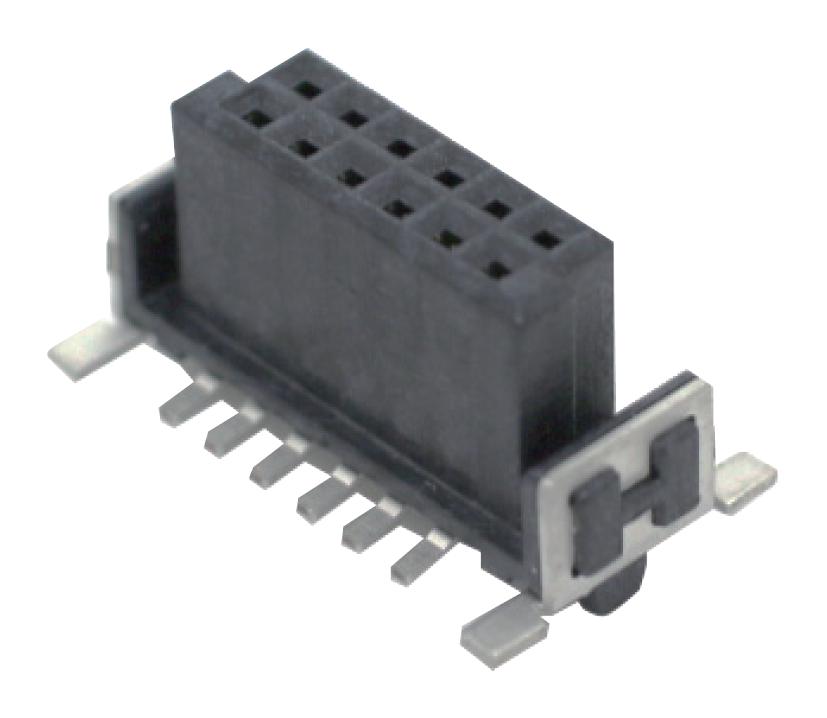

OMRON ELECTRONIC COMPONENTS XH5B68154N Surface Mount Connectors
The XH5 series consists of compact, high-reliability SMT connectors with 1.27 mm pitch, suitable for both board-to-board and cable connections. These connectors offer various mounting options, including right-angle, straight, and hold-down types, with compatibility for reflow mounting processes. They feature RoHS compliance, are designed for easy assembly with crimping sockets, and support high-density connections for automation. Ideal for electronic devices requiring secure, space-efficient connections in industrial and consumer electronics.
OMRON ELECTRONIC COMPONENTS XH5B68154N Surface Mount Connectors Specifications:
- Pitch: 1.27 mm
- Contact configurations: 12, 20, 26, 32, 40, 50, 68, 80 contacts
- Board mounting types: Terminal part, hold-down part, SMT, THR type
- Rated current: 1A
- Rated voltage: 100 VAC
- Housing: LCP (UL94 V-0), black; Cover: PBT (UL94 V-0), black
- Insulation resistance: 1000 MΩ min at 100 VDC
- Dielectric strength: 500 VAC for 1 min
- Contact material: Copper alloy, gold or tin plated
- Operating temperature: -55°C to +105°C
- Soldering conditions: Max 260°C for 20-40 seconds
- RoHS compliant, Crimping socket available, Suitable for reflow mounting
Buy the Buy Omron XH5 Series XH5B68154N Part Number 68154N Online
Purchase the Omron XH5 series surface mount connectors online for dependable, high-density electronic connections. These connectors support various mounting types, including right-angle and straight, with RoHS compliance. Designed for automated assembly, they feature a compact 1.27 mm pitch, rated for 1A and 100 VAC, with excellent insulation resistance and durability. Ideal for industrial and consumer electronics, these connectors ensure secure, space-saving connections in demanding environments. Buy now to enhance your product’s reliability and streamline your assembly process.
Order your Omron Series XH5B68154N connectors today and ensure reliable, space-efficient connections for your electronic projects.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XH5B68154N?
You can click on the BUY or RFQ button to purchase XH5B68154N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XH5B68154N?
You can download the XH5B68154N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XH5B68154N?
OMRON ELECTRONIC COMPONENTS
