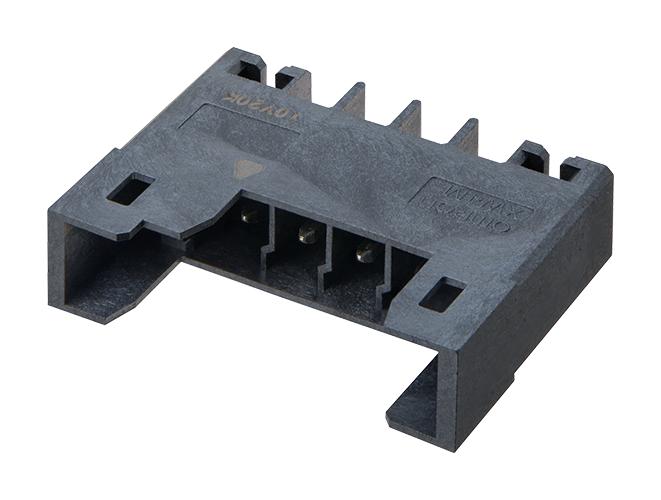

OMRON ELECTRONIC COMPONENTS XW4M16D1H1DS Push-in terminal connector
This 3.5mm-pitch push-in terminal block connector enhances wiring efficiency and facilitates easy insertion and removal. Its unique engagement structure ensures high contact reliability, making it suitable for reflow mounting processes. The product features standard pin identification, UL and RoHS compliance, and supports a range of wire sizes including solid and stranded wires with ferrules. Its durable materials, including tin and gold plating, combined with a wide temperature and humidity tolerance, ensure reliable performance in various environments. Ideal for industrial PCB wiring, inspection, and maintenance tasks.
OMRON ELECTRONIC COMPONENTS XW4M16D1H1DS Push-in terminal connector Specifications:
- Pitch: 3.5mm
- Rated Voltage: 300V (UL rated), 160V (IEC rated)
- Rated Current: BA
- Contact Material: Copper alloy with tin or gold plating
- Housing Material: LCP (UL94 V-0), PA (UL94 V-0), PBT (UL94 V-0)
- Wire Range: Solid wire 0.2mm² to 1.5mm², Stranded wire with ferrule 0.2mm² to 1.5mm²
- Insulation Stripping Length: 5 mm
- Operating Temperature: -40°C to 100°C
- Humidity Range: 5% to 85% RH
- Withstand Voltage: 1,600 VAC for 1 min
- Insertion Durability: 100 times
- Compliance: UL, RoHS
- Dimensions: Refer to detailed CAD data by model
Buy the Buy Omron 3.5mm-pitch Push-in Terminal Block Part Number XW4M16D1H1DS Online
Purchase the Omron 3.5mm-pitch push-in terminal connector XW4M16D1H1DS online today to enhance your wiring efficiency and assembly reliability. Its easy-to-insert, high-contact reliability design makes it ideal for PCB applications including industrial automation, inspection, and maintenance. This UL and RoHS compliant component features durable copper alloy contacts with tin and gold plating, supporting wire sizes from 0.2mm² to 1.5mm², and withstands temperatures from -40°C to 100°C. Order now for dependable performance in demanding environments and streamline your projects with high-quality connectors.
Order your Omron SeriesXW4M16D1H1DS high-reliability PCB connector today and ensure secure, efficient wiring for industrial applications.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XW4M16D1H1DS?
You can click on the BUY or RFQ button to purchase XW4M16D1H1DS from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XW4M16D1H1DS?
You can download the XW4M16D1H1DS datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XW4M16D1H1DS?
OMRON ELECTRONIC COMPONENTS
