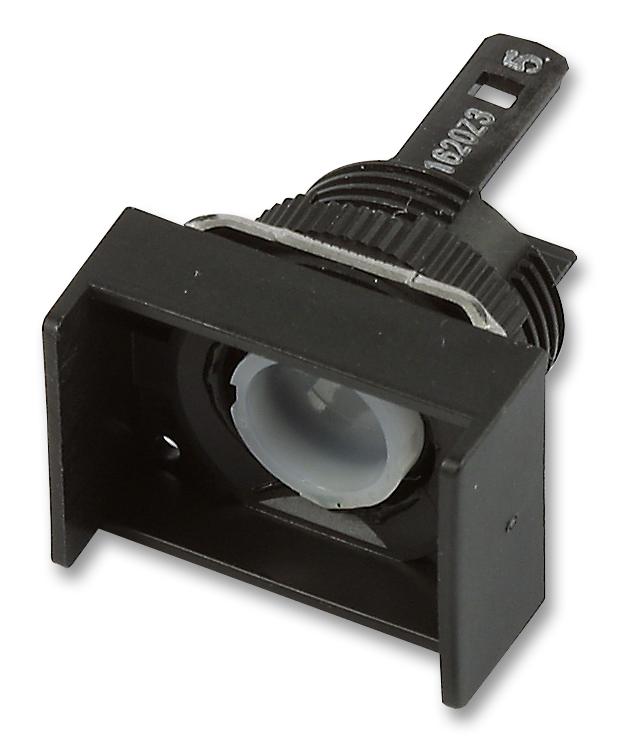

OMRON A165CJM Pushbutton Switch
The A16 pushbutton switch offers reliable momentary and alternate operation with both lighted and non-lighted cylindrical models. Designed for easy panel and PCB mounting, it features high heat resistant resin levers for dip soldering and a compact profile width of just 28.3 mm. Suitable for general industrial use, it complies with UL and cUL standards, with ratings up to 5 A at 125 VAC, and 3 A at 250 VAC or 30 VDC. Ideal for control panels, automation, and electronics requiring durable, high-performance momentary switches.
OMRON A165CJM Pushbutton Switch Specifications:
- Operating force max. 4.41 N
- Release force min. 0.29 N
- Total travel approx. 3 mm
- Pretravel max. 2.5 mm
- Lock travel min. 0.5 mm (alternate models)
- Rated voltage: 125 VAC, 250 VAC, 30 VDC
- Rated current: 3 A to 5 A depending on voltage
- Poles: SPDT, DPDT models available
- Material: High heat resistant resin for lever and lamp terminals
- Panel thickness: 0.5 to 3.2 mm (panel with coating ≤ 2 mm)
- Operating temperature: -10°C to +55°C
- Environmental: Humidity 35% to 85%
- Certifications: UL, cUL, EN (for dielectric strength and insulation resistance)
Buy the Buy Omron A16 Pushbutton Switch Part Number A165CJM Online
Purchase the Omron A165CJM pushbutton switch online today and benefit from a high-quality, compact, and reliable switch ideal for various control and automation tasks. Its easy panel and PCB mounting, high heat resistant resin construction, and certifications ensure safety and performance in industrial environments. Whether you need momentary or alternate operation, the switch's versatile features, including LED lighting options, make it suitable for automation panels, control systems, and electronic devices, delivering long-lasting performance and operational reliability.
Buy Omron A165CJM now and experience reliable brief contact closure, easy mounting, and high durability for your electronic applications.
Frequently Asked Questions
Where can I buy OMRON A165CJM?
You can click on the BUY or RFQ button to purchase A165CJM from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A165CJM?
You can download the A165CJM datasheet or visit the OMRON website for support.
Who is the manufacturer of A165CJM?
OMRON
