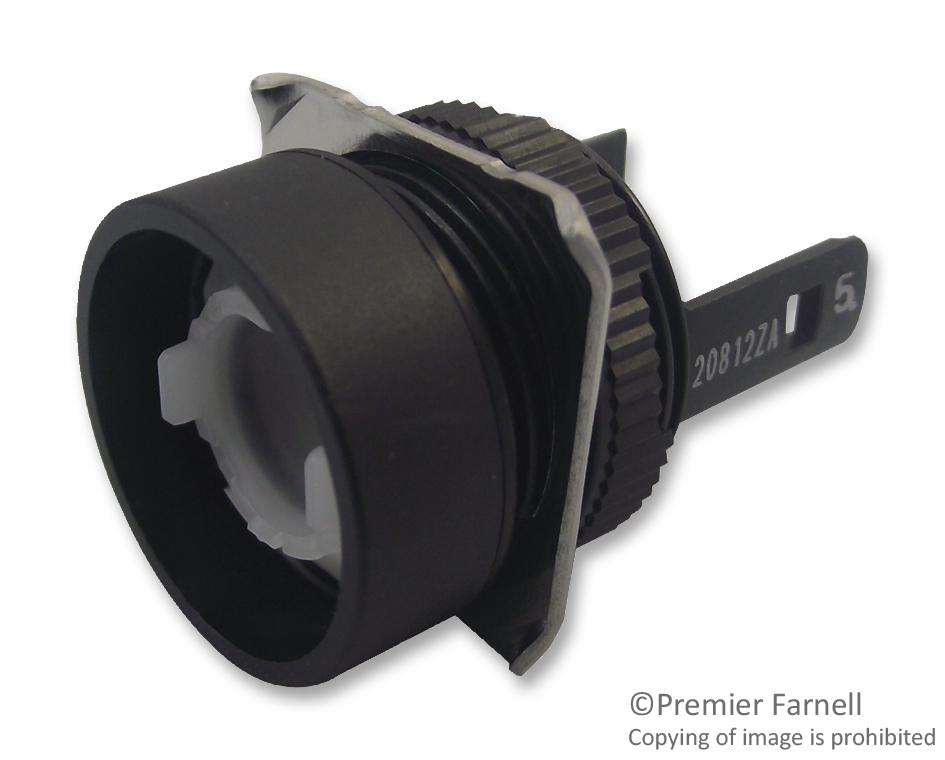

OMRON A165CTM Pushbutton Switch
The A16-P pushbutton switch is a detachable, cylindrical control component available in lighted and non-lighted versions suitable for PCB mounting. Crafted with high heat resistant resin for robust performance, it features easy panel and PCB installation, with a lever designed for effortless mounting and removal. The switch provides clear status indication from the rear of the PCB and has a compact profile of only 28.3 mm width, ideal for space-saving applications. It complies with RoHS standards and offers various configurations, including single and double pole types, rated for general industrial use, with both momentary and maintained operation options suitable for automation systems, control panels, and machinery.
OMRON A165CTM Pushbutton Switch Specifications:
- Operating force: Max. 4.41 N
- Release force: Min. 0.29 N
- Total travel: Approx. 3 mm
- Pretravel: Max. 2.5 mm
- Lock travel (alternate operation): Min. 0.5 mm
- Contact ratings: 5 A at 125 VAC, 3 A at 250 VAC, 3 A at 30 VDC
- Dielectric strength: 2,000 VAC, 50/60Hz for 1 minute
- Insulation resistance: Min. 100 MΩ at 500 VDC
- Operating temperature: -10°C to +55°C
- Ambient humidity: 35% to 85% RH
- Dimensions: Diameter 16 mm, profile width 28.3 mm, height varies with mounting
- Material: High heat resistant resin, copper contact
- Standards: UL, cUL compliant, RoHS
Buy the Buy OMRON A16-P Part Number A165CTM Online
Enhance your control panel with the durable and reliable OMRON pushbutton switch. Designed for easy mounting and removal, it offers high heat resistance and various configurations including lighted and non-lighted options. Its compact profile of only 28.3 mm width makes it ideal for space-constrained industrial environments. Suitable for both momentary and maintained operations, this switch meets international safety standards and RoHS compliance. Order online today to ensure seamless integration into your automation, machinery, or control systems for dependable performance and long service life.
Buy OMRON A16-P part number A165CTM now and experience unmatched reliability and performance for industrial control and automation systems.
Frequently Asked Questions
Where can I buy OMRON A165CTM?
You can click on the BUY or RFQ button to purchase A165CTM from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A165CTM?
You can download the A165CTM datasheet or visit the OMRON website for support.
Who is the manufacturer of A165CTM?
OMRON
