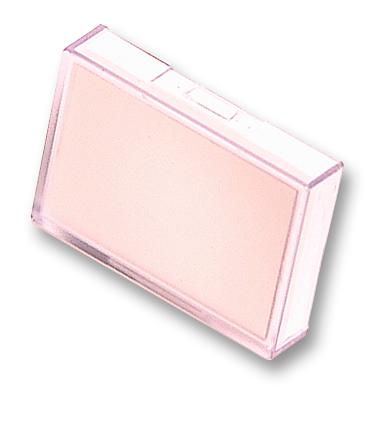

OMRON A165LJW Pushbutton Switch
The A16 series pushbutton switch is a reliable, detachable, cylindrical control switch available in lighted and non-lighted models with PCB terminals. It features a high heat resistant resin lever for easy soldering, simple panel and PCB mounting, and a compact profile width of just 28.3 mm, ideal for space-saving applications. The switch offers multiple ratings, including 5 A at 125 VAC and 3 A at 250 VAC, with both momentary and alternate operation modes. Suitable for industrial automation, control panels, and safety systems, it complies with UL and EN standards for durability and safety, providing exceptional electrical and mechanical performance.
OMRON A165LJW Pushbutton Switch Specifications:
- Operating Temperature: -10°C to +55°C (no icing or condensation)
- Rated Voltage: 125 VAC, 250 VAC, 30 VDC
- Rated Current: 5 A at 125 VAC, 3 A at 250 VAC, 3 A at 30 VDC
- Contact Resistance: 100 mΩ max.
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 2,000 VAC between terminals and ground for 1 minute
- Shock Resistance: 500 m/s² for 3 ms
- Mechanical Durability: 1,000,000 operations min.
- Electrical Durability: 200,000 operations min.
- Operating Force: Max 4.41 N, Release Force: Min 0.29 N
- Total Travel: Approx. 3 mm, Pretravel: Max 2.5 mm
- Mounting Panel Thickness: 0.5 to 3.2 mm
- Certifications: UL, cUL, EN 60947-5-1
- Material: High heat resistant resin for lever, IP40/IP66 options available
Buy the Omron Series A16 Pushbutton Switch: A165LJW
Buy your Omron Series A16 pushbutton switch online now and ensure your automation controls are equipped with durable and space-efficient switches. Perfect for industrial environments requiring reliable momentary or alternate operation with various ratings and IP66/IP40 protection options. Our switches feature high heat resistant levers, easy panel mounting, and a compact profile of just 28.3 mm. Ideal for control panels, safety equipment, and automation systems, they meet UL and EN standards for safety and durability, ensuring long-lasting performance in demanding applications.
Order your Omron Series A16 pushbutton switch today and equip your automation systems with reliable, space-saving control components ready for any environment.
Frequently Asked Questions
Where can I buy OMRON A165LJW?
You can click on the BUY or RFQ button to purchase A165LJW from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A165LJW?
You can download the A165LJW datasheet or visit the OMRON website for support.
Who is the manufacturer of A165LJW?
OMRON
