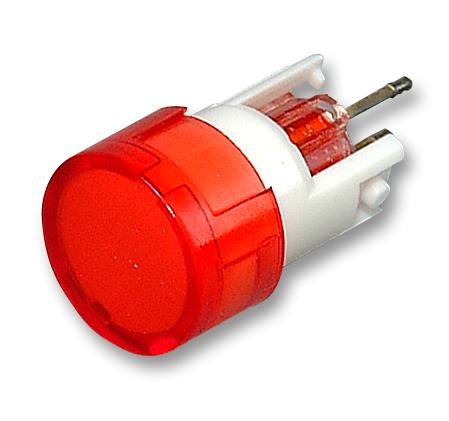

OMRON A3DT500R Lighted Pushbutton Switch
The cylindrical lighted pushbutton switch features a robust 8-mm diameter body with excellent illumination and surface brightness, making it ideal for panel applications. It incorporates a built-in LED lamp with a microload capacity of 0.1 A at 30 VDC, offering reliable operation with stylish design and easy panel mounting using a nut or socket. The switch is RoHS compliant, rated for 30 VDC at 0.1 A, with high durability, IP40 protection, and a step travel of approximately 3.5 mm. Suitable for various control panels requiring indicator functions with dependable performance.
OMRON A3DT500R Lighted Pushbutton Switch Specifications:
- Shape: Cylindrical 8 mm diameter
- Body Material: Plastic (Polycarbonate legend plate)
- LED Ratings: 30 VDC, 0.1 A (minimum load 1 mA at 5 VDC)
- Operating Force: Max 245 N
- Travel: Approx. 3.5 mm
- Protection Rating: IEC IP40
- Operating Temperature: -10°C to +55°C
- Contact Resistance: 100 mΩ max.
- Dielectric Strength: 2,000 VAC, 50/60 Hz for 1 min
- Vibration: 10-65 Hz, 1.5 mm double amplitude
- Shock: 500 m/s² max.
- Weight: Approx. 3 g
- Wiring: Solder terminals, external resistor required
- Finish: RoHS compliant, RoHS
- Mounting: Front panel via mounting nut or socket
- Polarity: LED polarity indicated on back
Buy the Buy OMRON Lighted Pushbutton Switch Part Number A3DT500R Online
Enhance your control panel with this reliable OMRON Lighted Pushbutton Switch, offering excellent illumination and easy mounting. Perfect for industrial automation, machinery, and safety systems, this switch guarantees dependable operation with a robust design and RoHS compliance. Easy to wire with solder terminals and featuring a built-in LED, it improves system visibility. Upgrade your equipment now by purchasing online to enjoy fast delivery and genuine quality assurance from a trusted manufacturer.
Buy OMRON A3DT500R now and experience unmatched reliability and performance in your control and automation systems.
Frequently Asked Questions
Where can I buy OMRON A3DT500R?
You can click on the BUY or RFQ button to purchase A3DT500R from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A3DT500R?
You can download the A3DT500R datasheet or visit the OMRON website for support.
Who is the manufacturer of A3DT500R?
OMRON
