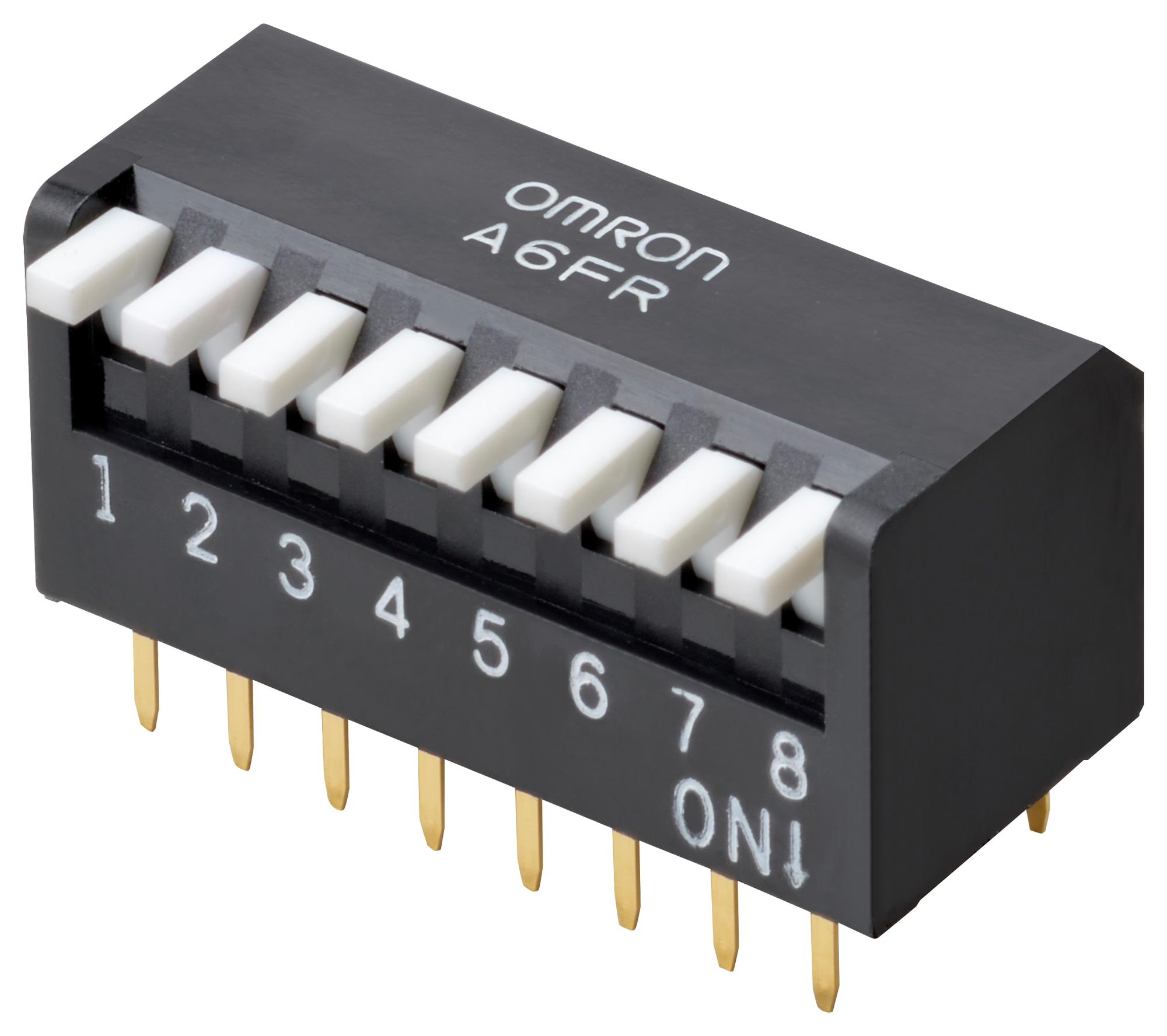

OMRON A6FR0104 Piano DIP Switch
The Piano DIP Switch is a reliable, through-hole mount switch with slide twin contacts ensuring high durability. Available with short or long actuators and multiple poles, it offers excellent insulation resistance and withstands voltage and mechanical stresses. Suitable for various electronic applications, it operates reliably in temperatures from 20°C to 70°C and humidities up to 95%, making it ideal for industrial and control systems requiring precise switching and durability, with RoHS compliance and vibration and shock resistance for operational robustness.
OMRON A6FR0104 Piano DIP Switch Specifications:
- Number of Poles: 2 to 10
- Actuator Type: Short (white), Long (white)
- Operating Voltage: 3.6 VDC
- Ambient Temperature Range: 20°C to +70°C
- Humidity Range: 35% to 95%
- Insulation Resistance: 100 MQ min at 250 VDC
- Contact Resistance: Max 200 MQ
- Dielectric Strength: 500 VAC for 1 min
- Vibration Resistance: 10 to 56 Hz, 1.5-mm double amplitude
- Shock Resistance: Min 300 m/s²
- Electrical Durability: Min 1,000 operations
- Degree of Protection: IEC 1P40
- Operating Force: 0.29 to 9.8 N
- Weight: 0.83 g to 3.18 g depending on pole count
- Dimensions (mm): Short Actuator Length: 9.18-26.96, PCB Dimensions vary with pole count
- RoHS Compliant
Buy the Omron Series Piano DIP Switch: A6FR0104
Order the Omron Piano DIP Switch A6FR0104 online today to enjoy highly reliable switching with multi-pole options, slide twin contacts, and durable construction. Designed for industry-grade applications, this switch offers excellent insulation, vibration, and shock resistance, operating efficiently from 20°C to 70°C and humidity levels up to 95%. Its RoHS compliance ensures environmentally safe manufacturing, making it ideal for control panels, automation systems, and electronic devices requiring secure, precise, and long-lasting switches. Buy now for dependable performance and seamless integration.
Buy Omron Series Piano DIP Switch A6FR0104 now and experience unmatched reliability and precise switching for industrial and electronic control systems.
Frequently Asked Questions
Where can I buy OMRON A6FR0104?
You can click on the BUY or RFQ button to purchase A6FR0104 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A6FR0104?
You can download the A6FR0104 datasheet or visit the OMRON website for support.
Who is the manufacturer of A6FR0104?
OMRON
