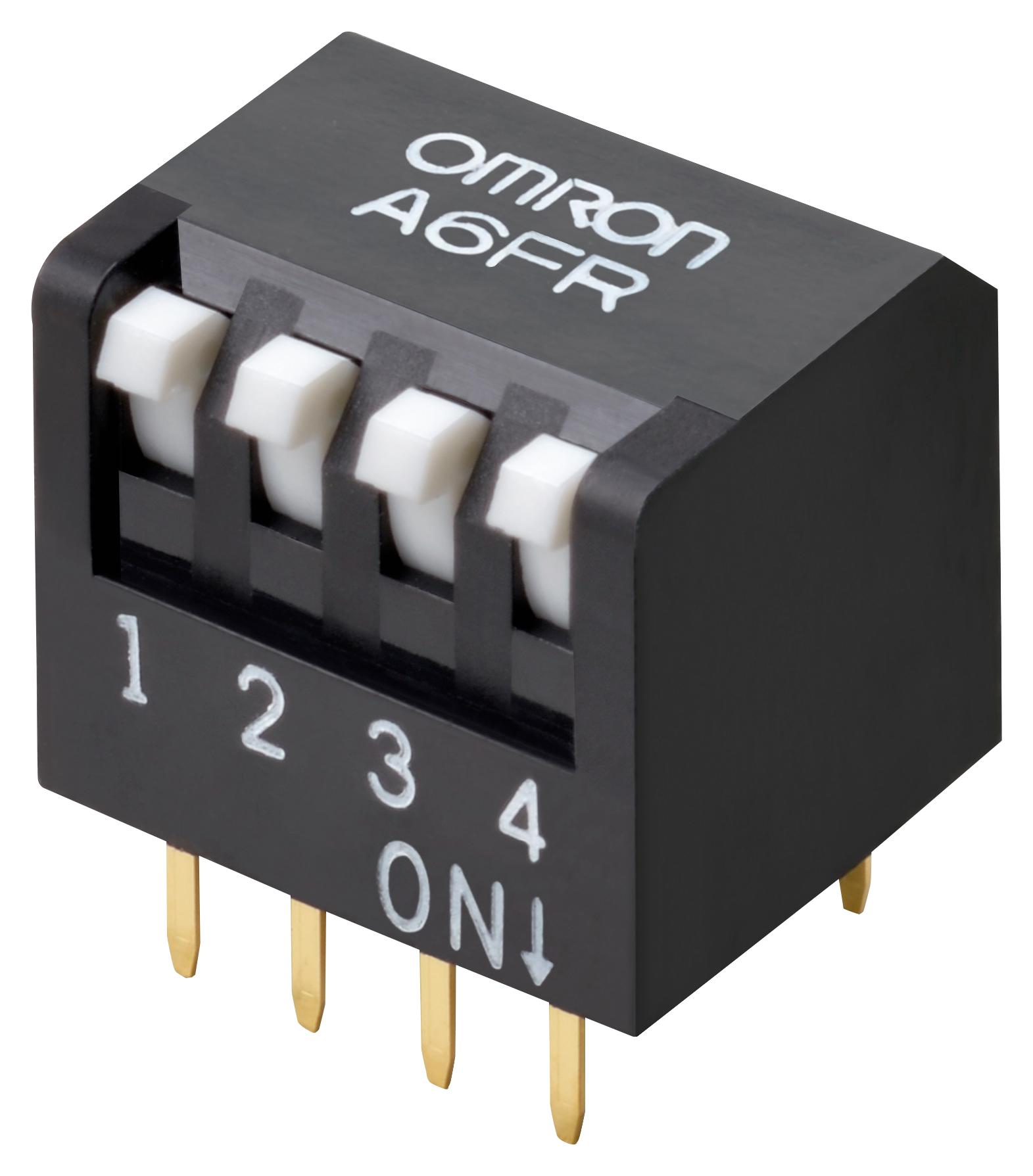

OMRON A6FR4101 Piano DIP Switch
The Piano DIP Switch by OMRON features a slide twin contacts mechanism for high reliability, available with short and long actuators in various pole configurations from 2 to 10 poles. Designed for through-hole mounting, it is RoHS compliant and suitable for diverse electronic applications, offering stable switching performance, insulation resistance of 100 MQ min., and dielectric strength of 500 VAC for 1 min. It operates within an ambient temperature range of 20 to +70°C, with ratings at 3.6 VDC and 1,000 switching cycles durability, making it ideal for control systems requiring dependable manual toggling.
OMRON A6FR4101 Piano DIP Switch Specifications:
- Number of poles: 2 to 10 poles
- Actuator types: short (white) and long (white)
- Mounting: Through-hole
- RoHS Compliant
- Operating voltage: 3.6 VDC
- Ambient temperature: 20 to +70°C
- Operating humidity: 35% to 95%
- Insulation resistance: 100 MQ min.
- Dielectric strength: 500 VAC for 1 min
- Durability: 1,000 operations minimum
- Contact resistance (initial): 200 MQ max.
- Vibration resistance: 10 to 56 Hz, 1.5-mm amplitude
- Shock resistance: 300 m/s² minimum
- Weight: 0.83 g (2 poles), 1.39 g (4 poles), 1.99 g (6 poles), 2.69 g (8 poles), 3.18 g (10 poles)
Buy the Buy OMRON DIP Switch Part Number AGFR4101 Online
Enhance your electronic control projects with the high-reliability OMRON Piano DIP Switch, featuring twin contacts for dependable switches, available for 2 to 10 poles with various actuator options. Designed for through-hole mounting, RoHS compliant, and capable of withstanding extreme temperatures from 20°C to 70°C with a humidity range of 35% to 95%. Ensure safe operation with insulation resistance of 100 MQ, dielectric strength of 500 VAC, and durability of over 1,000 cycles. Easily order online today and secure dependable switching performance for your systems.
Order your OMRON SeriesAGFR4101 DIP Switch today and ensure reliable manual toggling in your control systems.
Frequently Asked Questions
Where can I buy OMRON A6FR4101?
You can click on the BUY or RFQ button to purchase A6FR4101 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A6FR4101?
You can download the A6FR4101 datasheet or visit the OMRON website for support.
Who is the manufacturer of A6FR4101?
OMRON
