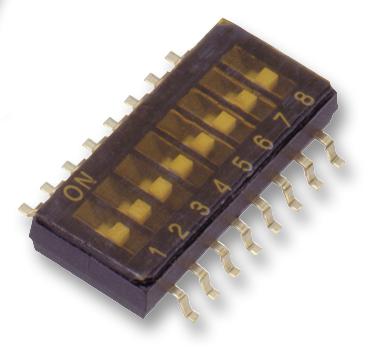

OMRON A6H0102 Surface-mount DIP switch
This is a DIP switch with a tape-sealed construction and an actuator type of DIP. It features a 10-pole contact configuration, with a contact rating of 25mA. The switch has a minimum electrical service life of 1,000 operations and a mechanical service life of 1,000 operations. It uses surface-mount technology (SMT) for termination. With an ultra-low profile of just 1.55 mm, it saves space by reducing mounting area by 63% compared to conventional models. Suitable for compact electronic systems, RoHS compliant, and available in embossed taping models for automated placement.
OMRON A6H0102 Surface-mount DIP switch Specifications:
- Rating: 25mA at 24 VDC
- Insulation Resistance: 100 MOmin at 100 VDC
- Contact Resistance: 200 mΩ max initial
- Dielectric Strength: 300 VAC for 1 min
- Vibration Resistance: 10 to 65 Hz, 1.5-mm double amplitude
- Shock Resistance: 300 m/s² min.
- Mechanical Life: 1,000 operations min.
- Electrical Life: 1,000 operations min.
- Operating Temperature: -40 to 85°C (no icing or condensation)
- Storage Temperature: -40 to 85°C
- Operating Humidity: 35% to 90%
- Operating Force: 30 to 500 grams
- Enclosure Rating: IP40 equivalent
- Physical Dimensions: Width varies with poles - 6.31 mm for 4 poles, 8.85 mm for 6 poles, 11.39 mm for 8 poles, 13.93 mm for 10 poles. Height: 1.55 mm, Depth: 4.0 mm typical
- Mounting: Surface-mount, SMT compatible
- Sealed models available with washable seal tape
- RoHS Compliant
Buy the Omron Series A6H Compact Surface-Mount DIP Switch: A6H0102
Experience the space-saving design and dependable performance of the Omron surface-mount DIP switch. With a low profile of just 1.55 mm and a 10-pole configuration, it is ideal for compact electronic systems requiring reliable switching and RoHS compliance. Suitable for applications where space is limited, this switch offers durability with 1,000 mechanical and electrical life cycles. Easy to mount and available in washable seal tape models, it ensures long-lasting performance for industrial and electronic device manufacturing.
Get Omron A6H today—built for space-efficient and durable electronic switching solutions.
