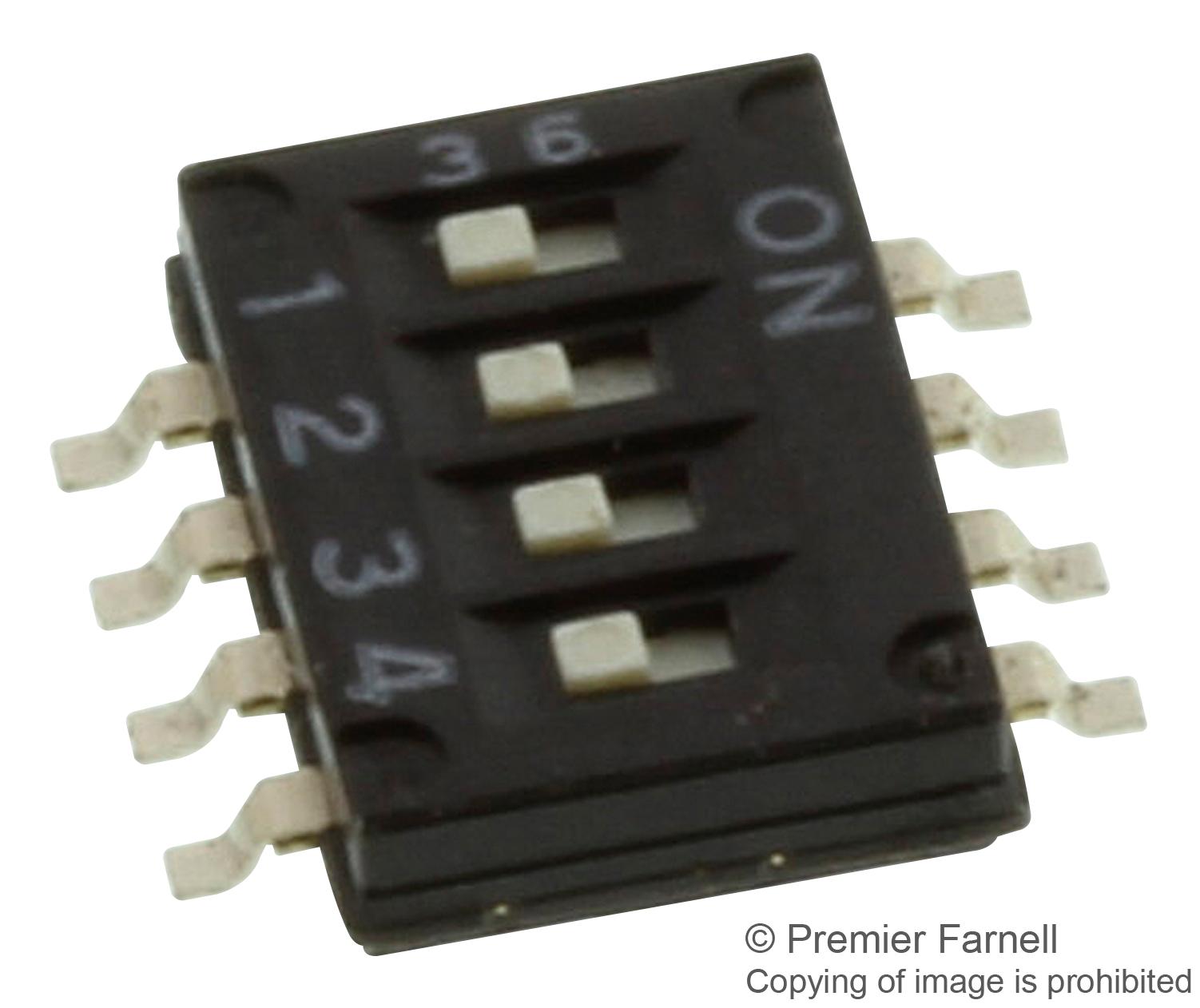

OMRON A6H4101 DIP Switch
DIP switch with actuator type for unsealed construction, featuring 4-pole contact configuration. It has a contact rating of 25mA, with a minimum electrical and mechanical service life of 1,000 operations. The switch uses surface-mount technology (SMT) for termination. Designed for compact applications, it offers high durability and RoHS compliance, making it suitable for industrial control systems. The switch can be washed with care for maintenance in sealed models, with a low profile of only 1.55 mm, reducing mounting space substantially while ensuring reliable operation in various environments.
OMRON A6H4101 DIP Switch Specifications:
- Contact Rating: 25mA at 24 VDC
- Mechanical Life: 1,000 operations min.
- Electrical Life: 1,000 operations min.
- Insulation Resistance: 100 MΩ min. at 100 VDC
- Contact Resistance: 200 mΩ max. (initial)
- Dielectric Strength: 300 VAC for 1 min
- Operating Temperature: -40 to 85°C
- Storage Temperature: -40 to 85°C
- Operating Humidity: 35% to 90%
- Operating Force: 30 to 500 grams
- Enclosure Rating: IP40
Buy the Omron Series A6H DIP Switch: A6H4101
Purchase the Omron series A6H DIP switch online today to ensure precise control and space-efficient mounting in your industrial applications. This ultra-low profile, surface-mount switch features 4 poles with a rated current of 25mA, providing durability up to 1,000 operations while giving you the flexibility of washable models or sealed variants. Easy to handle and install, the switch is RoHS compliant and suitable for high-density control panels, automation, and other embedded systems where space is limited yet performance cannot be compromised.
Order your Omron series A6H miniature surface-mount DIP switch today and equip your control panel with high-quality, space-saving reliability.
Frequently Asked Questions
Where can I buy OMRON A6H4101?
You can click on the BUY or RFQ button to purchase A6H4101 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A6H4101?
You can download the A6H4101 datasheet or visit the OMRON website for support.
Who is the manufacturer of A6H4101?
OMRON
